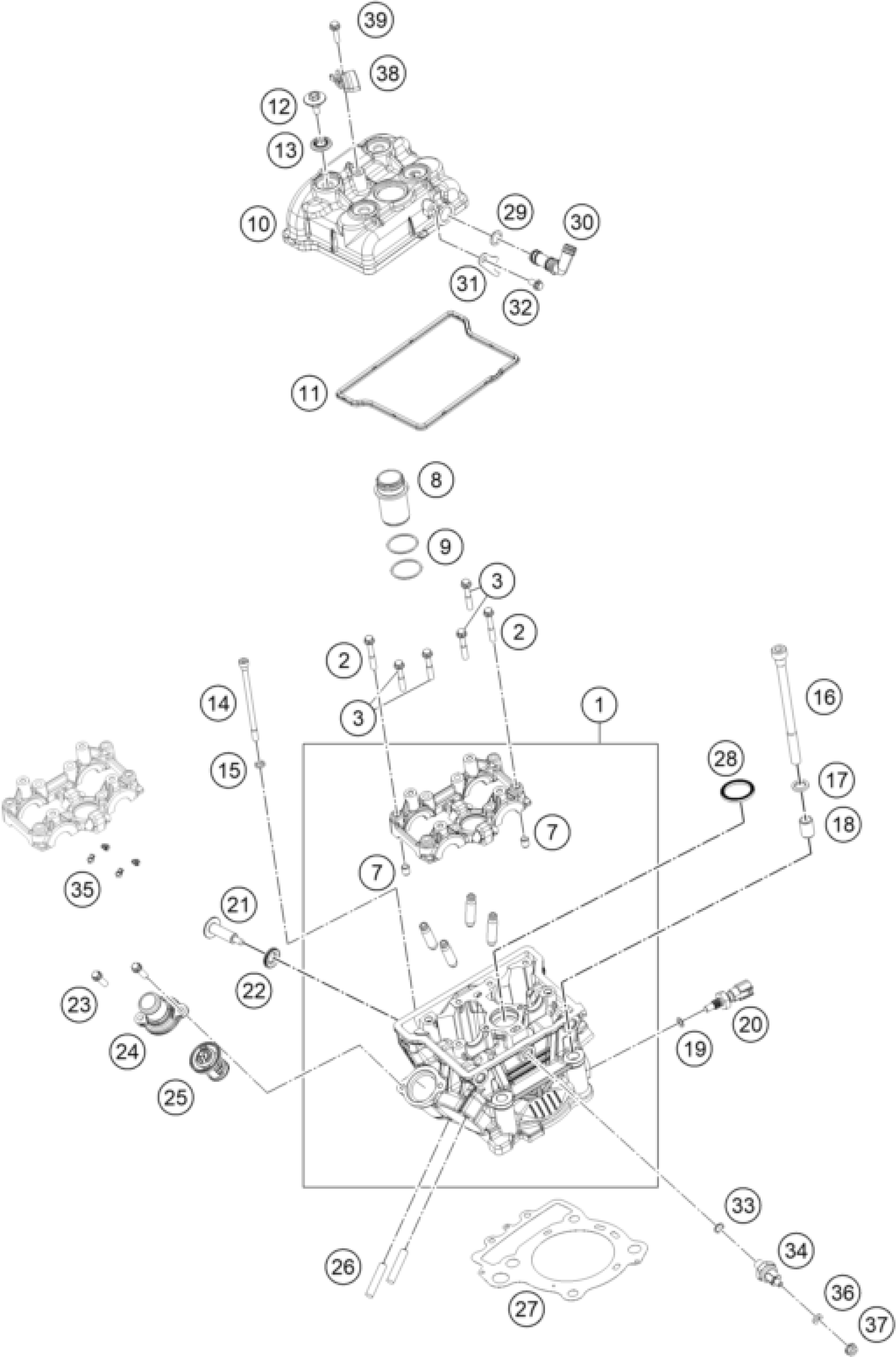

KTM 390 DUKE KTMR2R, blue 2024 CYLINDER HEAD Diagram

#

Description

Price

7

Dowel 8x6.3x10

J800000601002

Unavailable

3

Hexagon screw M6X35

J025060359

Unavailable

2

BOLT-FLANGE-KAE ST-F DIA-06 L-

J900000604003

Unavailable

8

SPARK PLUG SHAFT

90236074000

Unavailable

9

O-RING 29,8X1,9

J770029819

Unavailable

20

TEMPERATURE SENSOR

90135047000

Unavailable

19

O-ring 7.65x1.78

J770000817800

Unavailable

25

UNIT THERMOSTAT

96335017000

Unavailable

24

COVER THERMOSTAT KT23.25.26 (J

9623501900024

Unavailable

23

HH COLLAR SCREW M6X20

J025060201

Unavailable

27

GASKET HEAD CYLINDER

96330036000

Unavailable

26

STUD M8

90136020001

Unavailable

11

GASKET COVER HEAD CYLINDER

96336053000

Unavailable

10

Valve cover

96336052000C1

Unavailable

30

PIPE BREATHER

96336082000

Unavailable

29

O RING

J770001224000

Unavailable

31

PLATE STOPPER

96236052020

Unavailable

32

BOLT FLANGE SMALL-M6X1XL10XDAC

J900000601004

Unavailable

28

GASKET SPARK PLUG SHAFT

90236054000

Unavailable

16

SOCKET HEAD SCREW M10X144

J912101449

Unavailable

17

WASHER 11,2X20X2

90130080000

Unavailable

12

VALVE COVER SCREW

90136052020

Unavailable

13

WASHER SEAL

J790001102300

Unavailable

14

SOCKET HEAD SCREW M6X102

J912061023

Unavailable

15

WASHER 7X11X2

J125070003

Unavailable

18

DOWEL D14

90130003007

Unavailable

21

screw

J900000604601

Unavailable

22

WASHER SEAL

J790001102300

Unavailable

34

OIL PRESSURE SENSOR

90138091000

Unavailable

33

O-RING

90138091001

Unavailable

35

OIL JET

90130064000

Unavailable

36

Spring ring B6

J127060001

Unavailable

37

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

1

Cylinder head cmpl.

9633602003324

Unavailable

38

clamp

96339028000

Unavailable

39

bolt flanged M6x1

J900000601406

Unavailable
