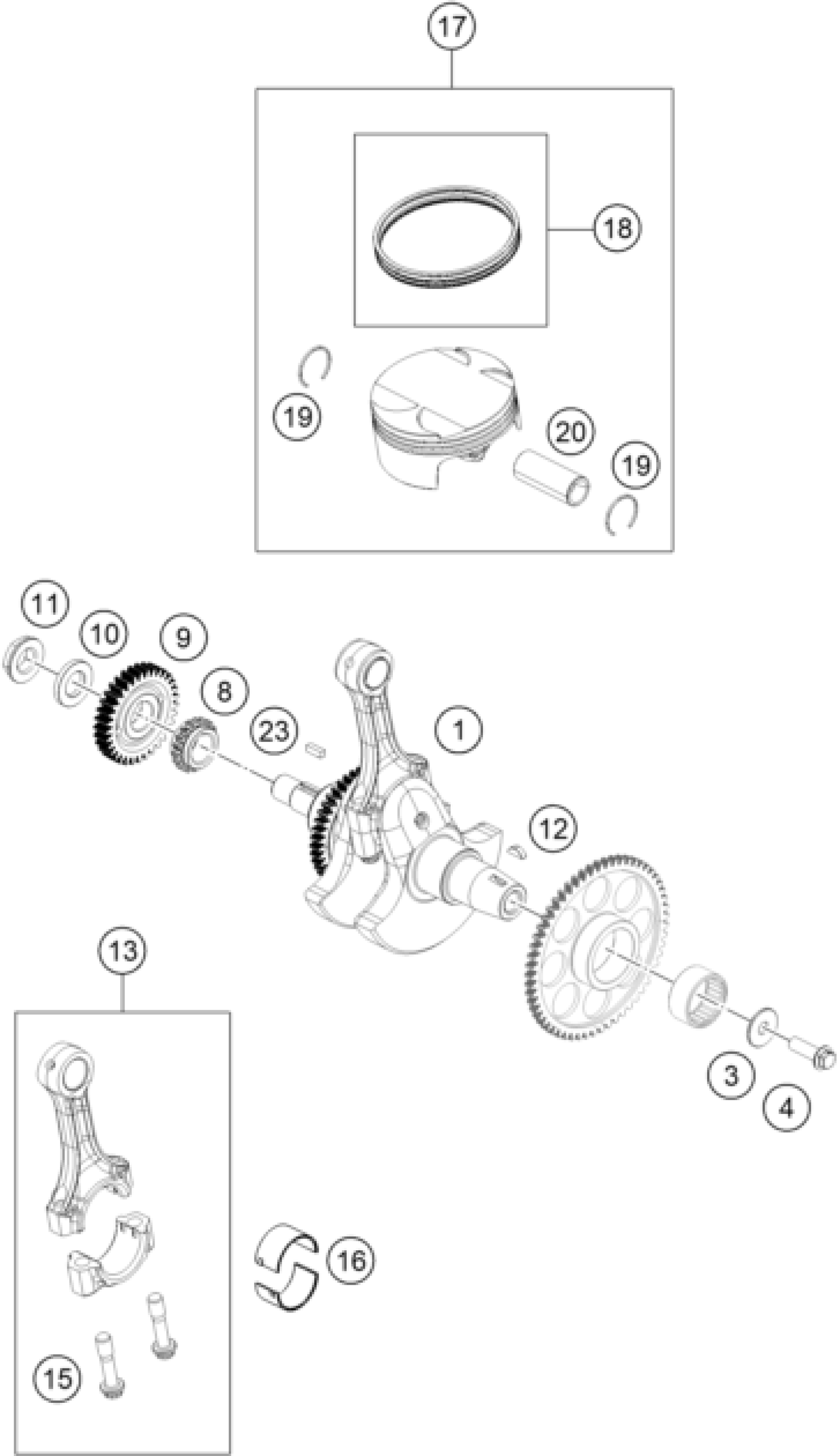

KTM 390 DUKE KTMR2R, blue 2024 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

ASSEMBLY CRANKSHAFT

96330018033

$417.19

3

WASHER PLAIN-ID 12.3XOD 31XT 6

J690001260000

$1.86

4

BOLT ASSEMBLY

J900001205000

$7.00

8

SPROCKET CRANKSHAFT

90236014000

$11.96

9

GEAR PRIMARY DRIVE

96332023033

$17.48

10

WASHER PLAIN-ID 16.2XOD 29.5XT

J690001640000

$1.67

11

NUT M16X1,5

90230029000

$5.23

12

KEY WOODRUFF

J950001300400

$1.49

15

BOLT HEXALOBULAR FLANGED M9X1

J900000903800

$3.54

16

BUSH BIMETALLIC

96330016000

Unavailable

17

PISTON D89

90230007200

$309.66

18

PISTON RINGS CPL.

90230030010

$113.13

19

RING SNAP

90230074000

$4.11

20

PISTON PIN

90230033000

$23.74

23

Woodruff key 4X4X12

J888040150

$2.05

13

CONROD ASSEMBLY

96330015033

$65.72
