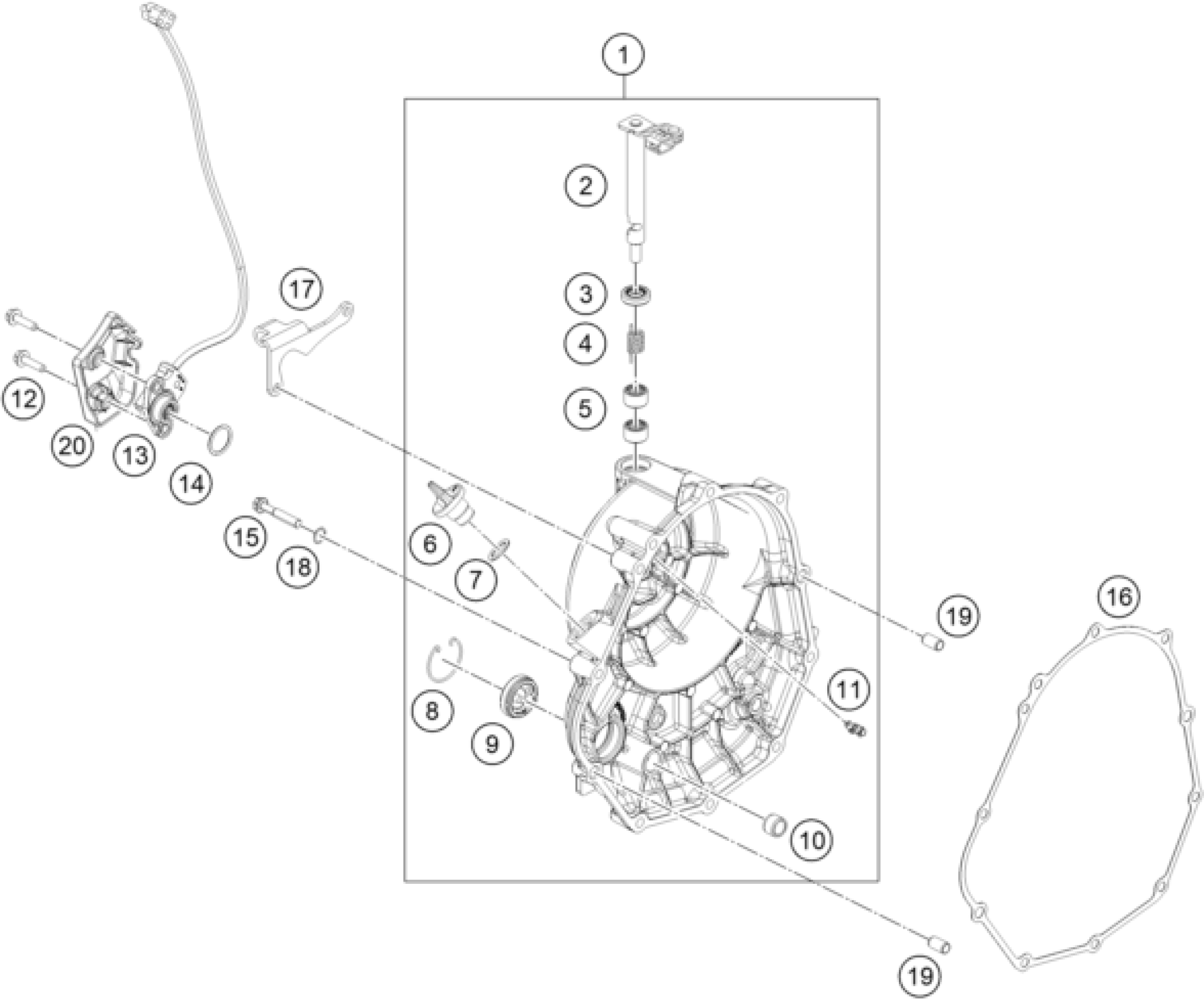

KTM 390 DUKE KTMR2R, blue 2024 CLUTCH COVER Diagram

#

Description

Price

1

COVER CLUTCH

96330001000C1

Unavailable

11

OIL JET

90130064000

Unavailable

5

needle bearing

90132050000

Unavailable

3

OIL SEAL RING

90132051000

Unavailable

2

SHAFT ASSEMBLY CLUTCH

96332048033

Unavailable

4

SPRING TORSION

J520000800100

Unavailable

6

CAP FILLER OIL

96330020000

Unavailable

7

O-ring 14x2,4

J770001424000

Unavailable

9

WINDOW GAUGE OIL

96330095000

Unavailable

8

CIRCLIP

J710003315000

Unavailable

10

BUSH STARTER SHAFT

90240018000

Unavailable

16

gasket cover clutch

96330027000

Unavailable

13

Shift shaft sensor

94334051000

Unavailable

14

O-RING 17,7X2,1 MM

J770017721

Unavailable

12

bolt flanged-m5x0.8

J000150502000

Unavailable

15

FLANGED BOLT M6X35 WS8

J025060350

Unavailable

17

bracket cable clutch

96302090010

Unavailable

18

COPPER GASKET

J603061001

Unavailable

19

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

20

COVER SENSOR

96334051010

Unavailable
