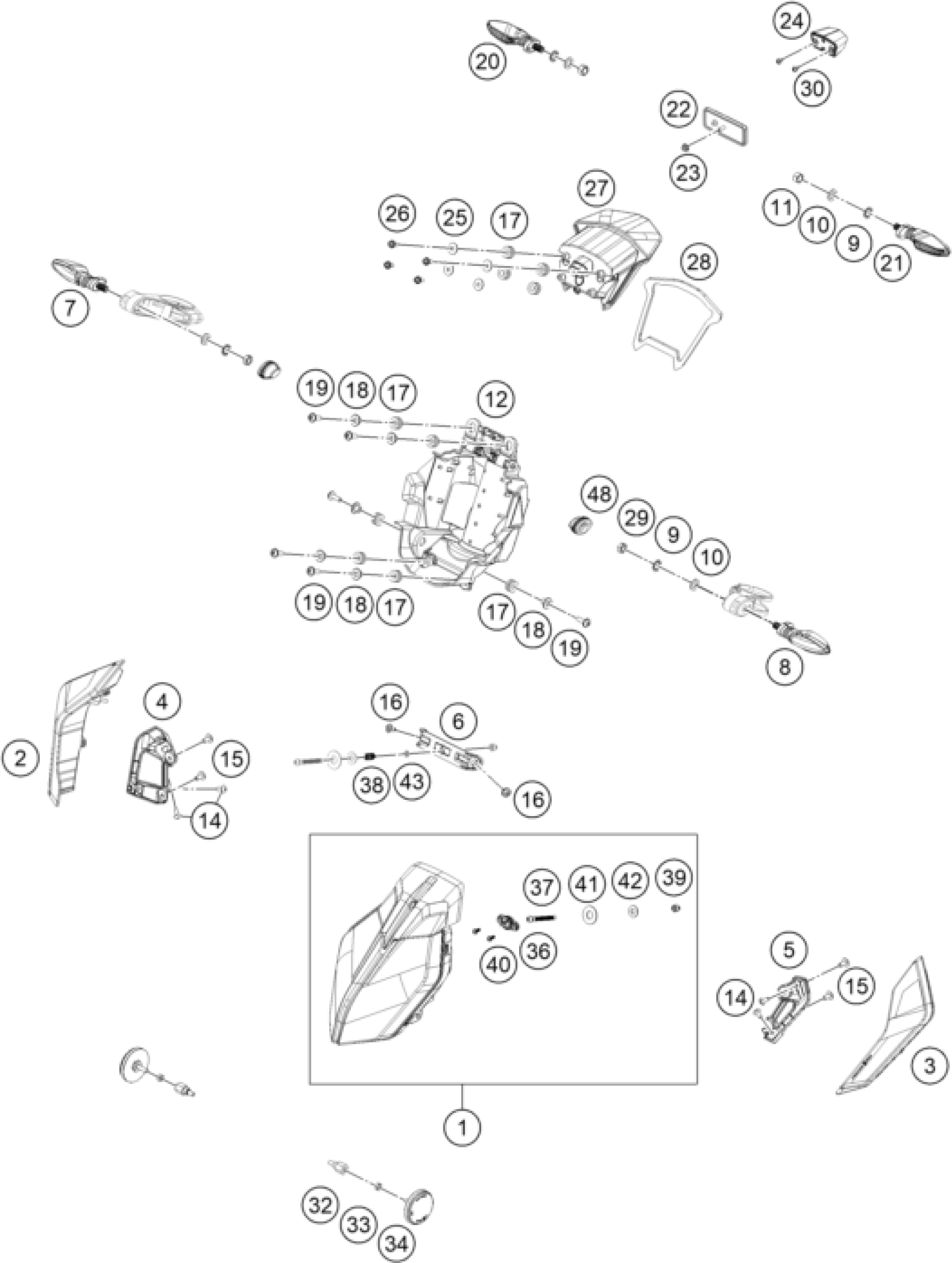

KTM 390 DUKE, blue 2025 LIGHTING SYSTEM Diagram

#

Description

Price

21

FLASHER CPL. RE. L/S

90114026000

Unavailable

20

FLASHER CPL. RE. R/S

90114025000

Unavailable

9

Toothed washer, M10

J06797100183

$1.49

10

Washer M10

J125100009

$1.49

11

Nut hex M10x1.25

J910001000800

Unavailable

29

Nut hex thin-M10x1.25

J934100006

$1.49

8

Indicator front lh

93014025000

Unavailable

7

Indicator front rh

93014026000

$37.39

27

Rear Light

96314040000

Unavailable

28

rubber support taillight

96314043000

Unavailable

25

Washer, license plate holder s

93308015010

$1.49

17

Rubber bushing

93014017000

$1.49

26

HH-COLLAR SCREW M5X12

J025050126

$1.49

1

Headlight

96314001000

Unavailable

3

Position light left

96311004040

Unavailable

2

Position light right

96311004030

Unavailable

14

Linsenkopf-Schraube M5x12

J900000501202

Unavailable

12

Headlight carrier front

96314010000

Unavailable

5

position light holder Left

96314004020

Unavailable

4

position light holder right

96314004010

Unavailable

6

headlight adjuster plate

96314002000

Unavailable

15

Roundhead screw, M6x12

J900000601204

Unavailable

18

Collar head lamp holder MTG

93014018100

$1.49

19

AH oval head screw M6x19

J900000601900

$1.49

16

Screw button head step M5x6.5

J900000500900

$1.49

24

License plate lighting

28114047000

Unavailable

22

REFLECTOR REFLEX

96314045000

Unavailable

23

nut hex flanged M5x0.8

J910000501100

Unavailable

30

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

$1.49

34

Side reflector

94512082000

$7.10

33

NUT HEX THICK

J910000600505

$1.49

32

Reflector holder

94512082010

$2.61

40

Screw M4X14

93014024110

$1.49

36

bush

93014024100

$1.49

38

Spring 1 x 8.5 x 30

93014001010

Unavailable

39

Dome nut (m6x1)

J910000601200

Unavailable

37

Aiming bolt (m6)

J900000605400

Unavailable

41

Washer plain

J690001210000

Unavailable

42

Washer plain

J690000710001

Unavailable

43

washer plain-ID 6.2XOD 9.5XTHK

J125062006

Unavailable

48

GROMMET INDICATOR

96314025010

Unavailable
