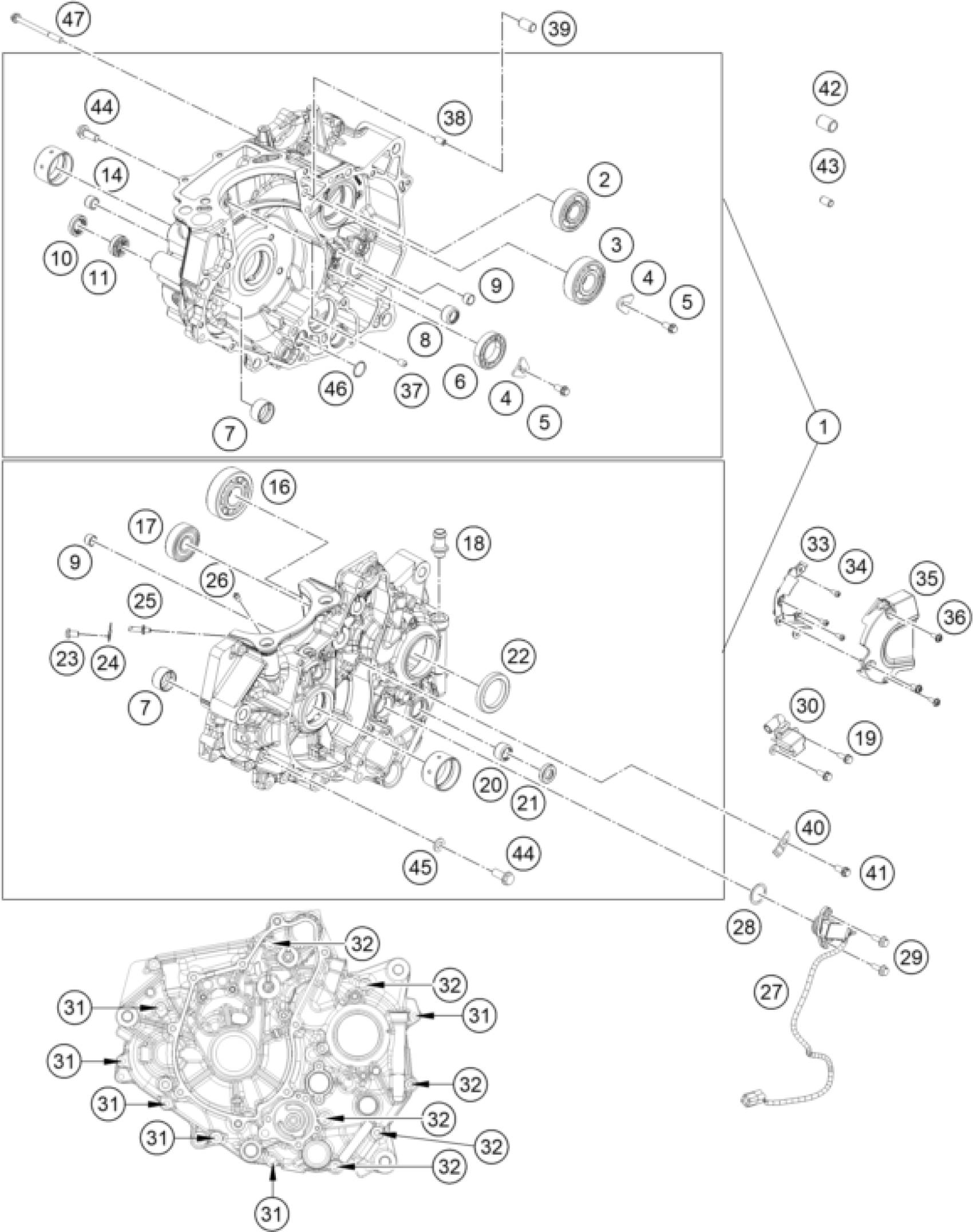

KTM 390 DUKE, blue 2025 ENGINE CASE Diagram

#

Description

Price

1

Crankcase CPL

9633000014424

Unavailable

2

Grooved ball bearing 6303

J410001701402

Unavailable

3

DEEP GROOVE BALL BEARING 6304

J625063040

$13.55

4

STOPPER BALANCER SHAFT BEARING

90230079000

$1.49

5

Hex collar screw, M6x12

J01665060123S

$11.68

6

Bearing ball

90130004004

$14.58

7

bush bimetallic

J440002201300

$4.01

8

NEEDLE ROLLER BEARING HK1312

J618131912

$5.23

9

BUSH SHIFT RAIL

90234030000

$2.05

10

SHAFT SEALING RING 12X24X5,5

J760122455

$7.75

11

Shaft seal ring 12x24x6

0760122406

$5.60

14

BUSH STARTER SHAFT

90240018000

$4.11

16

bearing roller

J400002201600

$41.60

17

bearing ball id15xod42xt13xc3l

J410001501300

$17.10

18

Pipe breather

90230022000

$3.08

19

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

20

NEEDLE ROLLER BEARING HK1312

J618131912

$5.23

21

Seal - oil

90130003004

$2.05

22

Seal Oil

J760003447000

$2.89

23

Oval head screw M6X10 precoat

0738060101S

$1.49

24

PLATE STOPPER

96330066000

$1.49

25

NOZZLE JET OIL

96330064000

$2.70

26

OIL NOZZLE

90130164000

$27.57

27

SENSOR INDICATOR GEAR

96311023000

$61.33

28

O RING

J770002024001

Unavailable

29

BOLT FLANGED M5X0.8

J900000501604

Unavailable

30

SENSOR ASSEMBLY PICK UP

96339034000

$10.65

31

FLANGED BOLT M6X35 WS8

J025060350

$1.49

32

bolt flanged M6x70

J900000607002

$1.49

33

guard chain

96330047000

$5.04

34

SCREW PAN CROSS M6X12 PH SS

J005060123S

$1.49

35

Cover Rear LH

96303096000

$5.98

36

SCREW SOCKET M6X1

J900000601607

$1.49

37

OIL NOZZLE

90238029003

$1.49

38

OIL NOZZLE

90230066300

$1.49

39

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

40

RETAINER GEAR STARTER

96340022020

Unavailable

41

Hex collar screw M6X14

J025060141

$1.49

42

DOWEL D14

90130003007

$2.05

43

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

44

Hexagonal bolt M8x20

J900000802004

Unavailable

45

plain washer

J690000815000

$1.49

46

O-ring

J780001515000

$1.49

47

bolt flanged M6x1

J900000607003

$1.49
