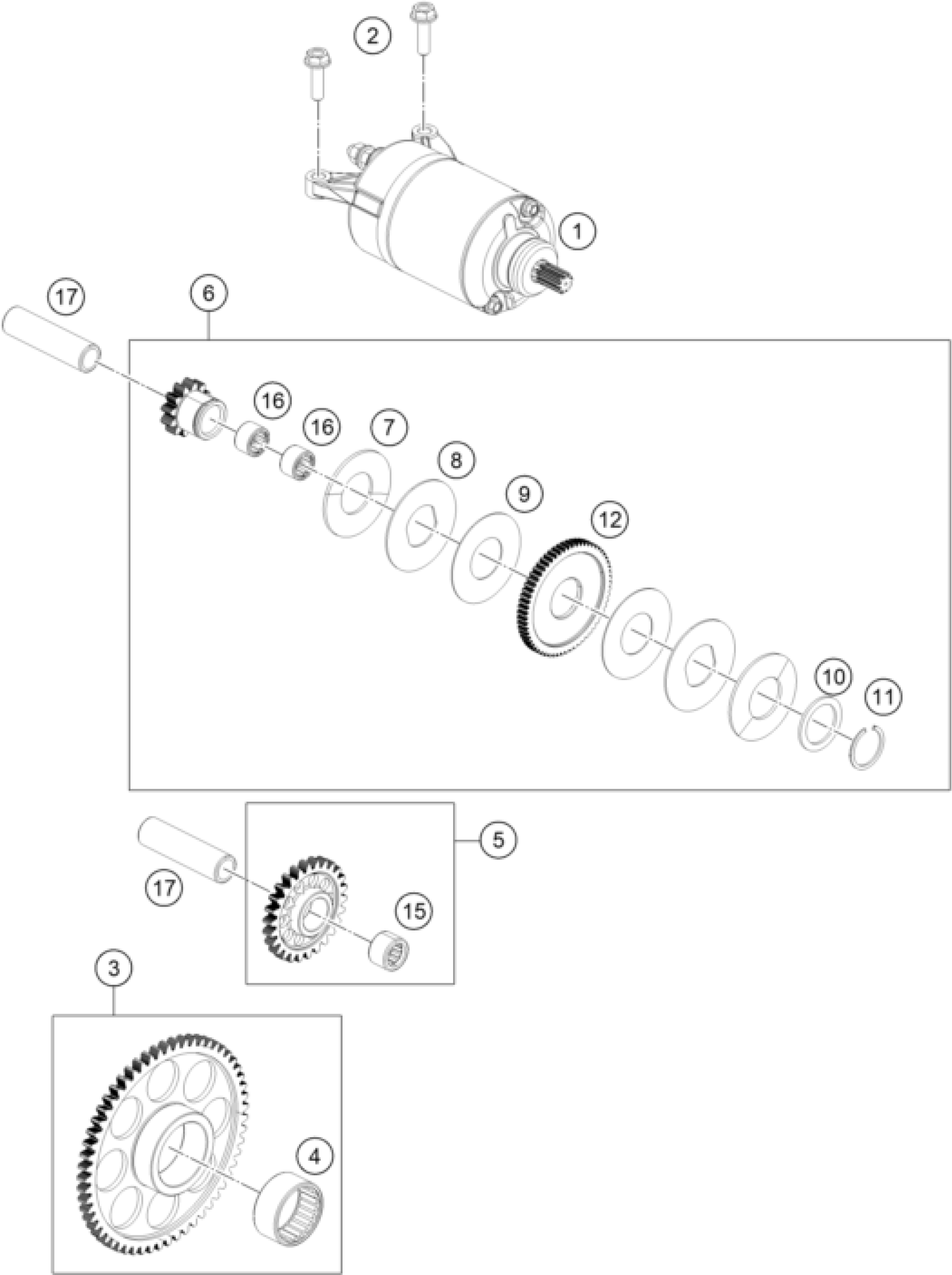

KTM 390 DUKE, blue 2025 ELECTRIC STARTER Diagram

#

Description

Price

1

motor starter

96340001000

$154.27

2

BOLT FLANGED M6X1

J900000602203

Unavailable

3

gear assembly clutch starter

96340020033

$36.55

4

BEARING NEEDLE ROLLER

J430002801600

$10.84

5

Starter idler gear cmpl.

96340022133

Unavailable

6

Torque limiter cmpl.

96340016133

Unavailable

7

CONICAL WASHER

90240023006

$2.05

8

WASHER

90240023005

$2.05

9

PAD FRICTION

90240023004

$7.94

10

SHIM 1.8 mm THK

J690002218000

Unavailable

10

SHIM 2.0 mm THK

J690002220000

Unavailable

10

SHIM 2.2 mm THK

J690002222000

Unavailable

10

SHIM 2.4 mm THK

J690002224000

Unavailable

10

SHIM 2.6 mm THK

J690002226000

Unavailable

10

SHIM 2.8 mm THK

J690002228000

Unavailable

11

RING SNAP INPUT

J710002012000

$1.49

12

GEAR STARTER COUNTER

90240023002

$29.16

15

Needle bushing

J430001201200

Unavailable

16

needle bearing

90132050000

$5.23

17

SHAFT STARTER COUNTER

96340023000

Unavailable
