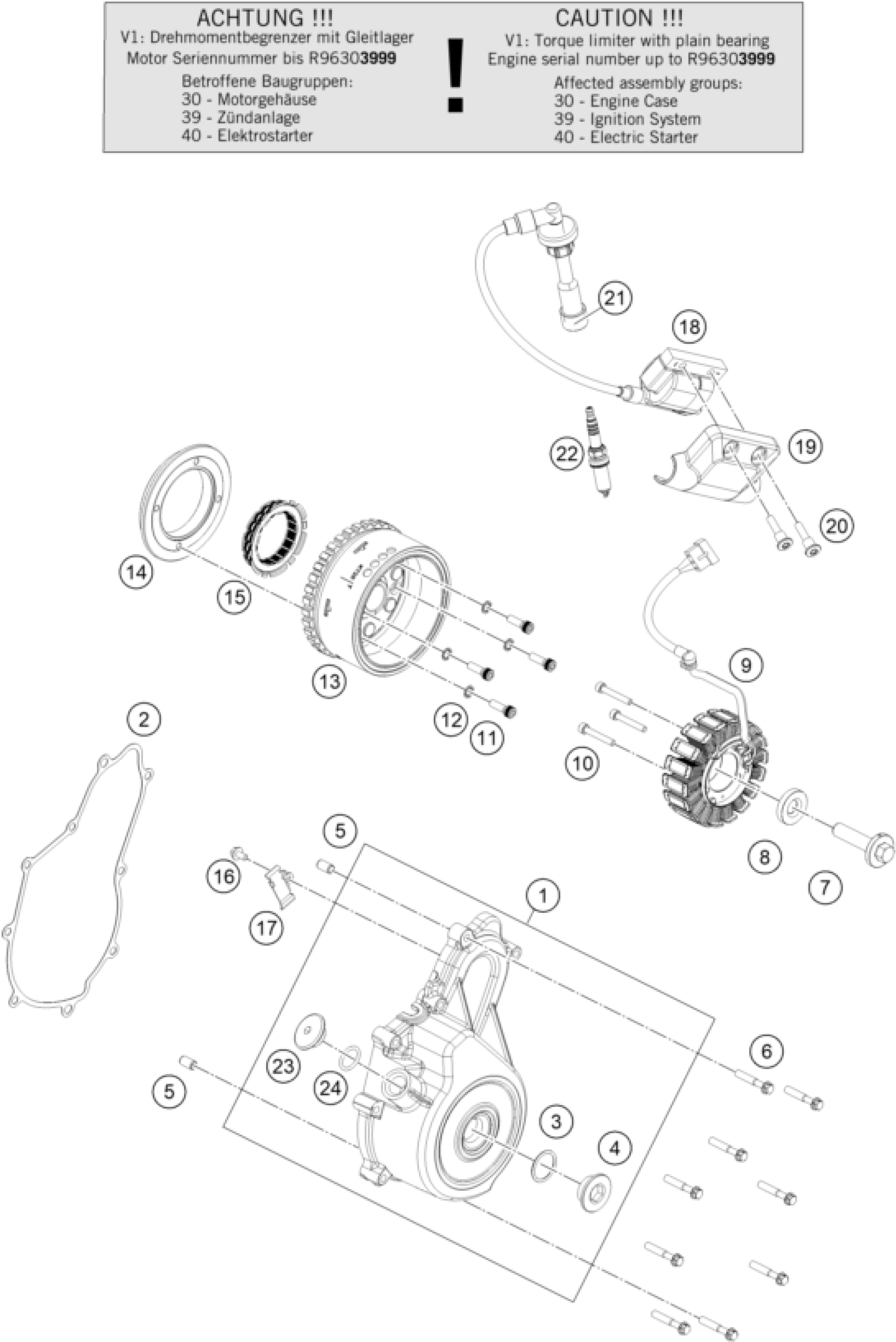

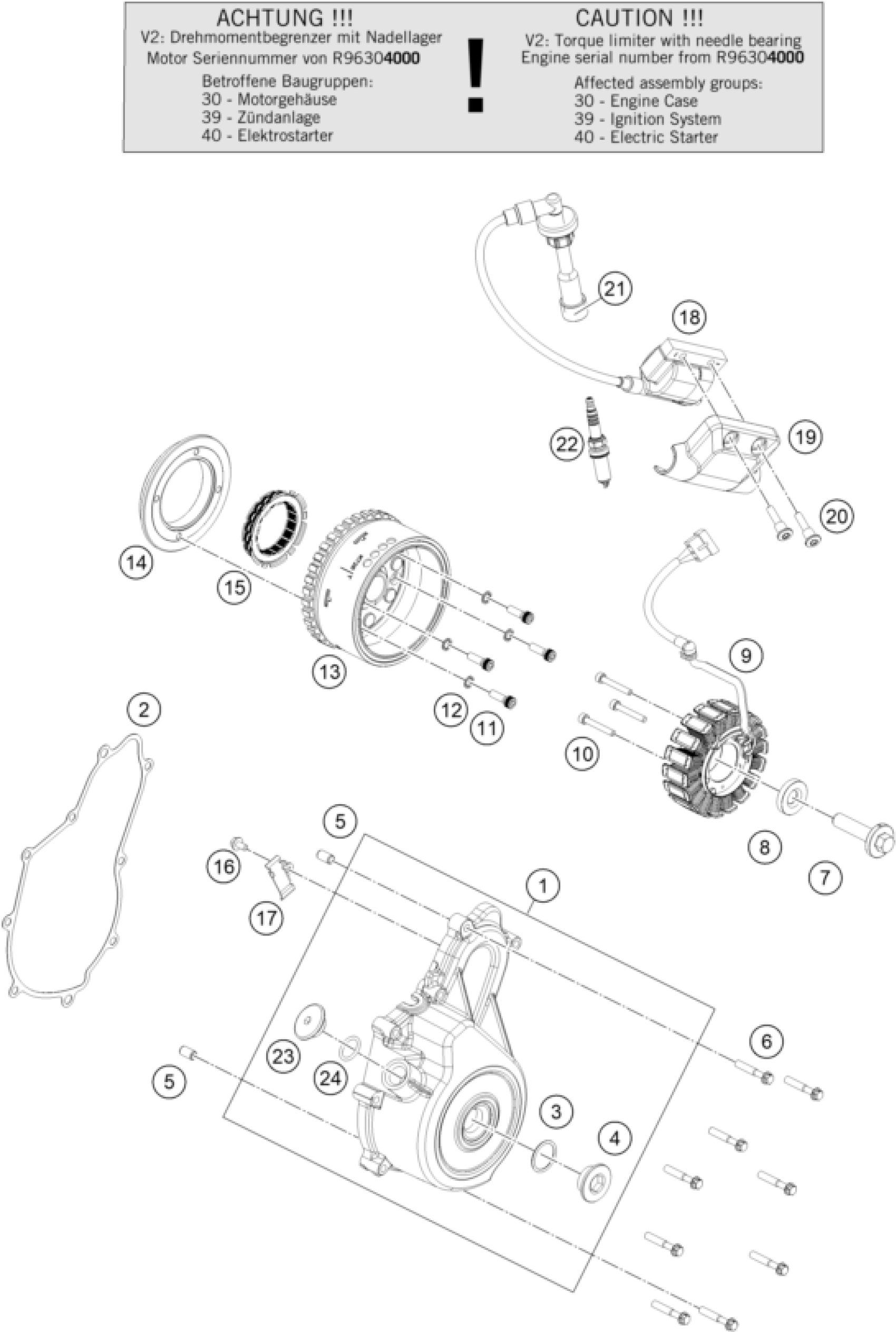

KTM 390 DUKE, blue 2024 IGNITION SYSTEM Diagram

#

Description

Price

1

COVER MAGNETO ASSLY JP541267 K

96330002133C1

Unavailable

2

GASKET COVER MAGNETO

96330040000

Unavailable

3

O-RING 24X2,5

J770024015

Unavailable

4

PLUG SCREW M24X1,5

90230094000

Unavailable

5

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

6

FLANGED BOLT M6X35 WS8

J025060350

Unavailable

7

BOLT ASSEMBLY

J900001205000

Unavailable

8

WASHER PLAIN-ID 12.3XOD 31XT 6

J690001260000

Unavailable

9

STATOR ASSEMBLY

96339004000

Unavailable

10

AH SCREW M5X35 SELF LOCKING

J912050353S

Unavailable

11

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

12

TOOTHED WASHER M6

J797060003

Unavailable

13

ROTOR ASSEMBLY

96339005000

Unavailable

14

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

15

FREEWHEEL CLUTCH

90140026000

Unavailable

16

BOLT FLANGED M5X0.8

J900000501003

Unavailable

17

BRACKET MAGNETO

96339029000

Unavailable

18

coil assembly ignition

96339006000

Unavailable

19

COVER COIL IGNITION

96339006050

Unavailable

20

SCREW SOCKET STEP M6X1

J900000603400

Unavailable

21

RUBBER GASKET SPARK PLUG

90239090001

Unavailable

22

Spark plug BOSCH VR6NEU M12X1.

93839093000

Unavailable

23

Screw plug, OT marking

93839010100

Unavailable

24

O-RING 15,8X2,4

J770015824

Unavailable
