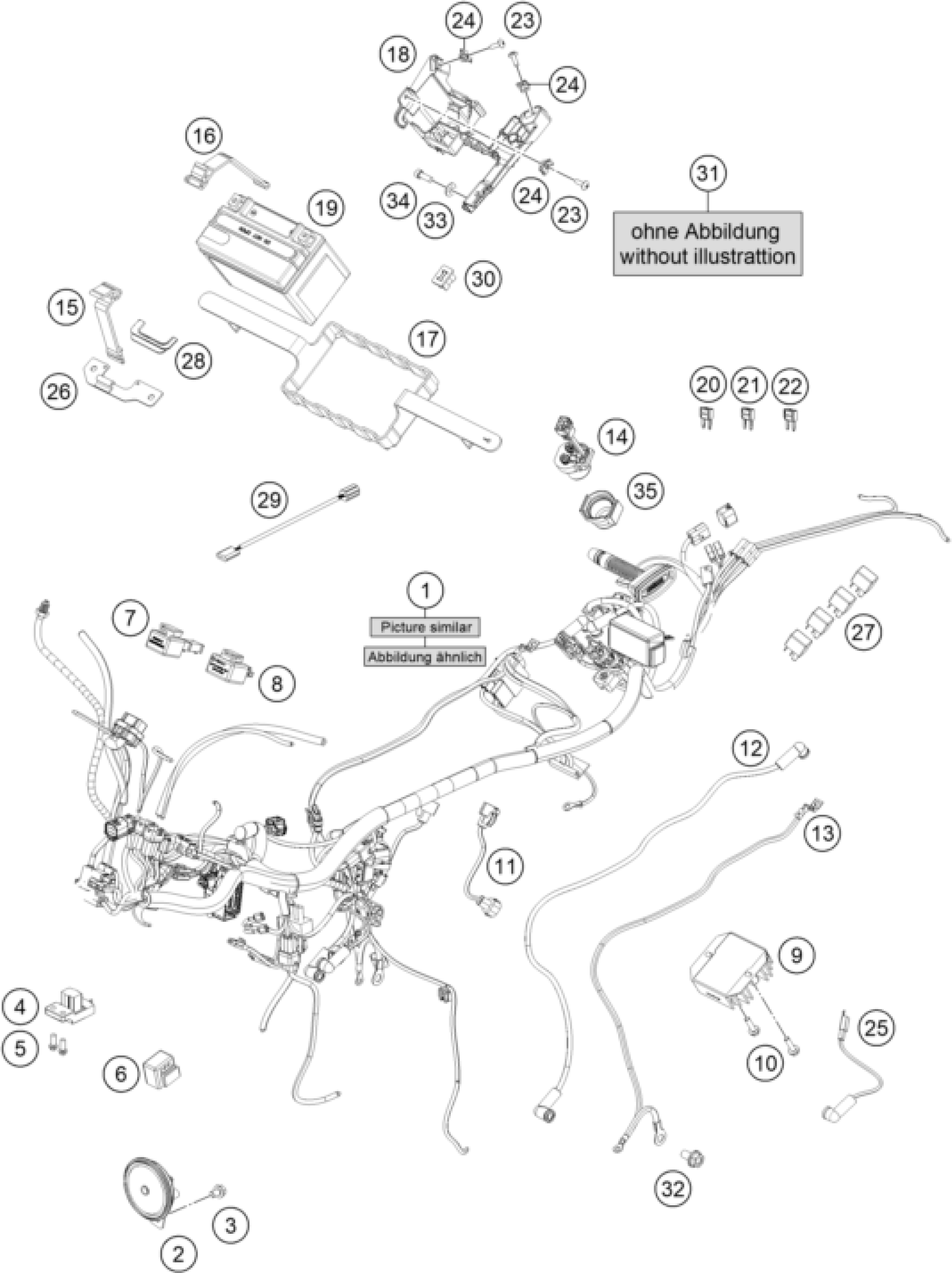

KTM 390 DUKE, black w/o DRL 2023 WIRING HARNESS Diagram

#

Description

Price

1

HARNESS WIRING

94311075100

Unavailable

2

Horn

93011060100

Unavailable

3

HH COLLAR SCREW M8X12 SW12

J025080123

Unavailable

4

rollover sensor

93541088000

Unavailable

5

HH COLLAR SCREW M6X16 SW8

J025060169

Unavailable

6

resistor

93811043000

Unavailable

7

Transil unit

28111096000

Unavailable

8

indicator relay

90511030000

Unavailable

9

Voltage regulator

28111034000

Unavailable

10

BOLT FLANGED-M6X1XL26XCL 10.9X

J900000602600

Unavailable

11

Cable

93041080050

Unavailable

12

Starter cable 6MM

93011059000

Unavailable

13

Ground wire

93011197000

Unavailable

14

Starter relais

93011058000

Unavailable

15

Band batterie

93011055060

Unavailable

16

Battery rubber holder

93011055000

Unavailable

17

BOX BATTERY

93011054000

Unavailable

18

Cross brace cover

93008018060

Unavailable

19

BATTERY 12V/8AH

90611053000

Unavailable

20

FUSE 10A 07

75011088010

Unavailable

21

FUSE 15A 07

75011088015

Unavailable

22

FUSE 30A

75011088030

Unavailable

23

FLAT HEAD SCREW M5X12 PH

J005050123

Unavailable

24

CLIP NUT M5

90108050001

Unavailable

25

Pigteil oil pressure switch

93038091000

Unavailable

26

Bracket battery band

93011056100

Unavailable

27

relay (interlock)

90611057000

Unavailable

28

protector

93011026000

Unavailable

29

PIGTAIL PH-3 FUEL PUMP

93511084000

Unavailable

30

Rubber grommet

93008078000

Unavailable

31

Cable earth ABS

93042033000

Unavailable

31

wiring harness temperatur sens

93811099000

Unavailable

32

Hex collar screw M6X12

J025060122

Unavailable

33

Washer M5

J125050008

Unavailable

34

bolt socket-M5X0.8XL16XCL8.8XB

J912050166

Unavailable

35

Rubber damper starter relay

93311058000

Unavailable
