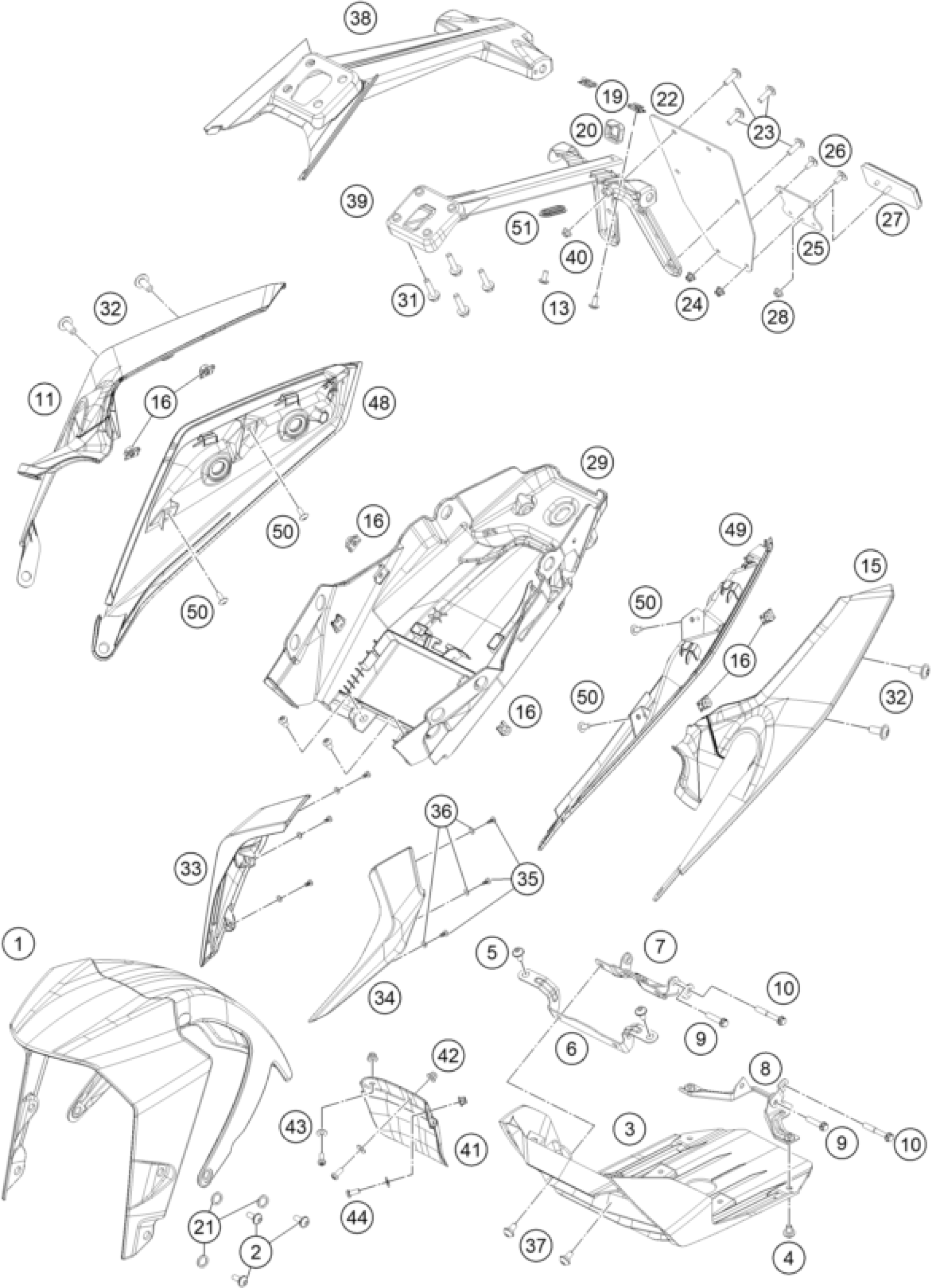

KTM 390 DUKE, black - B.D. 2023 MASK, FENDERS Diagram

#

Description

Price

1

D390 DOM FR FENDER ASSLY LIQ

93008010033BK

Unavailable

2

Panhead screw with shoulder

J031050161

$1.49

3

Under-engine fairing 250/390

93308020000

$28.79

4

Screw M6X1X9

93008020060

$2.05

5

SOCKET HEAD BOLT M6X12

90508006001

$1.49

6

Bracket belly pan front

93008021000

$7.38

7

Bracket belly pan rear

93008021020

$6.07

8

Bracket belly pan rear

93008021120

$11.30

9

Hexagon srew M6X14

J025060144

$1.49

10

Hexagon screw M6X35

J025060359

$1.49

11

SEAT COWL UPR RH JP181007 EB O

93008039000EB

Unavailable

13

Lens head screw M5X12

J031050123

$1.49

15

SEAT COWL UPR LH JP181006 EB O

93008018010EB

Unavailable

16

CLIP NUT M5

90108050001

$2.05

19

Clip Nut M5

93008083010

$1.49

20

Protection rubber

93008015010

$1.49

21

Washer nylon

93009059000

$1.49

22

REAR FENDER EXT.

90808016000

$3.08

23

AH SCREW M6X1X20

90508006003

$4.11

24

HEX NUT M5 AF8

90102031010

$1.49

25

REFLECTOR MOUNTING

90514044000

$2.05

26

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

27

REFLECTOR

90514045000

$3.08

28

HH COLLAR NUT

90204060001

$1.49

29

Tail end lower part

93008019000

$45.25

31

Hex collar screw M6X22

J025060226

$1.49

32

AH SCREW M8X20

90508008001

$1.49

33

KTM DUKE MY17 SIDE MASK RH EB

93008001000EB

$9.34

34

KTM DUKE MY17 SIDE MASK LH EB

93008024000EB

$9.34

35

Lens head screw M3,5X10

J981030101

$1.49

36

Washer plain small 4.5X8X0.5XB

J125040003

$1.49

37

Screw M6X1X13

93008040000

$1.49

38

License plate holder support,

93008015150

$21.03

39

Licence plate holder support

93008015300

$40.85

40

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

48

SEAT COWL LOWER RH

93008019030

$27.48

49

SEAT COWL LOWER LH

93008019020

$26.64

50

Lens head screw M5X12

J031050123

$1.49

41

FLAP FENDER FRONT

94108010020

Unavailable

42

Nut nyloc FL-M5X0.8

93014095000

$1.49

43

WASHER D=5,5 BLACK

90514007010

$1.49

44

Oval head screw M5X12

J005050121

$1.49

51

grommet

93008015060

$1.49
