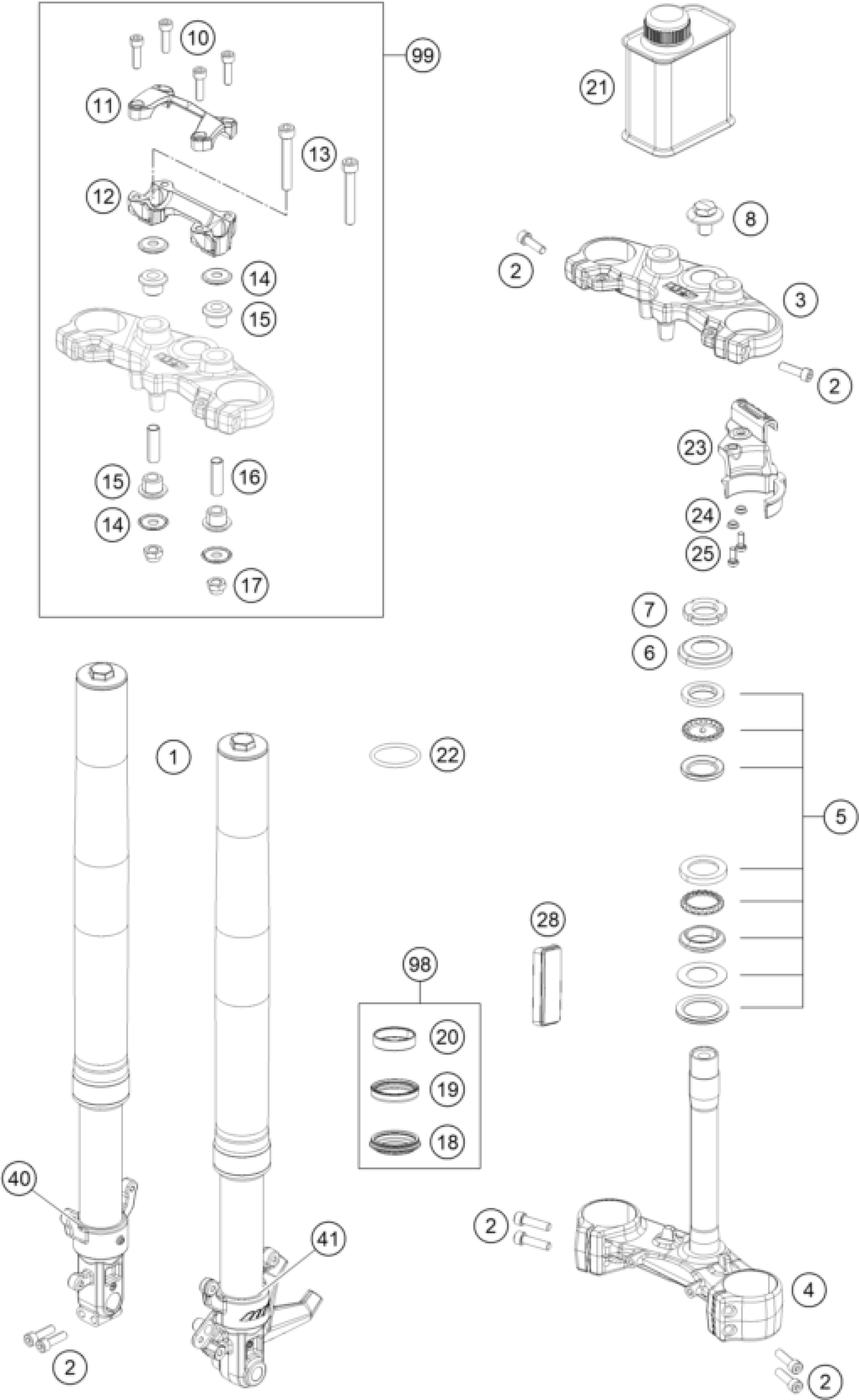

KTM 390 DUKE BLACK ABS CKD 2015 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK LEG L/S CPL.

90201001000

Unavailable

1

FORK LEG R/S CPL.

90201002000

Unavailable

2

BOLT SOCKET M8X1,25X30L

90101031007

Unavailable

3

TOP TRIPLE CLAMP

90101034035

Unavailable

4

BOT. TRIPLE CLAMP CPL.

90101032100

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

Unavailable

7

adjusting ring steering head

90101036000

Unavailable

8

CLAMP SCREW STEERING HEAD

90101136000

Unavailable

10

SPECIAL SCREW M8X29 SS

90101044000

Unavailable

11

HANDLEBAR CLAMP

90101038000

Unavailable

12

HANDLEBAR SUPPORT D=26MM

90101039000

Unavailable

13

AH SCREW M10X1,25X64

J022100643

Unavailable

14

WASHER 10,5X32X2

90101042000

Unavailable

15

RUBBER BUSHING

90101040000

Unavailable

16

SPACER TUBE

90101041000

Unavailable

17

SELF L. NUT M10X1,25 H11 WS17

J982101253

Unavailable

18

Dirt scarper SKF 43mm black

43570624

Unavailable

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

20

Guide bushing 43x47x12

43570618

Unavailable

21

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

22

O-ring 43x2 NBR70 siliconized

40140024

Unavailable

23

HOSE CLAMP

90113055000

Unavailable

24

sleeve for hose clamp

90113055010

Unavailable

25

AH SCREW M6X15 10.9

J021060156

Unavailable

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

Unavailable

41

AXLE CLAMP CPL. WITH PIPE L/S

90101006144

Unavailable

98

REP. KIT FORK KPL.

90101000010

Unavailable

99

HANDLEBAR SUPPORT KIT

90101039010

Unavailable

28

side reflector, front

90212582001

Unavailable
