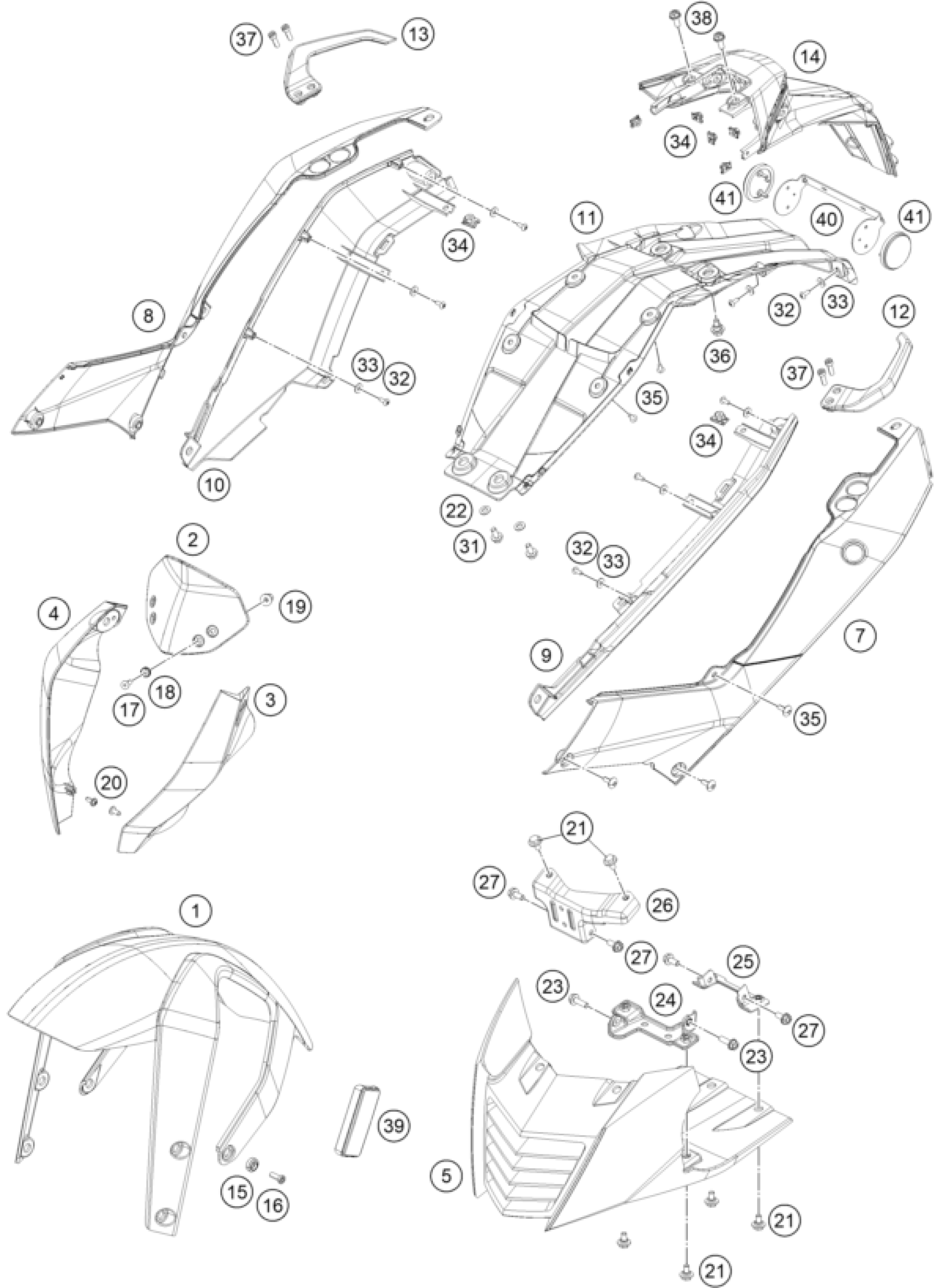

KTM 390 DUKE BLACK ABS BAJ.DIR. 14 <2014> MASK, FENDERS Diagram

#

Description

Price

1

FRONT FENDER BLACK

9010801000033

$58.24

2

WIND SHIELD

90108008000

$19.81

3

MASK SPOILER L/S BLACK

9010800200030

$17.01

4

MASK SPOILER R/S BLACK

9010800300030

$17.01

5

BELLY PAN

90208020000

$25.80

7

SIDE COVER L/S TOP

9010804100047

$65.35

8

SIDE COVER R/S TOP

9010804200047

$65.35

9

SIDE COVER BOTTOM L/S

90108043000

$23.74

10

SIDE COVER BOTTOM R/S

90108044000

$21.68

11

REAR END LOWER PART

90208515010

$30.10

12

GRIP L/S CPL.

90112008033

$18.78

13

GRIP R/S CPL.

90112009033

$18.60

14

REAR FENDER

90208515000

$36.83

15

BUSHING FRONT FENDER

90108010050

$4.11

16

AH SCREW M6X16

J912060163

$1.49

17

AH SCREW M5X20

J019050201

$1.49

18

WASHER FOR WINDSHIELD

90108008050

$5.23

19

WELL NUT M5 L16

90108008060

$2.05

20

EJOT PT screw K50x12

0081050121

$2.05

21

SPECIAL SCREW M6X12X3

90108076000

$2.05

22

PLAIN WASHER 6,5X13X1

J125060003

$1.49

23

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

24

BRACKET BELLY PAN MIDDLE MTG

90208020001

$5.23

25

BRACKET BELLY PAN REAR MTG

90208020003

$2.05

26

BRACKET BELLY PAN TOP MTG

90208020002

$5.98

27

HH COLLAR SCREW M6X14 SW8

J025060143

$1.49

31

HH COLLAR SCREW M6X14 SW8

J025060143

$1.49

32

CROSS PAN SCREW 4X12 PH

J081040121

$1.49

33

WASHER 4,5X12X1MM

J021040003

$1.49

34

CLIP NUT M5

90108050001

$2.05

35

CHEESE-HEAD SCREW M5X16

J031050163

$1.49

36

SPECIAL SCREW M6X12,5 WS8

90108015050

$2.05

37

AH SCREW M8X27

J020080274

$2.05

38

HH COLLAR SCREW M6X14 WS10

J025060149

$1.49

39

side reflector, front

90212582001

$5.23

41

SIDE REFLECTOR REAR

90212582000

$5.23

40

BRACKET SIDE REFLECTOR REAR

90212581000

$6.91
