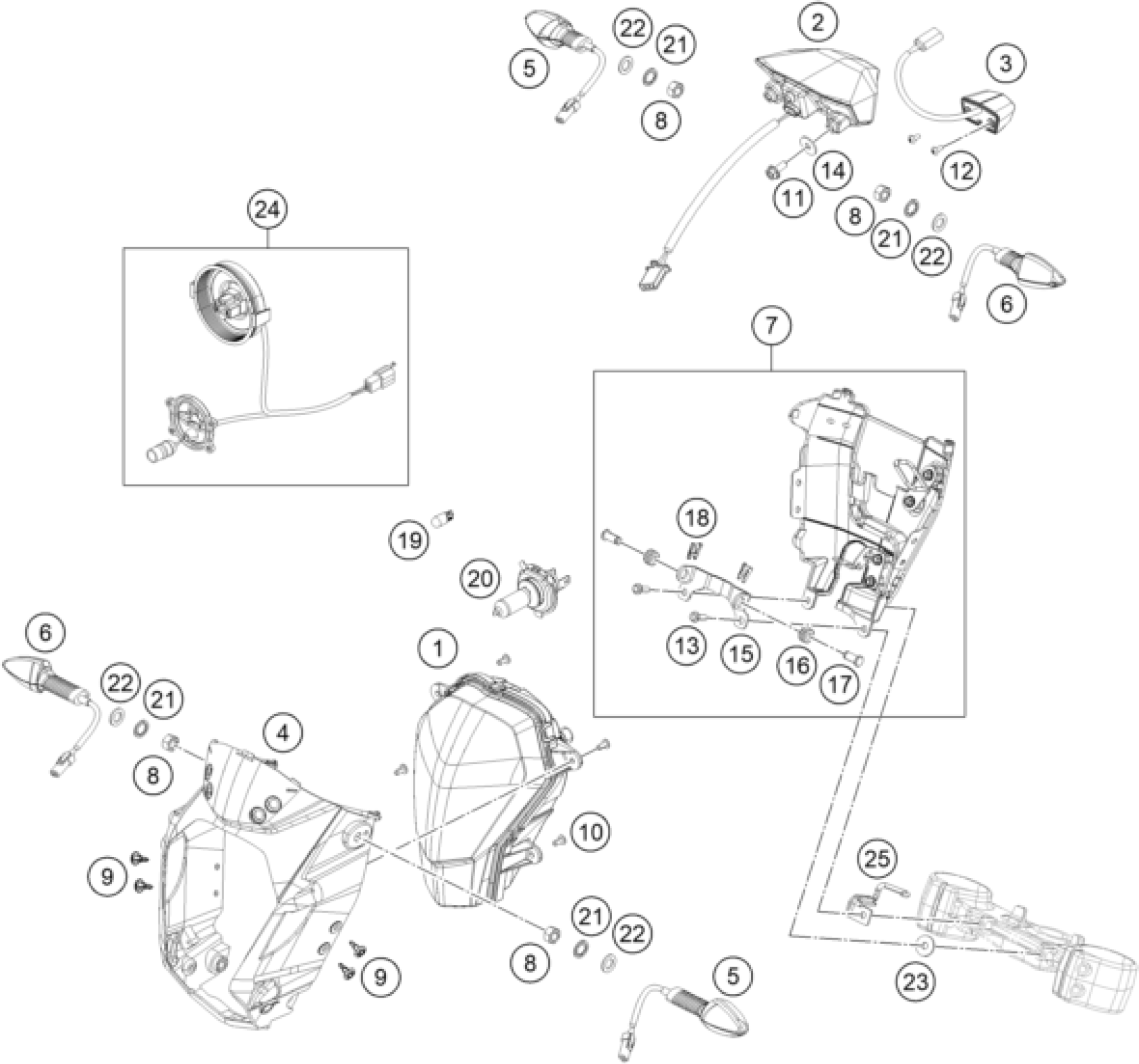

KTM 390 DUKE BLACK ABS BAJ.DIR. 14 <2014> LIGHTING SYSTEM Diagram

#

Description

Price

1

HEAD LIGHT CPL.

90114001000

$141.46

2

REAR LIGHT LED

90214540000

$113.39

3

LICENSE PLATE ILLUMINATION

90114047000

$26.55

4

MASK BRACKET

90114062000

$26.73

5

FLASHER CPL. REAR R/S

90214525000

$40.10

5

FLASHER CPL. FRONT L/S

90214526001

$41.69

6

FLASHER CPL. REAR L/S

90214526000

$38.42

6

FLASHER CPL. FRONT R/S

90214525001

$41.69

7

HEAD LIGHT COVER REAR CPL.

90114064044

$57.12

8

HEX NUT M10X1,25

90114030000

$3.08

9

EXPANDING RIVET CPL.

76503075100

$3.08

10

EJOT PT screw K50x12

0081050121

$2.05

11

HH-COLLAR SCREW M5X12

J025050126

$1.49

12

CROSS PAN SCREW 4X12 PH

J081040121

$1.49

13

HH COLLAR SCREW M6X16 SW10

J025060163

$1.49

15

HINGE JOINT HEADL.-COVER

90114064010

$4.11

16

GROMMET MASK CARR. PIVOT BKT

90114064011

$1.49

17

SAFETY BOLT 8X1,5

J070080150

$2.05

18

SEC. CLIP MASK CARR. PIVOT BKT

90114064012

$2.05

19

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

25

HOOK BRACKET ABS HOSE

90103001036

$3.08

20

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

21

TOOTHED WASHER M10

J797100003

$1.49

22

WASHER PLAIN 10,5

J125100003

$1.49

23

WASHER 6,5X2 MM

J126061252

$1.49

24

HARNESS F. HEADLAMP

90111079000

$15.04

14

PLAIN WASHER

90114064013

$1.49
