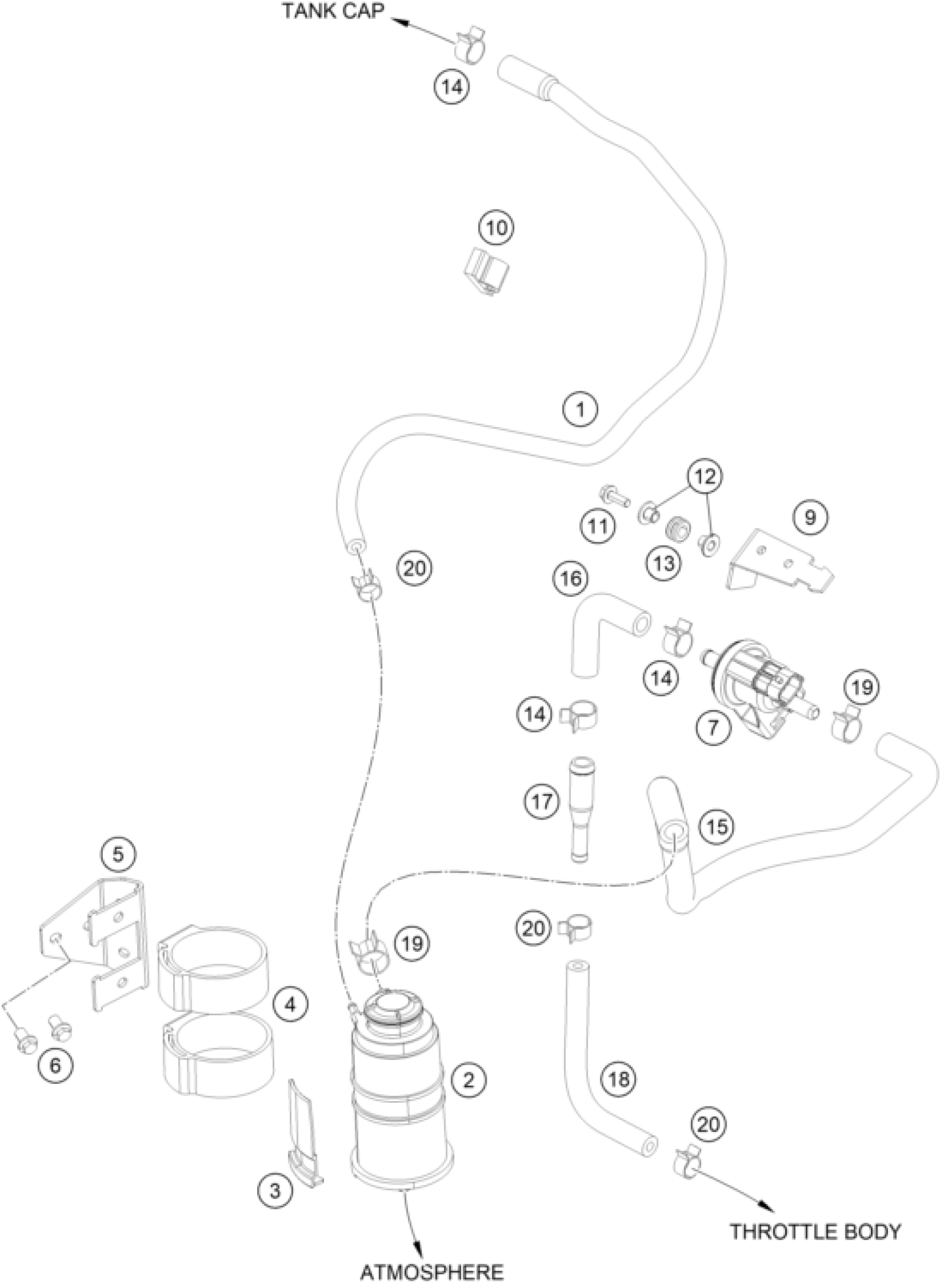

KTM 390 DUKE BLACK ABS BAJ.DIR. 14 <2014> EVAPORATIVE CANISTER Diagram

#

Description

Price

9

BRACKET PURGE VALVE

90203001050

Unavailable

10

BRACKET CANISTER HOSE ROUTING

90203001054

Unavailable

11

HH COLLAR SCREW M6X18 SW10

J025060183

Unavailable

12

COLLAR 8X6X7

90615003000

Unavailable

13

GROMMET 15,5X8X8,1

90615002000

Unavailable

14

CLAMP D9

90607017002

Unavailable

1

HOSE

90207016000

Unavailable

2

TANK CANISTER

90207027001

Unavailable

3

LOCATOR CAP CANISTER

90203001053

Unavailable

4

STRAP CANISTER

90607029001

Unavailable

5

BRACKET CANISTER MTG

90203001051

Unavailable

6

HH-COLLAR SCREW M6X10 SW8

J025060109

Unavailable

7

fuel tank vent valve

90607030000

Unavailable

15

HOSE

90607016300

Unavailable

16

TUBE PURGE VALVE TO CONNECTOR

90207016002

Unavailable

17

CONNECTOR TUBE EVAP

90207016004

Unavailable

18

HOSE

90207016003

Unavailable

19

SPRING BAND CLAMP 15X10

90607017001

Unavailable

20

CLAMP 10MM

90107018011

Unavailable
