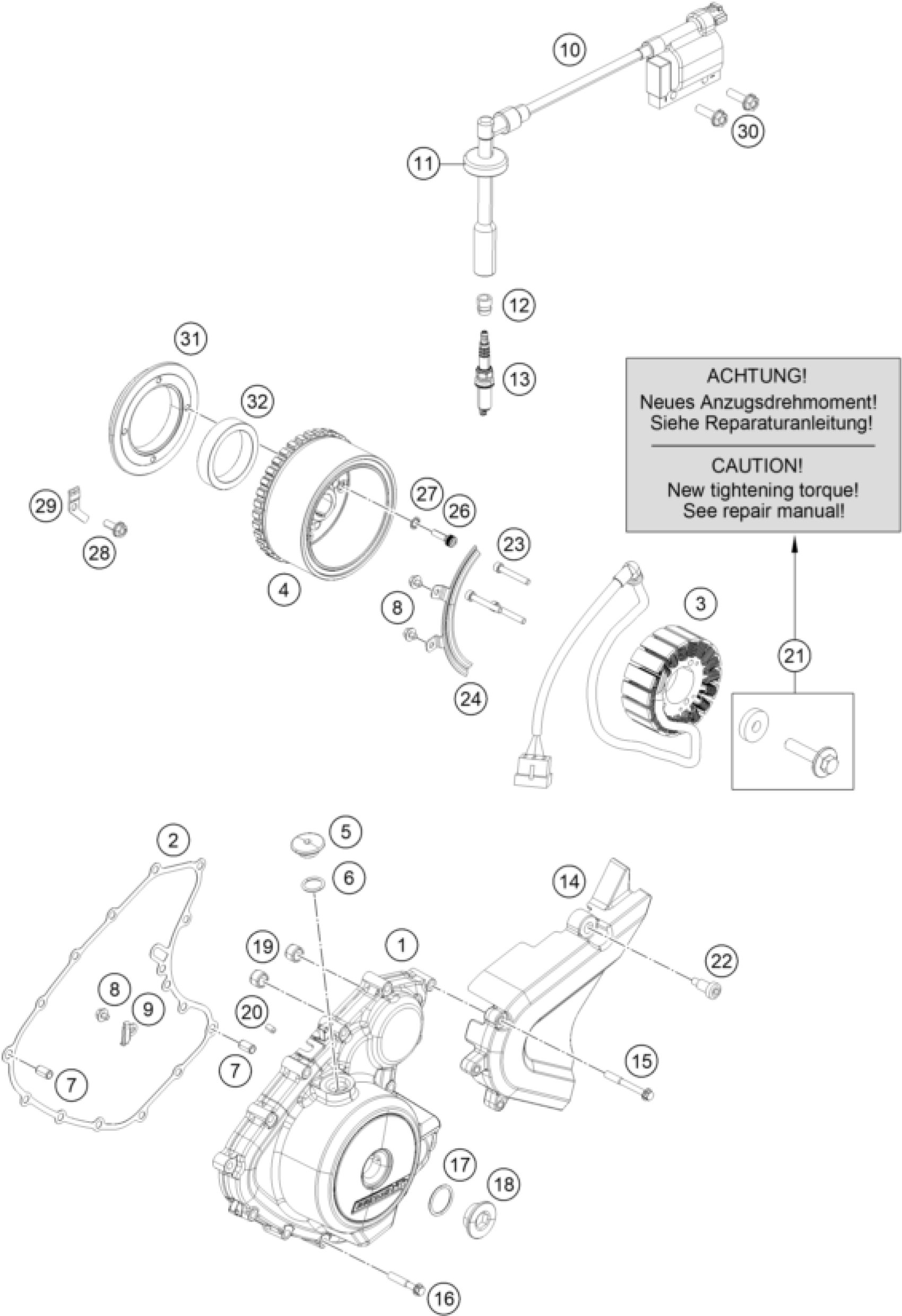

KTM 390 DUKE BLACK ABS 2014 IGNITION SYSTEM Diagram

#

Description

Price

1

IGNITION COVER WITH PLUG

90230002133

Unavailable

2

GASKET IGNITION COVER

90230040000

Unavailable

3

STATOR CPL.

90239004100

Unavailable

4

ROTOR CPL.

90239005000

Unavailable

5

PLUG

90139010000

Unavailable

6

O-RING 15,8X2,4

J770015824

Unavailable

7

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

8

HH COLLAR SCREW M5X6

J025060083S

Unavailable

9

BRACKET HARNESS MAGNETO

90230062000

Unavailable

10

ignition coil cpl. with plug

90239006044

Unavailable

11

RUBBER GASKET SPARK PLUG

90239090001

Unavailable

12

RUBBER GASKET SPARK PLUG

90139093001

Unavailable

13

SPARK PLUG VR5NE

90139093100

Unavailable

14

front sprocket cover

90230060002

Unavailable

15

FLANGED BOLT M6X50 WS8

J025060500

Unavailable

16

FLANGED BOLT M6X35 WS8

J025060350

Unavailable

17

O-RING 24X2,5

J770024015

Unavailable

18

PLUG SCREW M24X1,5

90230094000

Unavailable

19

BUSH STARTER SHAFT

90240018000

Unavailable

20

OIL NOZZLE

90230066200

Unavailable

21

ROTOR SCREW CPL.

90239005050

Unavailable

23

SOCKET HEAD BOLT M5X0,8X40

90530002010

Unavailable

24

PLATE HARNESS MAGNETO

90230058000

Unavailable

26

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

27

TOOTHED LOCK WASHER

90130001002

Unavailable

28

HH COLLAR SCREW M6X16

90130059000

Unavailable

29

RETAINER GEAR STARTER

90240020002

Unavailable

30

HH COLLAR SCREW M6X20

J025060209

Unavailable

31

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

32

FREEWHEEL CLUTCH

90140026000

Unavailable

22

special screw M6x24 WS6

90104060010

Unavailable
