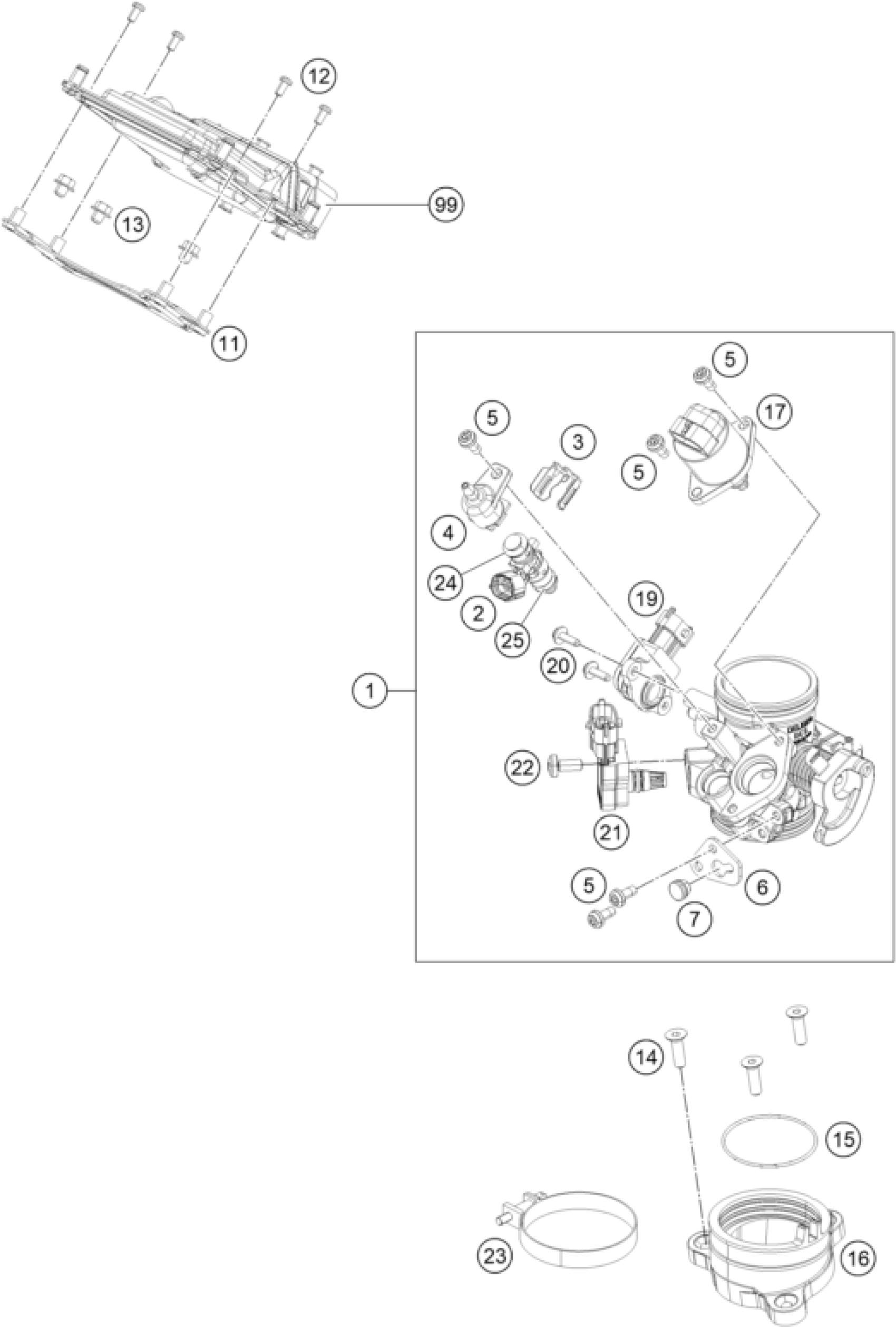

KTM 390 DUKE BL. ABS CKD 15 <2015> THROTTLE BODY Diagram

#

Description

Price

99

ECU RAW PART

90141031100

Unavailable

1

THROTTLE CAP BODY CPL.

90841101033

Unavailable

2

FUEL INJECTOR

90841123000

Unavailable

3

INJECTOR CLIP

90141001001

Unavailable

4

CONNECTOR FUEL RAIL

90141023004

Unavailable

5

SPECIAL SCREW M5X12

90141023005

Unavailable

6

CABLE SUPPORT

90141023002

Unavailable

7

GROMMET

90141023003

Unavailable

11

BRACKET TIMING CHARGER

90141029000

Unavailable

12

FLAT HEAD SCREW M4X8 PH

J005040081

Unavailable

13

HH COLLAR SCREW M5X8 SW8

J025050083

Unavailable

14

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

15

O-RING 53X2,4

J770053024

Unavailable

16

Pipe intake

90241002100

Unavailable

17

IDLE ADJUSTER

90641072000

Unavailable

19

THROTTLE POSITION SENSOR

90141070000

Unavailable

20

SPECIAL SCREW M4X13

90141070001

Unavailable

21

TMAP-SENSOR

90141071000

Unavailable

22

SPECIAL SCREW M6X14

90141071001

Unavailable

23

hose clamp

90241002010

Unavailable

24

O-ring

55641023020

Unavailable

25

O-ring

55641023010

Unavailable
