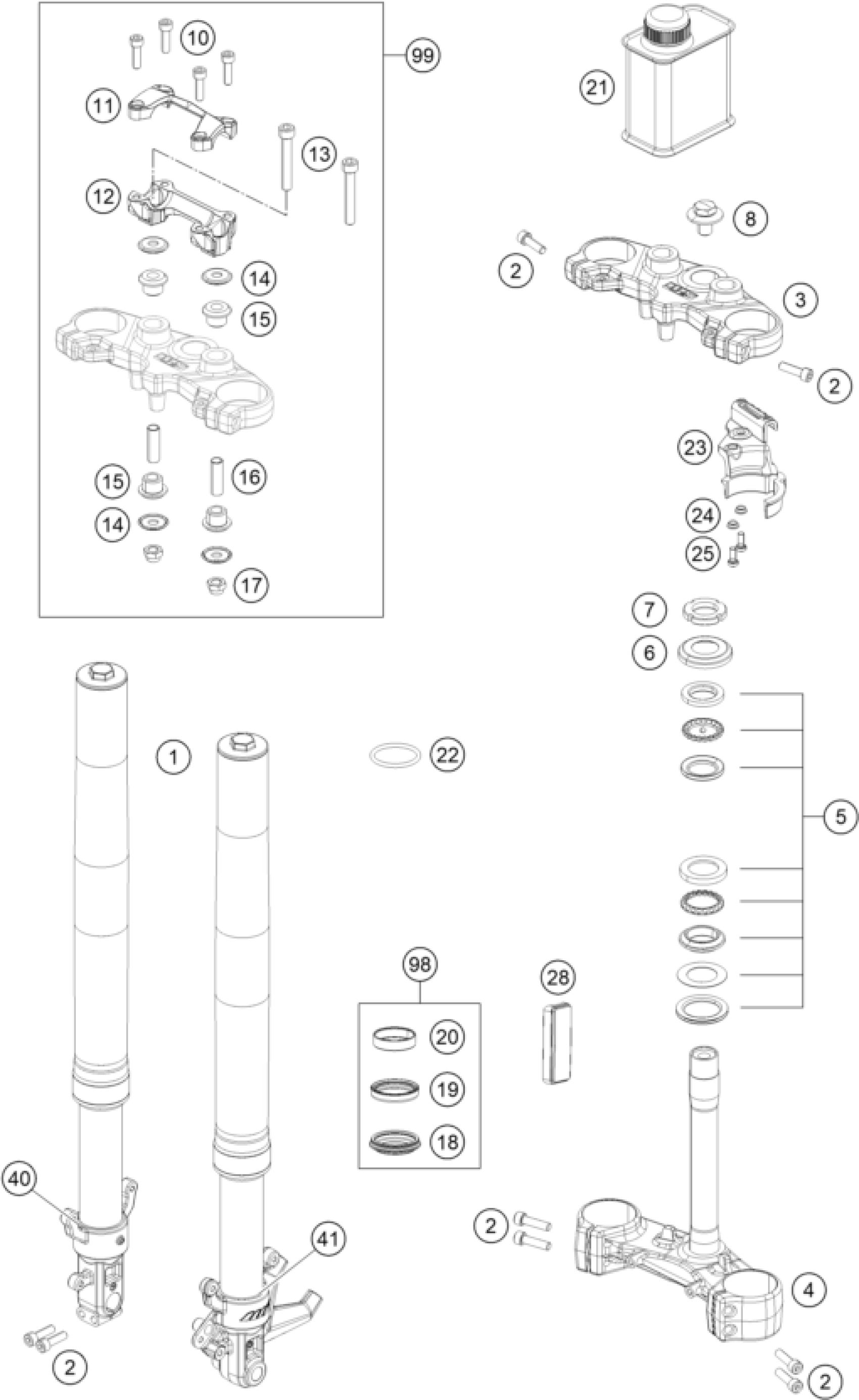

KTM 390 DUKE BL. ABS B.D. 16 <2016> FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK LEG L/S CPL.

90201001000

$625.23

2

BOLT SOCKET M8X1,25X30L

90101031007

$2.05

3

TOP TRIPLE CLAMP

90101034035

$240.38

5

STEERING HEAD BEARING-KIT

90101080044

$33.65

1

FORK LEG R/S CPL.

90201002000

$556.04

4

BOT. TRIPLE CLAMP CPL.

90101032100

$310.50

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

CLAMP SCREW STEERING HEAD

90101136000

$12.80

10

SPECIAL SCREW M8X29 SS

90101044000

$2.05

11

HANDLEBAR CLAMP

90101038000

$9.15

12

HANDLEBAR SUPPORT D=26MM

90101039000

$13.64

13

AH SCREW M10X1,25X64

J022100643

$3.08

14

WASHER 10,5X32X2

90101042000

$1.49

15

RUBBER BUSHING

90101040000

$2.05

16

SPACER TUBE

90101041000

$4.11

17

SELF L. NUT M10X1,25 H11 WS17

J982101253

$1.49

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

22

O-ring 43x2 NBR70 siliconized

40140024

$4.11

23

HOSE CLAMP

90113055000

$7.28

24

sleeve for hose clamp

90113055010

$1.49

25

AH SCREW M6X15 10.9

J021060156

$1.49

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

$289.00

41

AXLE CLAMP CPL. WITH PIPE L/S

90101006144

$351.18

98

REP. KIT FORK KPL.

90101000010

Unavailable

99

HANDLEBAR SUPPORT KIT

90101039010

Unavailable

28

side reflector, front

90212582001

$5.23
