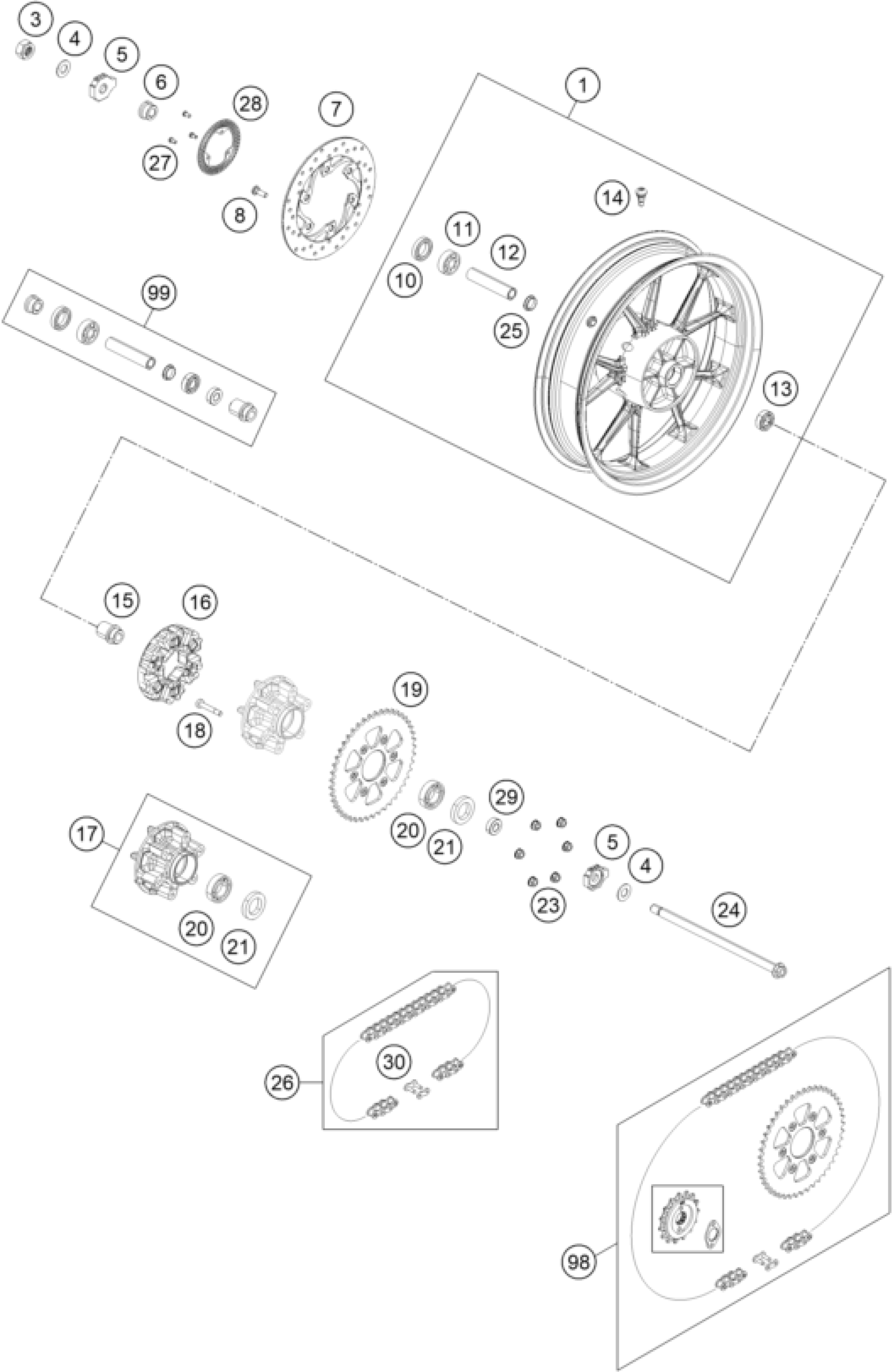

KTM 390 DUKE BL. ABS B.D. 15 <2015> REAR WHEEL Diagram

#

Description

Price

1

REAR WHEEL CPL. HD ORANGE

9021020104404

Unavailable

3

wheel spindle nut, rear

90210086000

Unavailable

4

washer 15.2x30x2

90610087000

Unavailable

5

chain tension adjuster, right

90110084000

Unavailable

6

SPACER BUSHING REAR WHEEL R/S

90110013000

Unavailable

7

rear brake disk D=230mm

90110060000

Unavailable

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

Unavailable

10

SHAFT SEAL RING 26X42X8

J760264208

Unavailable

11

BALL BEARING 6302

J625063020

Unavailable

12

BEARING SPACER TUBE REAR

90110011000

Unavailable

13

BALL BEARING 6202

J625062021

Unavailable

14

VALVE CPL.

90109076000

Unavailable

15

SPACER BUSHING KRT INSIDE

90610054000

Unavailable

16

rear wheel dampening rubber

90210059100

Unavailable

17

SPROCKET SUPPORT

90210050000

Unavailable

18

SPECIAL SCREW M8X48

90810052000

Unavailable

19

rear sprocket 45 teeth

90510051045

Unavailable

20

BALL BEARING 6205

J625062050

Unavailable

21

SHAFT SEAL RING 29X52X7

J760295207

Unavailable

23

FLANGED NUT M8X1,25

90510052000

Unavailable

24

Axle rear KT03

90210085000

Unavailable

25

Fixation bearing spacer tube

90109011001

Unavailable

26

chain DID 118 roll

76910065118

Unavailable

27

SCREW FOR ABS

90142021001

Unavailable

28

SENSOR DISC REAR

90142021000

Unavailable

29

SPACER CHAIN WHEEL SUPPORT

90110053000

Unavailable

98

DRIVETRAIN KIT 390 DUKE 2015

00050002059

Unavailable

99

REAR WHEEL REP. KIT 390 DUKE

90110015100

Unavailable

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable
