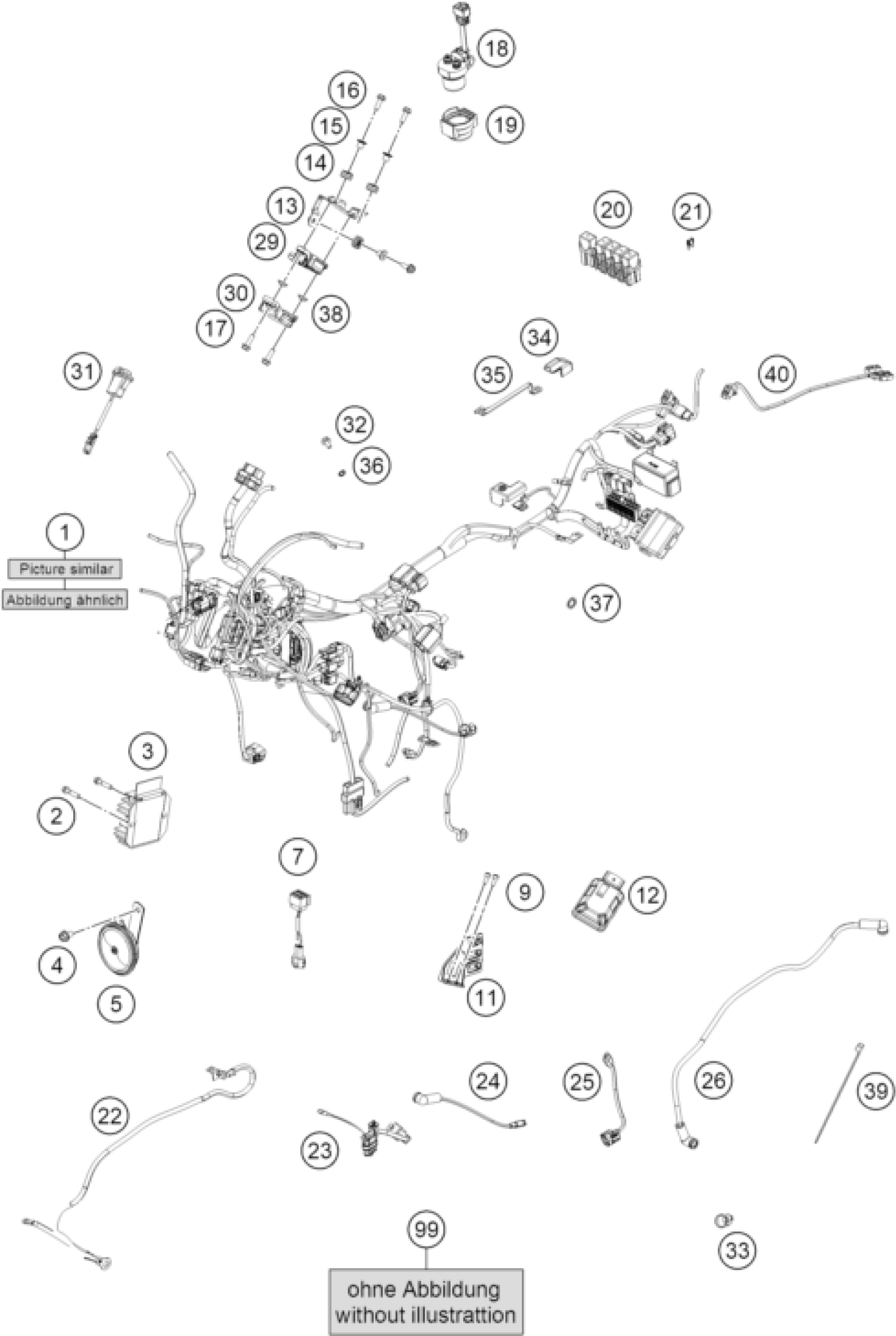

KTM 390 ADVENTURE X, orange 2025 WIRING HARNESS Diagram

#

Description
Price

1

HARNESS WIRING

A60111175000

Unavailable

2

SK-Bundschraube M6x28

J900000602800

Unavailable

3

UNIT REGULATOR

A60111034000

Unavailable

4

Hex collar screw, M8x14

J900000801402

Unavailable

5

Horn

28111060000

Unavailable

7

Transil unit

28111096000

$7.66

9

SOCKET HEAD BOLT M6X12

90508006001

$1.49

11

Connector support

96311083000

Unavailable

12

UNIT CONNECTIVITY

96314086000

Unavailable

13

6-D sensor retaining bracket

96342091010

Unavailable

14

grommet

J650001801400

$1.49

15

collar number plate mounting

J800000601000

$1.49

16

Hex screw with collar M6x18

J900000601803

Unavailable

17

BOLT FLANGED M6X1

J900000602202

Unavailable

18

Starter relais

93011058000

$27.48

19

Rubber damper starter relay

93311058000

Unavailable

20

relay (interlock)

90611057000

$24.49

21

Fuse 10a

93511088000

$1.73

21

Fuse 15A

90111088015

Unavailable

21

Fuse 30A

90111088030

Unavailable

21

Fuse 20A

90111088020

Unavailable

21

FUSE 25A

90111088025

Unavailable

22

CABLE EARTH

96311097000

Unavailable

23

CABLE PUMP FUEL

96311007000

Unavailable

24

cable switch pressure oil

96338091000

Unavailable

25

wiring harness temperatur sens

93811099000

$8.03

26

Starter cable

96311059000

Unavailable

29

rollover sensor

93541088000

$24.02

30

cover sensor lean angle upper

95842092020

$1.49

31

socket charger USB

96311041000

Unavailable

32

Hex collar screw M6X12

J025060122

$1.49

33

Cable tie

93803001022

Unavailable

34

cap relay starter

96311058010

Unavailable

35

Busbar plate

96311097002

Unavailable

36

TOOTHED WASHER M6

J797060003

$1.49

37

washer toothed internal

J797100006

Unavailable

38

Washer

93035033010

$1.49

39

Cable ties 140/ 3.5mmm orange

U6951130

Unavailable

39

BAND (LENGTH 200MM)

90111093200

Unavailable

39

BAND 300MM

93011093300

Unavailable

99

CABLE EARTH

96311098000

Unavailable

40

CABLE REAR

A60111076000

Unavailable
