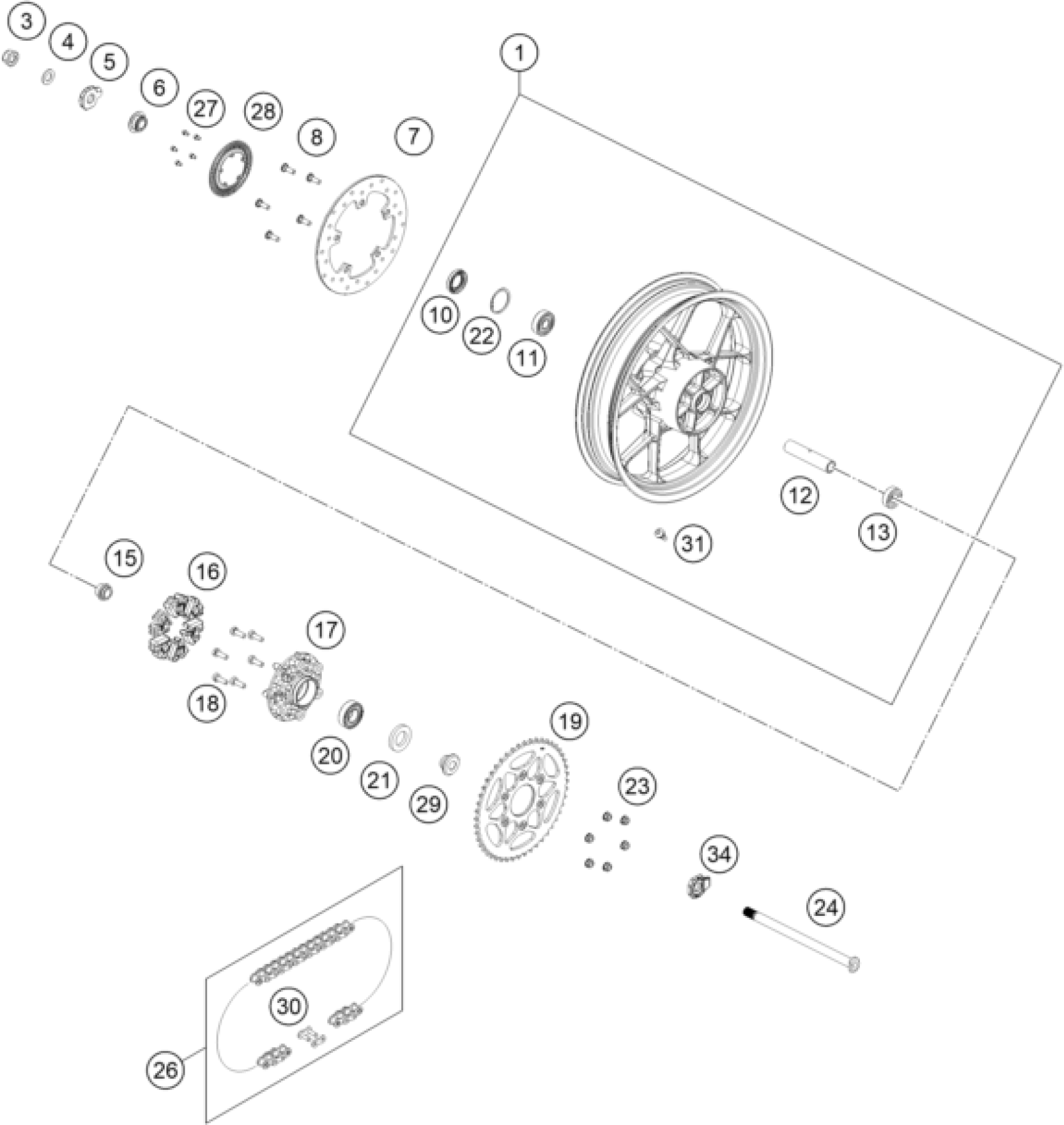

KTM 390 ADVENTURE X, orange 2025 REAR WHEEL Diagram

#

Description
Price

1

Adventure 390 X REAR Wheel Ass

A60110101033C1

Unavailable

3

nut rear wheel axle

96310086000

Unavailable

4

washer 17x2.6

J690001700300

Unavailable

5

chain tensioner right

96310084000

Unavailable

6

collar

J800001701700

Unavailable

7

DISC BRAKE DIA 240

96310060000

Unavailable

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

10

SHAFT SEAL RING 30X47X8

J760304708

Unavailable

11

Ball bearing 17x47x14

J410001701400

Unavailable

12

COLLAR

A61710011000

Unavailable

13

Ball bearing

J410001701200

Unavailable

15

SPACER

A61710016000

Unavailable

16

DAMPER RUBBER REAR WHEEL

90910059000

$4.11

17

Rear sprocket carrier, spoke r

28110050000

$31.78

18

Special screw M8x26 SS

28110053000

$1.49

19

SPROCKET 46T

91210051046

$63.49

20

BALL BEARING 6205

J625062050

$14.86

21

SHAFT SEAL RING 29X52X7

J760295207

$5.23

22

CIRCLIP 47X17

J710004717501

Unavailable

23

FLANGED NUT M8X1,25

90510052000

$1.49

24

rear wheel axle

96310085000

Unavailable

26

chain DID 118 roll

76910065118

$128.83

27

BOLT SOCKET M5X0.8

J900000500800

$1.49

28

Sensor wheel, front

94542020000

$20.19

29

Rear wheel bushing

96310011000

Unavailable

30

Rivet link chain DID 520 VP2-T

76910066000

$20.00

31

VALVE CPL.

90109076000

$7.10

34

chain tensioner left

96310083000

Unavailable
