FRONT FORK, TRIPLE CLAMP

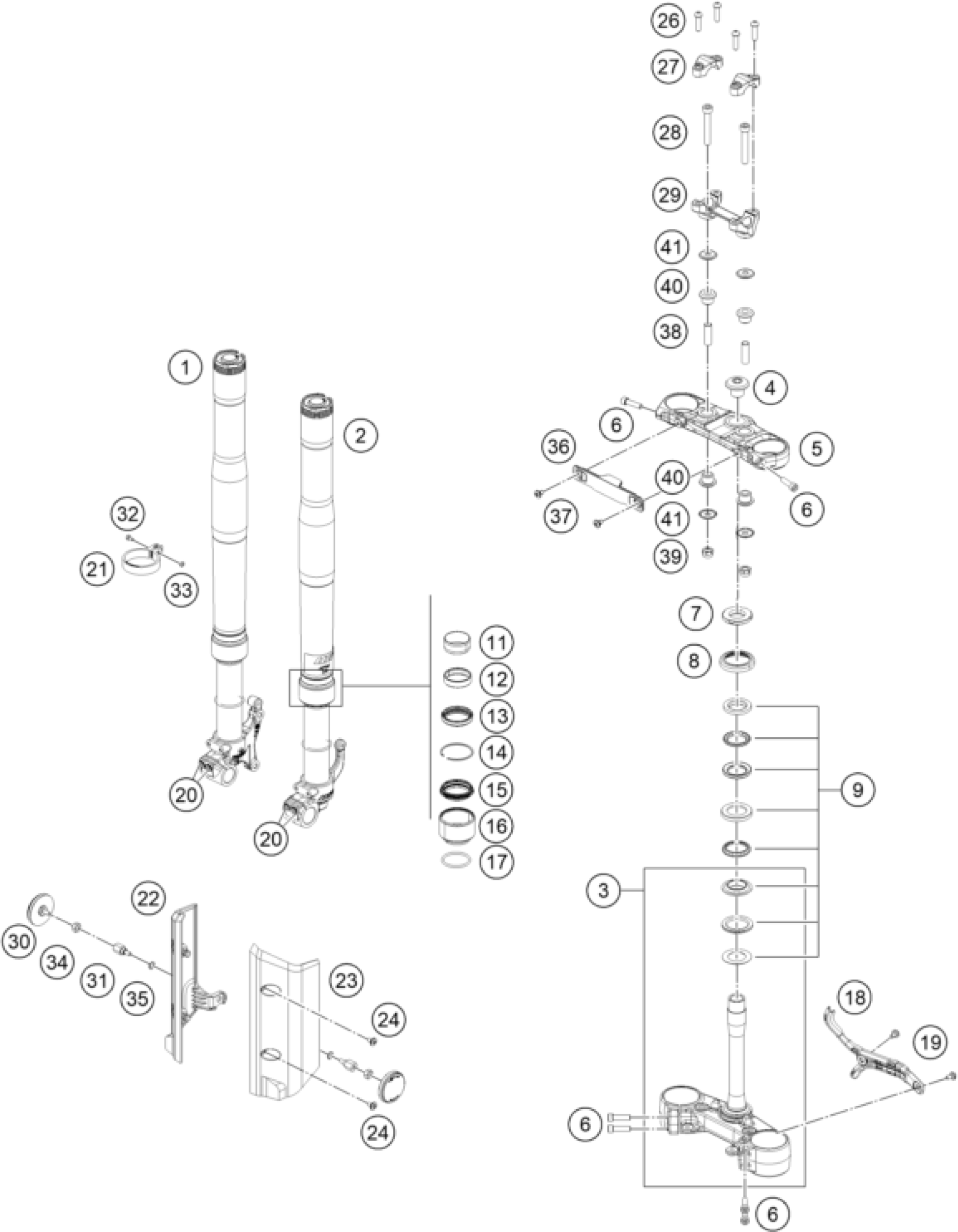

KTM 390 ADVENTURE X, orange 2025 FRONT FORK, TRIPLE CLAMP Diagram
#
1
LEG ASSEMBLY RH
A601R139Y209102
Unavailable
2
LEG ASSEMBLY LH
A601L139Y209102
Unavailable
3
ADV MY25 BKT ASSEMBLY UNDER (J
A60101132028C1
Unavailable
4
screw socket M22x1.5
J900002202000
Unavailable
5
BRACKET UPPER
A60101134028C1
Unavailable
6
AH SCREW M8X1.25X30
90501045000
$1.49
7
Adjusting ring steering head
90101036100
$5.23
8
protection cap
90101086000
$3.08
9
STEERING HEAD BEARING-KIT
90101080044
$33.65
11
GUIDE BUSH UPPER
43578016
$16.35
12
GUIDE BUSH LOWER
43578014
$16.45
13
Shaft seal SKF 43x52,9x11,4 bl
43570623
$16.63
14
CIRCLIP
43578044
$4.11
15
Dirt scarper SKF 43mm red
43570723
Unavailable
16
FORK FRONT DUST COVER
90201025000
$4.11
17
O-ring 40x2,5 VMQ70 red ISO 36
43578219
$4.11
18
GUIDE CABLE
A60113025000
Unavailable
19
Screw M6X1X9
93008020060
$2.05
21
CLAMP HOSE
A60101085000
Unavailable
24
screw socket step M6x1
J900000601501
Unavailable
26
Button head screw w.hex socket
J900000802900
Unavailable
27
handleholder upper
A60301038000C1
Unavailable
28
AH SCREW M10X1,25X64
J022100643
$3.08
29
handleholder lower 42 mm
A60301043042C1
Unavailable
30
Side reflector
94512082000
$7.10
31
Special screw M6x16.5
J900000601700
Unavailable
32
bolt flanged M5x0.8
J900000502001
$1.49
33
nyloc nut-M5x0.8
J982050006
$1.49
34
NUT HEX THICK
J910000600505
$1.49
35
Washer nylon
93009059000
$1.49
36
COVER CABLE
A60101069000
Unavailable
37
SCREW SOCKET STEP M6X1
J900000601211
Unavailable
41
WASHER 10,5X32X2
90101042000
$1.49
38
SPACER TUBE
90101041000
$4.11
40
RUBBER BUSHING
90101040000
$2.05
39
SELF L. NUT M10X1,25 H11 WS17
J982101253
$1.49
23
Fork protector left
A60101192000
Unavailable
22
Fork protector right
A60101193000
Unavailable
20
bolt socket M8x1.25
J900000802503
Unavailable
