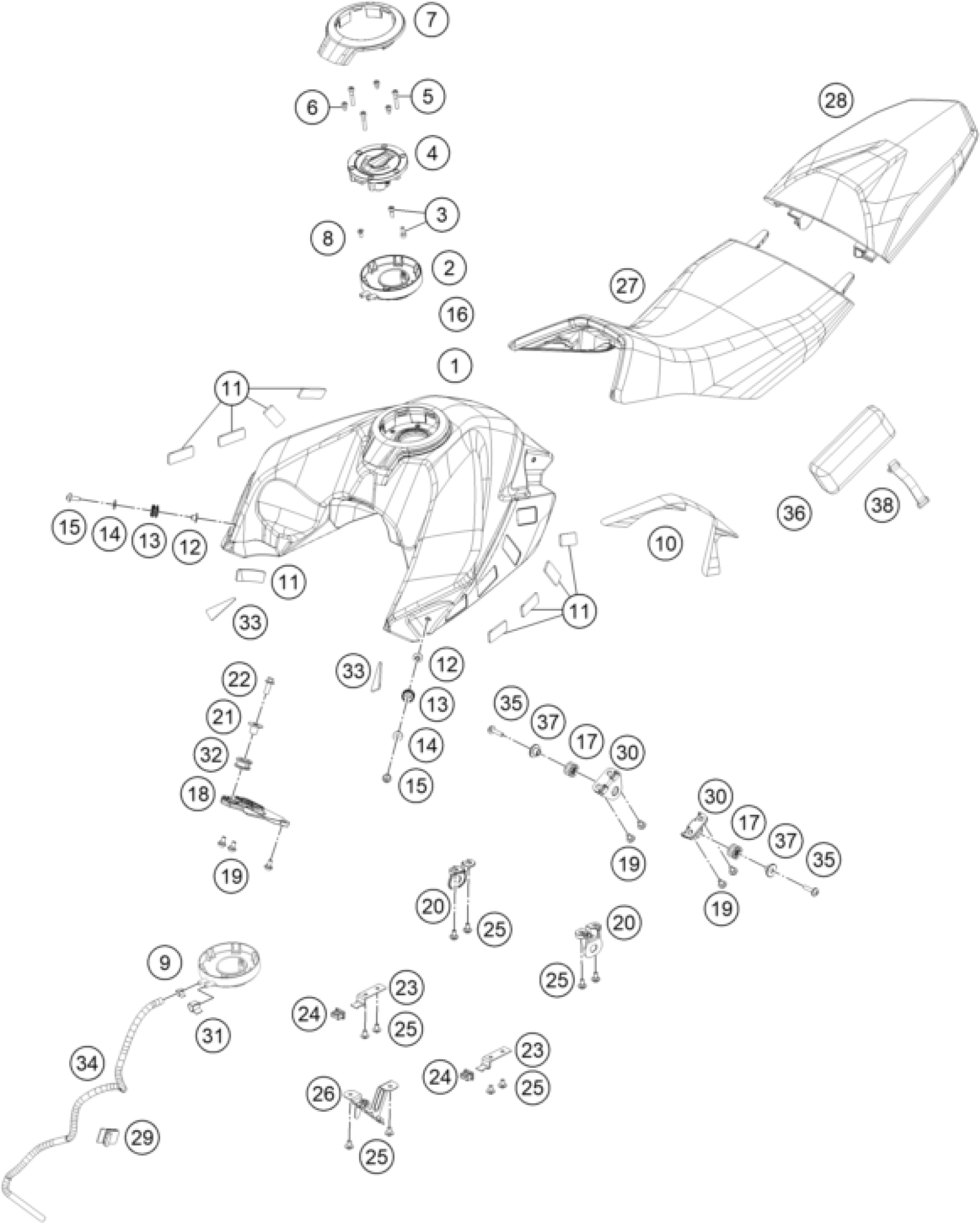

KTM 390 ADVENTURE SPOKE W,orange nHD B.D. 23 <2023> TANK, SEAT Diagram

#

Description
Price

1

fuel tank

95807013144EB

$1,763.03

2

Tank insert

95807008050

$14.86

3

SOCKET HEAD BOLT M5X12

90508018001

$1.49

4

cap tank fuel

95807108000

$83.58

5

bolt master kac

J912050303

$1.49

6

BOLT MASTER KAC

J912050106

$1.49

7

Fuel tank fairing

95807058000

$5.23

8

screw csk socket m5x0.8

J900000501201

$1.49

9

CLAMP D9

90607017002

$1.49

10

Tank pad

95807011000

$1.49

11

Tank support rubber

95807012020

$1.49

12

Tank bushing

95807013070

$1.49

13

Tank bushing

95807013060

$1.49

14

washer plain id-6.2xod16xthk1x

J125060005

$1.49

15

SPECIAL SCREW M6X1X16

90808043000

$1.49

16

Fuel tank cap seal

95807008052

$5.23

17

rubber grommet, tank mounting

69007027000

$3.08

18

bottom tank mounting

95807013040

$5.23

19

Screw M6X1X9

93008020060

$2.05

20

Spoilerbracket

95807013015

$2.05

21

Collar bushing

95807028000

$3.08

22

Hex collar screw. M8x25

J025080256

$1.49

23

Inside cover retaining bracket

95807013025

$1.49

24

DAMP. RUBBER II RADIATOR PROT

90108060002

$1.49

25

Lens head screw M6X10

J031060103

$1.49

26

Bracket sensor lean angle

95842091100

Unavailable

27

Seat 390 Adventure

95807040000

$80.68

28

seat passenger 390 Adv.

95807047000

$62.92

29

BRACKET DRAIN TUBE CPL.

90107029000

$2.05

30

tank lug

95807013030

$1.49

31

SPRING BAND CLAMP D13

90607017003

$2.05

32

Rubber grommet

95807027000

$1.49

33

Tank support rubber, spoiler

95807012010

$1.49

34

Act. charcoal filter hose L=68

95815000680

$3.08

35

screw button head-m6x1xl25xbrt

J031060253

$1.49

36

Tool set

95829099000

$44.68

37

Collar bushing

J800000701500

$1.49

38

Rubber band, tool set

95808023020

$2.05
