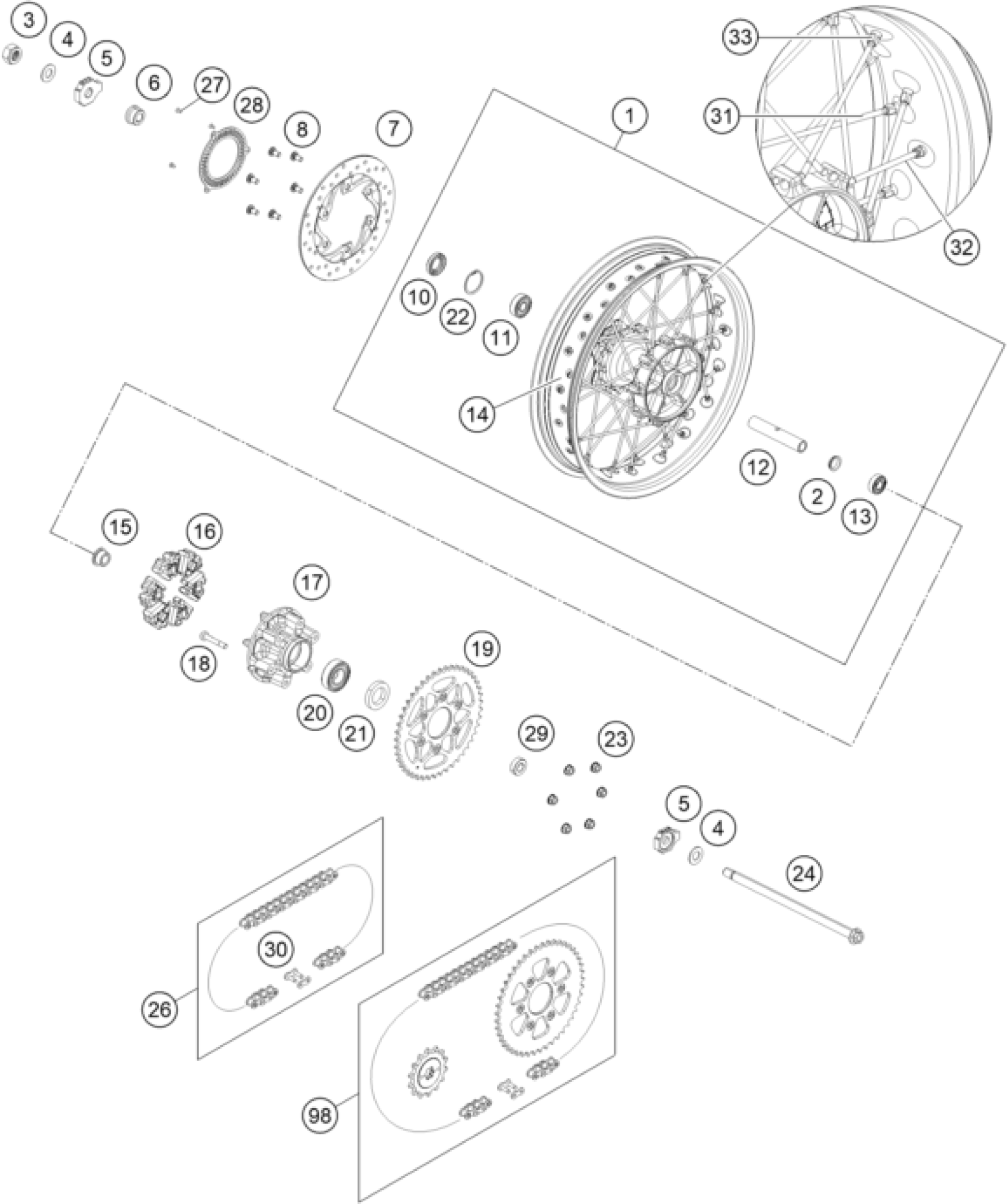

KTM 390 ADVENTURE SPOKE W,orange nHD B.D. 23 <2023> REAR WHEEL Diagram

#

Description
Price

1

Rear wheel

95810002133C1

$490.44

2

Fixation bearing spacer tube

90109011001

$1.49

3

wheel spindle nut, rear

90210086000

$3.08

4

washer 15.2x30x2

90610087000

$1.49

5

chain tension adjuster, right

90110084000

$7.10

6

Spacer, rear wheel right

28110013000

$10.37

7

rear brake disk D=230mm

90110060000

$76.94

8

Hexagon socket screw M8x19

J900000801900

$1.49

10

SHAFT SEAL RING 26X42X8

J760264208

$3.08

11

Grooved ball bearing 6302

J625063021

$12.33

12

COLLAR BEARING

28110011000

$4.11

13

BALL BEARING 6202

J625062023

$11.40

15

Spacer, rear wheel left

28110016000

$4.11

16

rear wheel dampening rubber

90210059100

$5.23

17

Rear sprocket carrier, spoke r

28110050000

$31.78

18

Special screw M8x26 SS

28110053000

$1.49

19

Rear sprocket 45T

95810051045

$61.80

20

BALL BEARING 6205

J625062050

$14.86

21

SHAFT SEAL RING 29X52X7

J760295207

$5.23

22

Lock ring, 42x1.7

J472042176

$1.49

23

FLANGED NUT M8X1,25

90510052000

$1.49

24

Axle rear KT03

90210085000

$16.07

26

chain DID 118 roll

76910065118

$128.83

29

SPACER CHAIN WHEEL SUPPORT

90110053000

$5.23

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

98

Drivetrain kit 15Z/45Z

00050002114

$189.98

28

Sensor wheel ABS rear

28142021000

$10.46

27

Countersunk screw, M4X08

J07046040086

$1.49

14

Tube protector 18"

60710073000

$22.15

31

Spoke M5/4.37/170 black

2851007117030

$3.36

32

Spoke M5/4.37/182 black

2851007118230

$1.58

33

Spoke nipple M5x0.8

28510072100

$2.05
