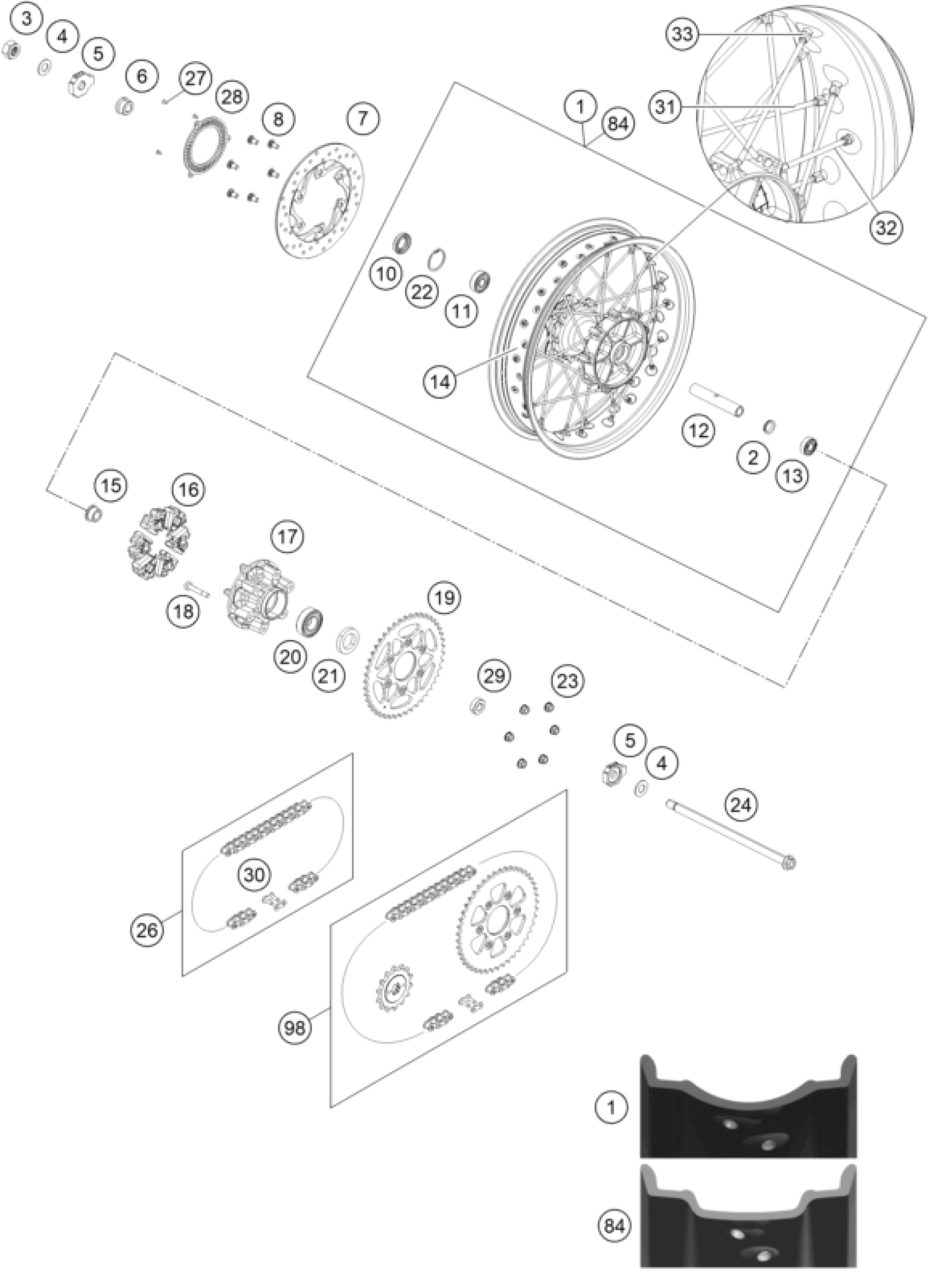

KTM 390 ADVENTURE SPOKE W, orange 2024 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel

95810002133C1

Unavailable

2

Fixation bearing spacer tube

90109011001

Unavailable

3

wheel spindle nut, rear

90210086000

Unavailable

4

washer 15.2x30x2

90610087000

Unavailable

5

chain tension adjuster, right

90110084000

Unavailable

6

Spacer, rear wheel right

28110013000

Unavailable

7

rear brake disk D=230mm

90110060000

Unavailable

8

Hexagon socket screw M8x19

J900000801900

Unavailable

10

SHAFT SEAL RING 26X42X8

J760264208

Unavailable

11

Grooved ball bearing 6302

J625063021

Unavailable

12

COLLAR BEARING

28110011000

Unavailable

13

BALL BEARING 6202

J625062023

Unavailable

14

Tube protector 18"

60710073000

Unavailable

15

Spacer, rear wheel left

28110016000

Unavailable

16

rear wheel dampening rubber

90210059100

Unavailable

17

Rear sprocket carrier, spoke r

28110050000

Unavailable

18

Special screw M8x26 SS

28110053000

Unavailable

19

Rear sprocket 45T

95810051045

Unavailable

20

BALL BEARING 6205

J625062050

Unavailable

21

SHAFT SEAL RING 29X52X7

J760295207

Unavailable

22

Lock ring, 42x1.7

J472042176

Unavailable

23

FLANGED NUT M8X1,25

90510052000

Unavailable

24

Axle rear KT03

90210085000

Unavailable

26

chain DID 118 roll

76910065118

Unavailable

27

Countersunk screw, M4X08

J07046040086

Unavailable

28

Sensor wheel ABS rear

28142021000

Unavailable

29

SPACER CHAIN WHEEL SUPPORT

90110053000

Unavailable

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

31

Spoke M5/4.37/170 black

2851007117030

Unavailable

32

Spoke M5/4.37/182 black

2851007118230

Unavailable

33

Spoke nipple M5x0.8

28510072100

Unavailable

98

Drivetrain kit 15Z/45Z

00050002114

Unavailable

84

Rear wheel 3.5x17" cmpl. GIANT

95810102044C1

Unavailable
