Partiron

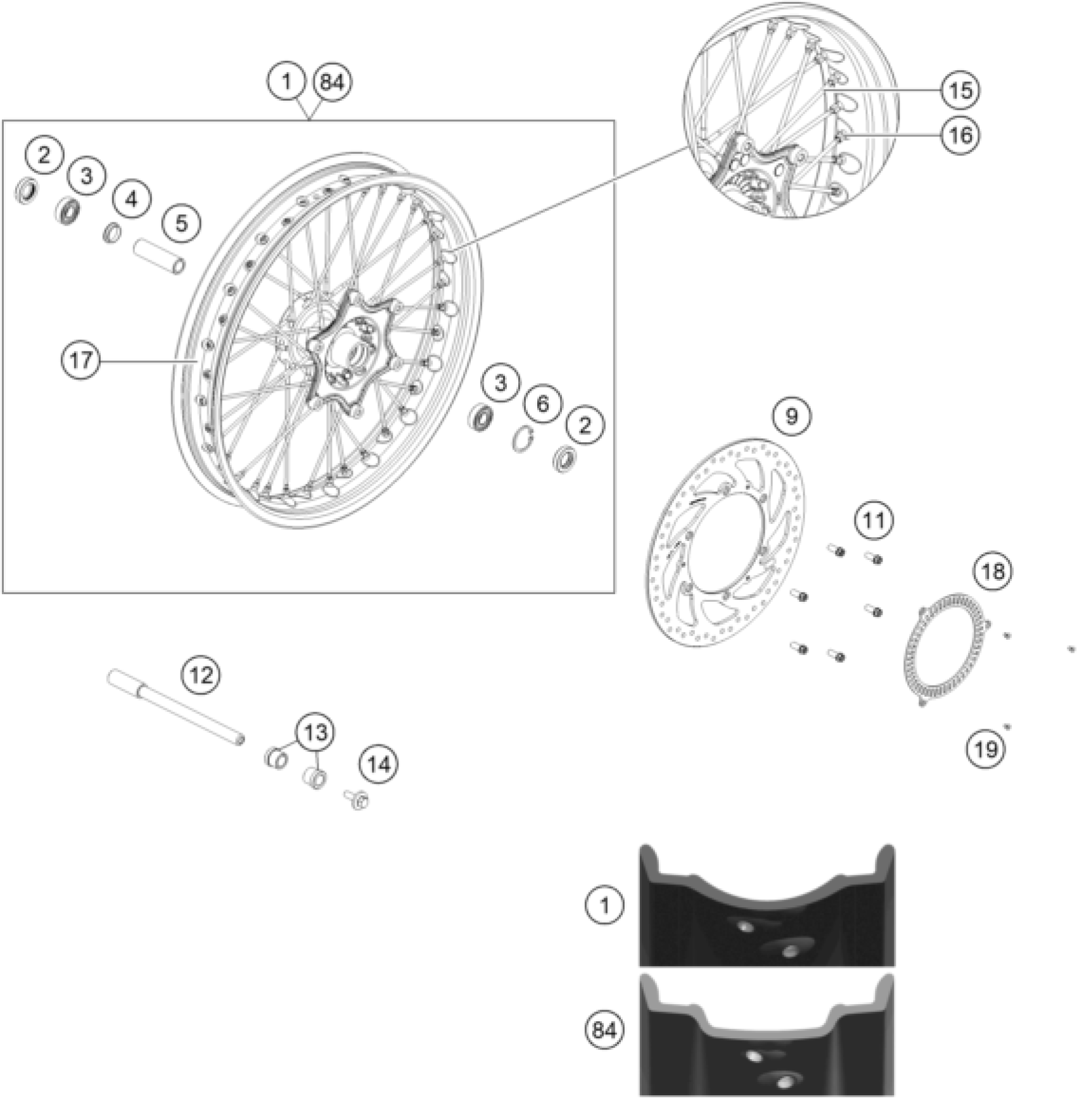

KTM 390 ADVENTURE SPOKE W, orange 2024 FRONT WHEEL Diagram

#

Description
Price

1

Front wheel

95809002133C1

$490.44

2

SHAFT SEAL RING 22X35X8

J760223508

$3.08

3

BALL BEARING 6202

J625062023

$11.40

4

Fixation bearing spacer tube

90109011001

$1.49

5

Spacer front wheel

90109011000

$14.95

6

Lock ring, 35x1.5

J472035156

$1.49

9

disc-brake-front 320 mm

28109060000

$95.55

11

Hex collar screw, M8x20

J025080206

$1.49

12

Front axle

93009081000

$20.19

13

Spacer, front wheel

28109083000

$10.93

14

flanged bolt M8

90109082000

$4.11

15

Spoke M5 / 3.9 x 197.3

95809071197C1

$1.69

16

Spoke nipple M5x0.8

28510072100

$2.05

17

Tube protector 19”/35 1350

95809973000

$10.84

18

Sensor wheel ABS front

28142020000

$12.80

19

Countersunk screw, M4X08

J07046040086

$1.49

84

Front wheel 2.5x19" cmpl. GIAN

95809102044C1

Unavailable
