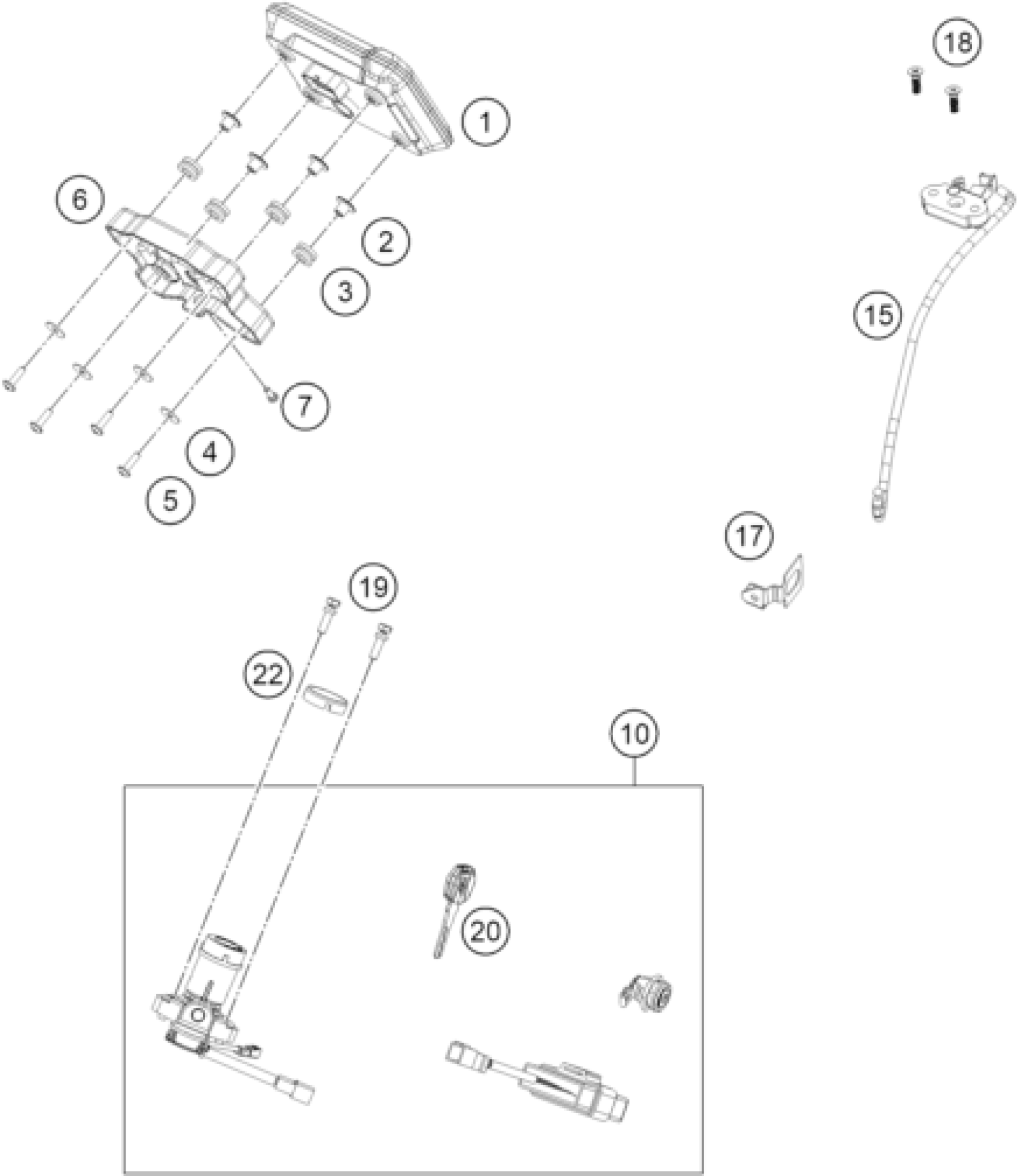

KTM 390 ADVENTURE R 2025 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

3

RUBBER SLEEVE

90507040001

$1.49

4

Washer, license plate holder s

93308015010

$1.49

2

Collar TFT speedo small

93014062010

$2.05

5

Roundhead screw M5X18

J031060183

$1.49

1

INSTRUMENT CLUSTER

A60114069000

Unavailable

6

HOLDER INSTRUMENT CLUSTER

A60114060000

Unavailable

15

LATCH SEAT

A60107050044

Unavailable

17

seat lock bracket

96307051000

Unavailable

18

AH SCREW M6X1X20

90508006003

$4.11

10

SET LOCK

A60111066044

Unavailable

20

KTM Blank key

96312026000

Unavailable

22

grommet cover switch ignition

96311066010

Unavailable

19

bolt shear M6x1

J9000006020U0

Unavailable

7

SCREW TORX M6X1

J9000006024U0

Unavailable

20

KTM CUT Key

96312026010

Unavailable
