FRAME

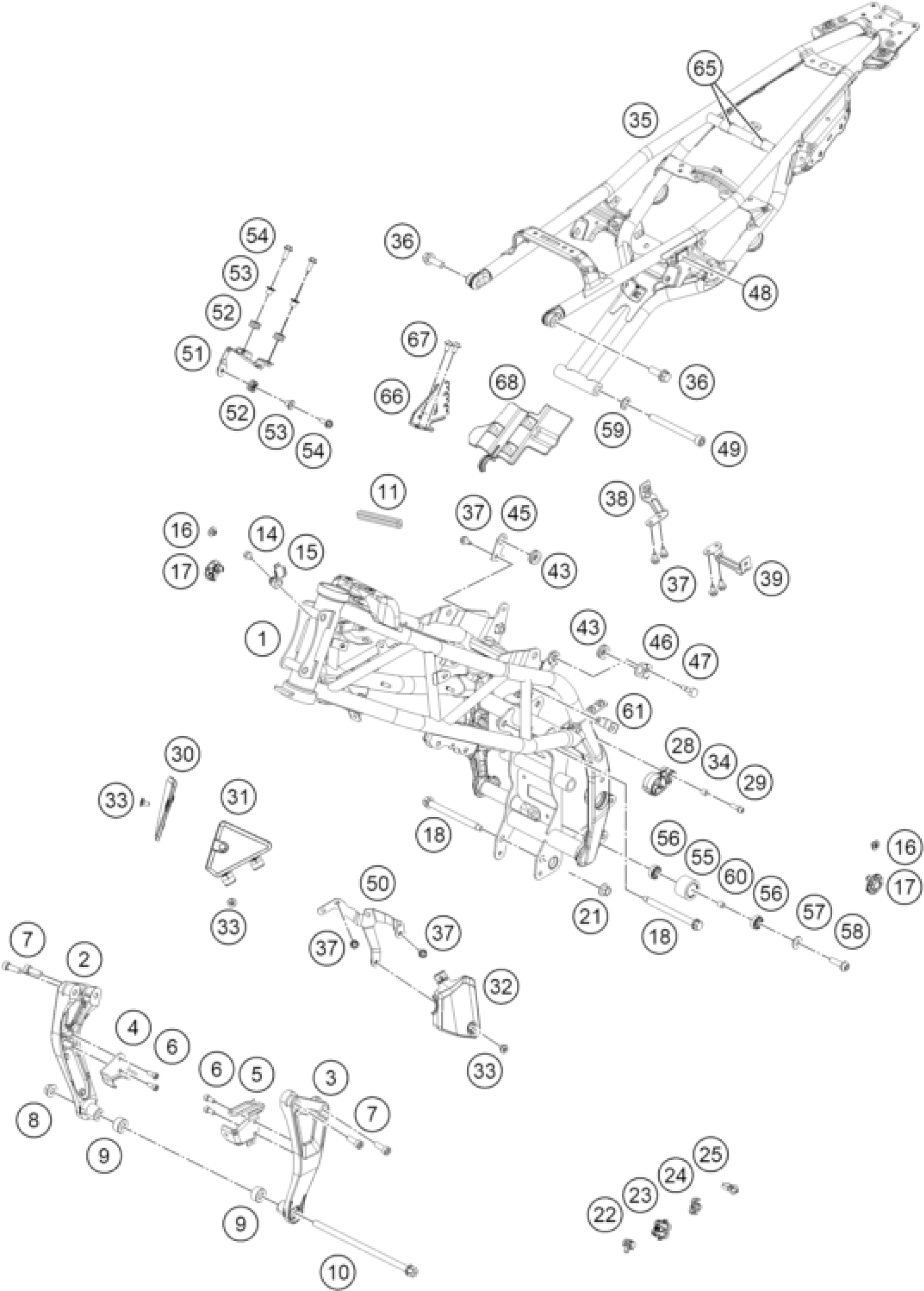

KTM 390 ADVENTURE R 2025 FRAME Diagram
#
1
FRAME ASSEMBLY FRONT
A60303001044EB
Unavailable
31
frame cover left front
96303083010
Unavailable
30
frame cover right front
96303083020
Unavailable
32
Frame cover left
96303083030
Unavailable
33
SCREW SOCKET STEP M6X1
J900000601207
Unavailable
3
ENGINE HANGER LH JP113409 BLK
96303005000C1
Unavailable
2
ENGINE HANGER RH JP113410 BLK
96303006000C1
Unavailable
5
Radiator bracket left
96335001010
Unavailable
4
Horn bracket preass.
A61711061033
Unavailable
6
Hexagon socket screw, M6X14
J912060146
Unavailable
18
bolt flanged M10x112
J900001011000
Unavailable
9
Spacer
J800001001200
Unavailable
10
bolt flanged M10x224
J900001022400
Unavailable
21
NUT-U-M10X1,25XA/F 17
90803009000
Unavailable
8
nut hex flanged M10x1.25
J910001001001
Unavailable
7
BOLT SOCKET M8X1.25
J900000803004
Unavailable
28
GUARD CHAIN
96303070000
Unavailable
34
Sleeve
J800000601200
Unavailable
29
screw button head M6x1
J900000602100
Unavailable
16
Clip
90108023100
$1.49
17
Plug
96303088000
Unavailable
11
Beading
96303001020
Unavailable
15
hose bracket
96303099000
Unavailable
14
bolt flanged M6x1
J900000600802
Unavailable
22
plastic cable clip 2x6,5
J340001000700
Unavailable
24
Brake hose bracket
94513026000
$2.05
25
Cable tie
93803001022
Unavailable
35
FRAME ASSEMBLY REAR
A60103002000C1
Unavailable
48
SEAT DUMPER SOZIUS SEAT
90507047041
$3.08
36
bolt flanged M10x30
J900001003005
Unavailable
47
BOLT M8X1.25
J900000802300
Unavailable
49
bolt socket M10x1.25
J900001011800
Unavailable
37
bolt flanged M6x12
J900000601205
Unavailable
43
GROMMET
J650002201400
$1.49
39
BRACKET COVER REAR LH
A60303001083
Unavailable
38
BRACKET COVER REAR RH
A60303001081
Unavailable
45
BRACKET COVER TANK FRONT RH
A60103001072
Unavailable
46
BRACKET COVER TANK FRONT LH
A60103001073
Unavailable
50
BRACKET DUCT INTAKE FRONT
A60103001046
Unavailable
51
6-D sensor retaining bracket
96342091010
Unavailable
52
grommet
J650001801400
$1.49
53
collar number plate mounting
J800000601000
$1.49
54
hexagon socket screw M6X18
J912060183
$1.49
55
Bearing support
A60103072010
Unavailable
56
BALL BEARING 608
J625060800
$7.94
57
WASHER SHIFTING LEVER
90534031020
$2.05
59
WASHER PLAIN
J690001016000
Unavailable
60
Spacer
A60103072020
Unavailable
58
BOLT SHIFT LEVER
90534034300
$3.08
61
BRACKET COUPLER
A60103001048
Unavailable
66
HOLDER ASSEMBLY COUPLER
A60111046000
Unavailable
67
SOCKET HEAD BOLT M6X12
90508006001
$1.49
65
PROTECTOR TUBE
A60103002010
Unavailable
68
COVER SHEATH
A60103002020
Unavailable
