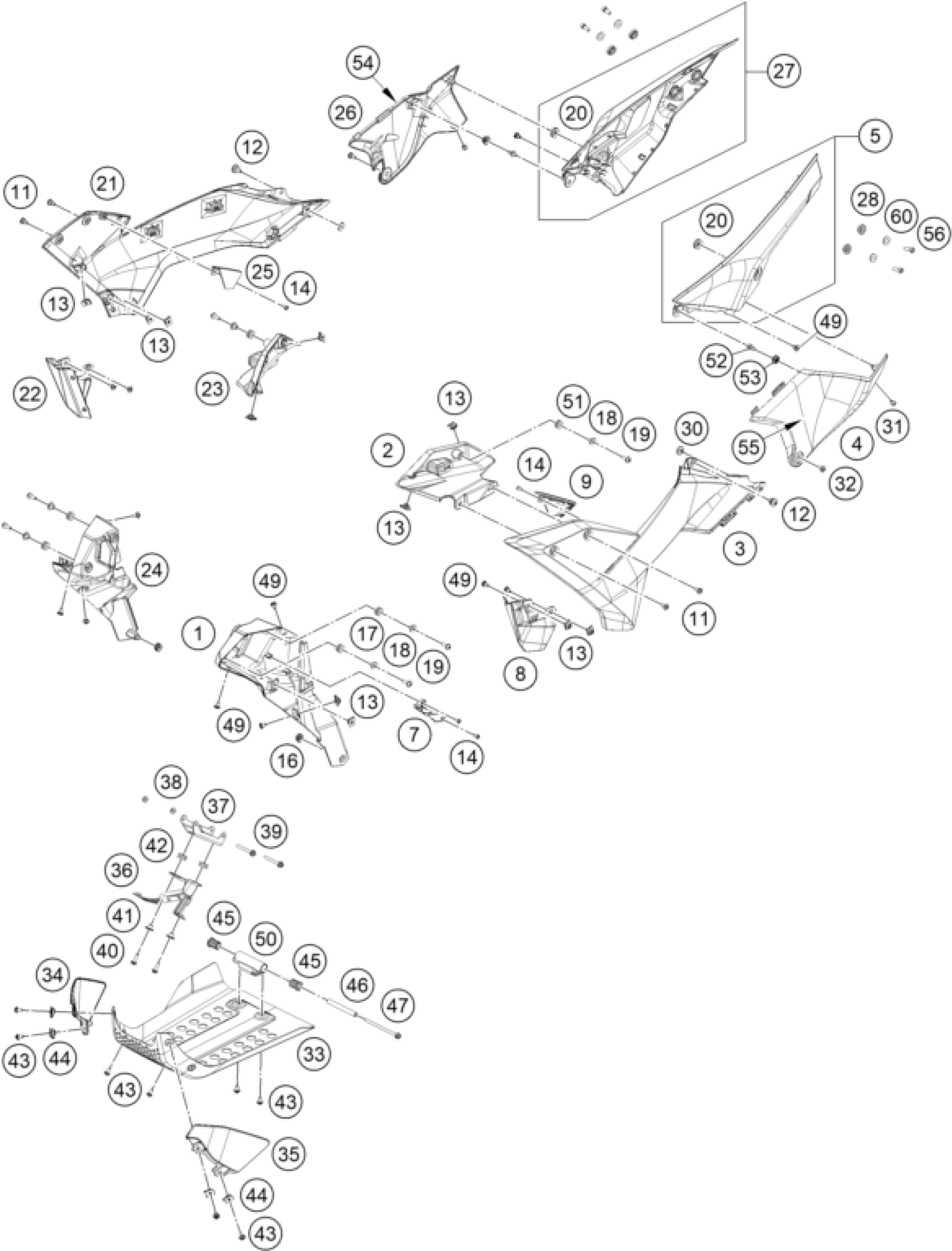

KTM 390 ADVENTURE R 2025 COVER Diagram

#

Description
Price

33

BELLY PAN

A60103090000

Unavailable

34

COVER BELLY PAN RH

A60103090020

Unavailable

35

COVER BELLY PAN LH

A60103090010

Unavailable

36

BRACKET ASSEMBLY BELLY PAN FRO

A60103090030

Unavailable

37

BRACKET BELLY PAN FRONT UPPER

A61708021020

Unavailable

39

BOLT FLANGED M6X1

J900000605007

Unavailable

38

Hex collar nut M6

J910000600601

Unavailable

41

distance sleeve

93035065030

$1.49

42

Rubber bushing

93008028050

$1.49

40

socket screw M6x20

J900000602005

Unavailable

43

Allen head screw M6x12

J900000601206

$1.49

50

BRACKET ASSEMBLY BELLY PAN REA

A61308021030

Unavailable

45

DAMPER

A61308021040

Unavailable

46

SLEEVE

J800000709000

Unavailable

47

BOLT FLANGED M6X1

J900000610501

Unavailable

1

Inner cover left

A60108027000

Unavailable

24

Inner cover right

A60108026000

Unavailable

17

Rubber bushing

93014017000

$1.49

18

Collar head lamp holder MTG

93014018100

$1.49

7

BRACKET UNIT CONNECTIVITY

A60108027100

Unavailable

14

SELF TAPPING SCREW K50X12 T20

J081050121

$2.05

23

HOLDER INDICATOR RH

A60108004000

Unavailable

51

DAMPER

J650000800300

Unavailable

2

HOLDER INDICATOR LH

A60108003000

Unavailable

19

BOLT SOCKET M5X0.8

J912050143

Unavailable

5

ADV390 S SEATCOWL LH LOWER+UP

A60108019010ABA

Unavailable

28

COLLAR

J800000900800

Unavailable

27

ADV390 S SEATCOWL LH LOWER+UP

A60108019020ABA

Unavailable

20

GROMMET

J650002201400

$1.49

49

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

52

PIN QUICK RELEASE

A60107044000

Unavailable

26

COVER SIDE RH

A60108042000AB

Unavailable

4

COVER SIDE LH

A60108041000AB

Unavailable

53

Rubber grommet ignition lock c

93011068010

$1.49

32

XY

Unavailable

31

RIVET

93814050000

$1.49

3

SPOILER TANK OUTER LH

A60108050000ABB

Unavailable

9

SPOILER TANK INNER LH

A60108050010

Unavailable

8

COVER RADIATOR LH

A60135034000

Unavailable

21

SPOILER TANK OUTER RH

A60108051000ABB

Unavailable

25

SPOILER TANK INNER RH

A60108051010

Unavailable

22

COVER RADIATOR RH

A60135035000

Unavailable

44

Clip nut M6

93003077000

$2.05

11

special screw M6x15-8.8-hexago

J900000600904

Unavailable

12

SCREW BUTTON HEAD STEP M6X1

J9000006018U0

Unavailable

13

Range change metal nut M6

93008084010

$1.49

16

Rubber grommet

J650002001400

$1.49

56

Cylinder head screw with ISK M

J900000802202

Unavailable

60

Washer 17x24x2

J690001720000

Unavailable

55

Sticker, cover left

A60308080000

Unavailable

54

Sticker, cover right

A60308081000

Unavailable
