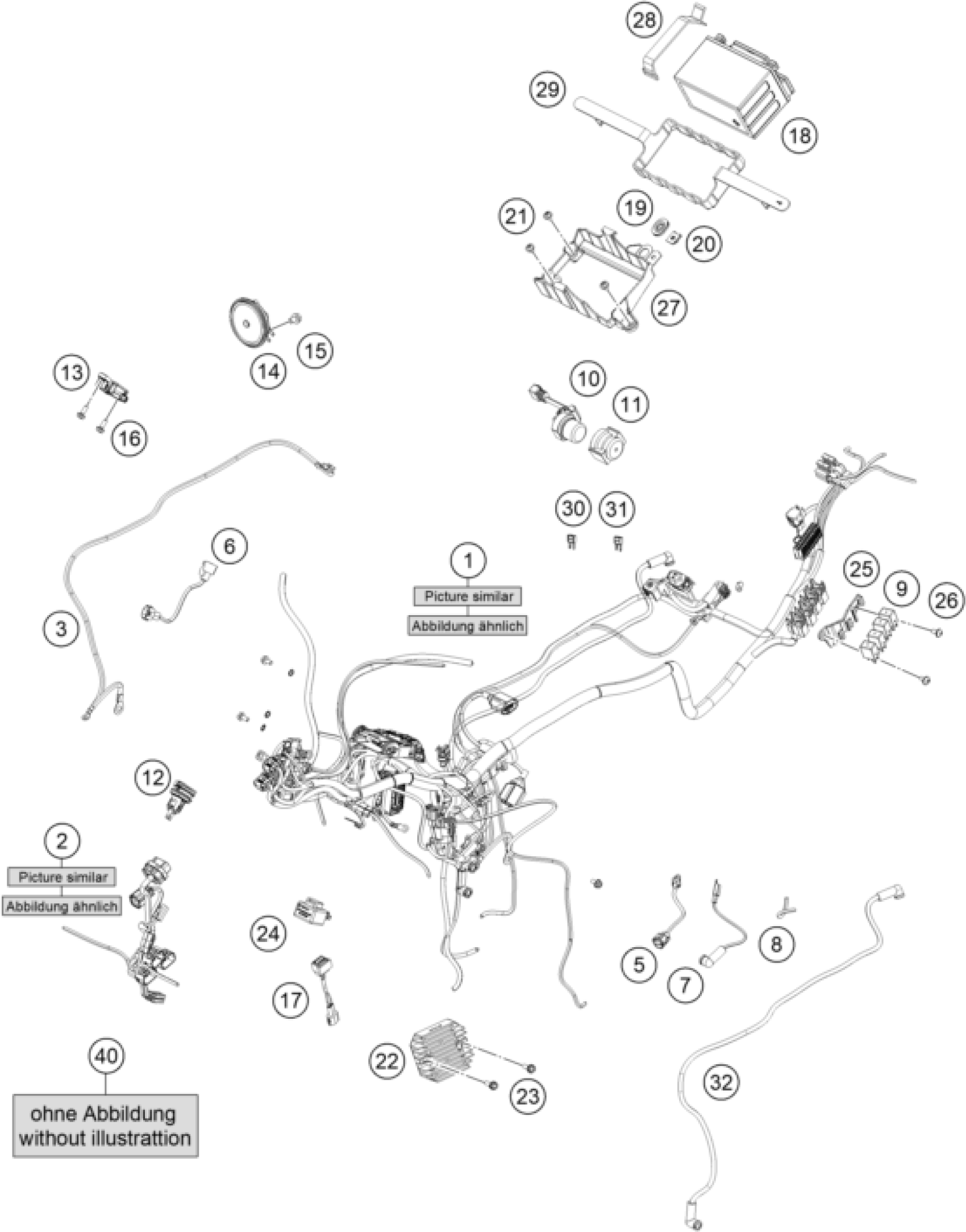

KTM 390 Adventure, orange 2020 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

95811075000

Unavailable

3

Earth wire

95811097000

Unavailable

6

Cable

93041080050

Unavailable

7

Pigteil oil pressure switch

93038091000

Unavailable

8

PIGTAIL PH-3 FUEL PUMP

93511084000

Unavailable

5

wiring harness temperatur sens

93811099000

Unavailable

2

Wiring harness mask

95811078000

Unavailable

13

SENSOR LEAN ANGLE

95842090000

Unavailable

22

voltage regulator

90511034000

Unavailable

16

bolt flanged-m6x1xl16xcl8.8xbl

J025060167

Unavailable

23

FLANGED BOLT M6X30 WS10

J025060303

Unavailable

24

indicator relay

90511030000

Unavailable

17

Transil unit

28111096000

Unavailable

18

BATTERY 12V/8AH

90611053000

Unavailable

14

Horn

95811060100

Unavailable

15

HH COLLAR SCREW M8X12 SW12

J025080123

Unavailable

9

relay (interlock)

90611057000

Unavailable

10

Starter relais

93011058000

Unavailable

11

Rubber grommet, starter relay

95811058050

Unavailable

25

Relay bracket

95811031000

Unavailable

26

SOCKET HEAD BOLT M6X12

90508006001

Unavailable

20

Range change metal nut M6

93008084010

Unavailable

27

battery holder plate

95811055000

Unavailable

21

SPECIAL SCREW M6X1X10

90808073000

Unavailable

19

Rubber grommet

95811055010

Unavailable

28

Battery retaining pin top

95811055070

Unavailable

29

Battery retaining pin

95811055060

Unavailable

30

Fuse 10a

93511088000

Unavailable

31

FUSE 15A 07

75011088015

Unavailable

40

Cable earth ABS

93042033000

Unavailable

12

Power socket, cmpl.

95811042033

Unavailable

32

Starter cable

95811059000

Unavailable
