Description

Price

2

FUEL INJECTOR

90241023000

$130.52

3

INJECTOR CLIP

90141001001

$3.08

5

Pressure sensor

93041085000

$65.16

10

rubber band, ECU

93841036000

$22.99

8

DAMPER ECU

93541034000

$11.49

6

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

7

Sleeve

93041029020

$1.49

9

Hexagonal bolt M6x14

J933060146

$1.49

15

PIPE INTAKE

90241002000

$29.35

16

O-RING 53X2,4

J770053024

$4.11

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

12

Rubber cowl pad

93041030100

$2.05

17

Bump rubber ECU support

93011038000

$4.11

11

Control unit bracket

93041029000

$7.38

13

Engine control unit

94341031000

$327.71

1

Throttle valve body

95841001000

$572.59

18

O-ring

55641023020

$10.56

19

O-ring

55641023010

$7.66

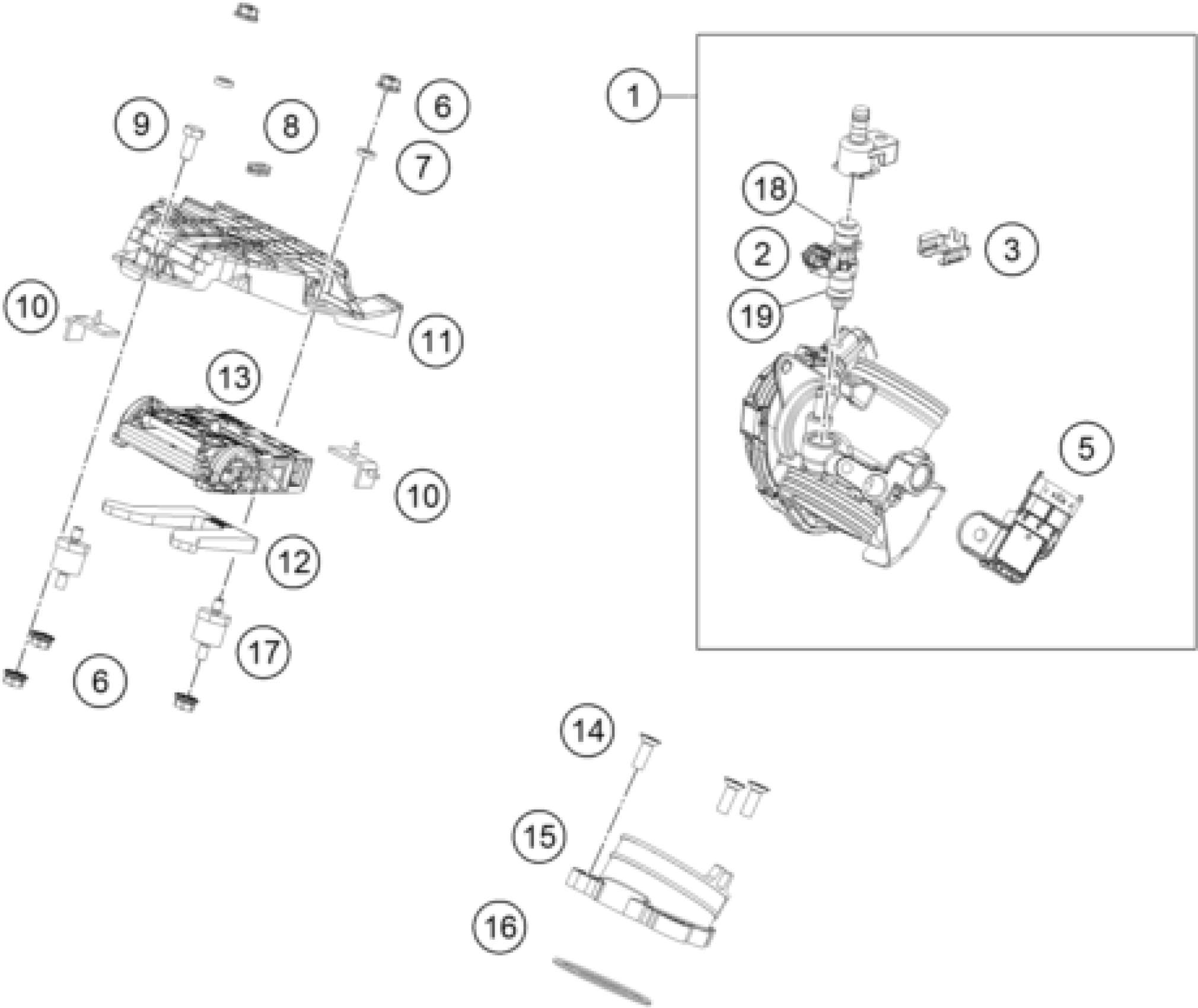

KTM 390 Adventure, orange 2020 THROTTLE BODY Diagram

FUEL INJECTOR

INJECTOR CLIP

Pressure sensor

rubber band, ECU

DAMPER ECU

FLANGED NUT M6 WS10 SELF LOCK.

Sleeve

Hexagonal bolt M6x14

PIPE INTAKE

O-RING 53X2,4

COUNTERSUNK SCREW M6X20

Rubber cowl pad

Bump rubber ECU support

Control unit bracket

Engine control unit

Throttle valve body

O-ring

O-ring
