Description

Price

4

Air filter box cover

93006002000

$10.46

3

Seal

93006020050

$1.49

2

FILTER

93006015000

$22.24

5

Flat-head screw M6

93006039000

$1.49

7

Intake snorkel

95806040000

$15.14

6

Carburetor connection boot

93006001060

$2.05

8

Damping rubber

93006001080

$1.49

25

hose clamp

90241002010

$5.23

16

SILENT BLOCK AIRFILTER

90106001007

$5.88

14

Rubber cowl pad

93006001015

$1.49

17

Hex collar screw. M8x23.5

J025080246

$2.05

22

Washer, M6

J125060004

$1.49

18

SOCKET HEAD BOLT M6X12

90508006001

$1.49

19

Engine vent hose

93030087050

$3.08

12

HOSE CLAMP

90130087001

$3.08

11

Engine vent hose

93030088050

$22.71

26

CLAMP 16MM

90607017000

$5.23

13

Plug

93030089000

$1.49

23

bolt-flanged-small

J025060082

$1.49

10

TMAP-SENSOR

90141071000

$79.19

9

Lens head screw M6X10

J031060103

$1.49

15

Distance piece air filter box

93006021000

$1.49

1

Air filter box

94306001000

$53.10

21

Retaining bracket, air filter

95803002021

$2.05

24

CONNECTING TUBE

93306026000

$14.58

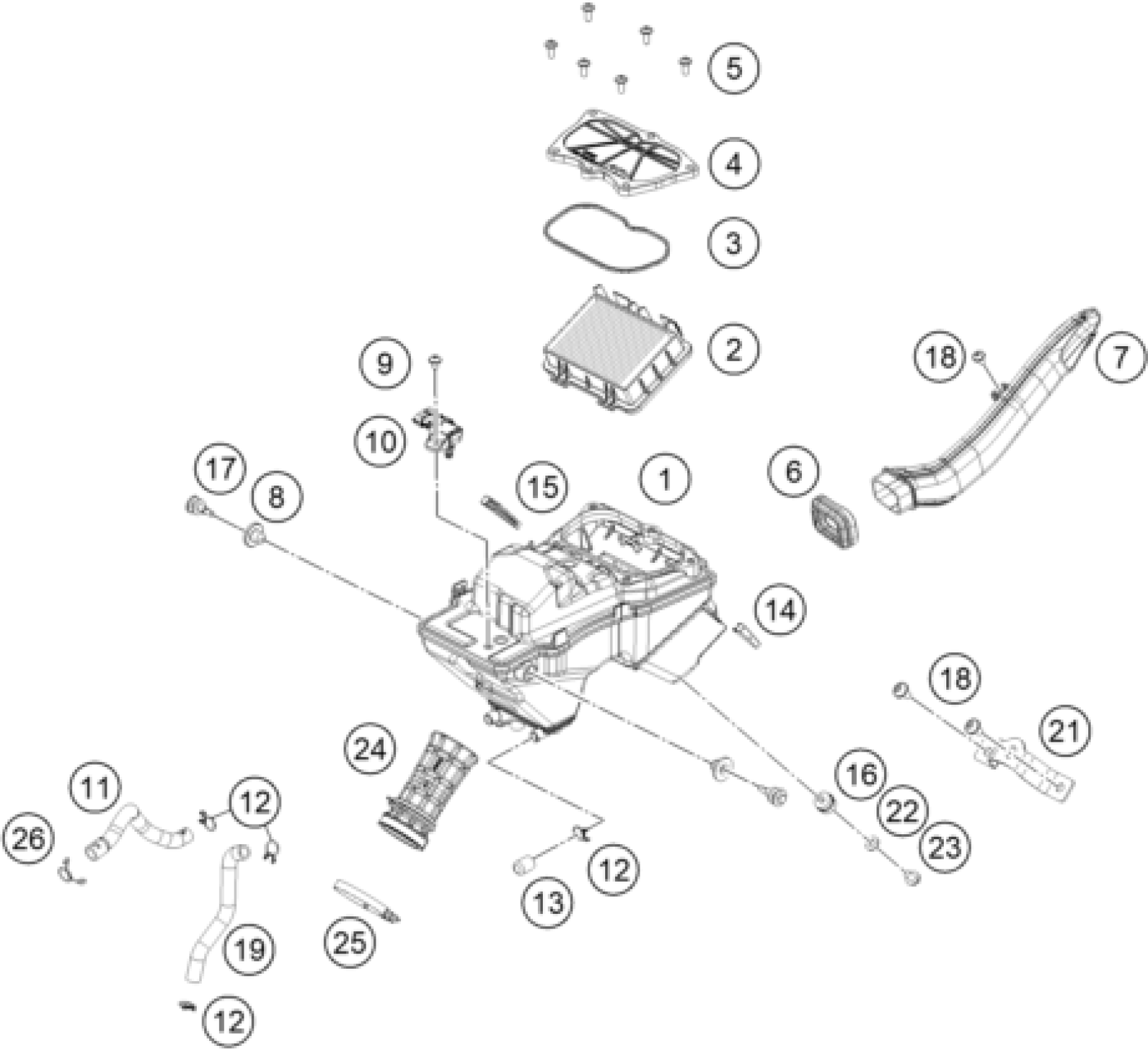

KTM 390 Adventure, orange 2020 AIR FILTER Diagram

Air filter box cover

Seal

FILTER

Flat-head screw M6

Intake snorkel

Carburetor connection boot

Damping rubber

hose clamp

SILENT BLOCK AIRFILTER

Rubber cowl pad

Hex collar screw. M8x23.5

Washer, M6

SOCKET HEAD BOLT M6X12

Engine vent hose

HOSE CLAMP

Engine vent hose

CLAMP 16MM

Plug

bolt-flanged-small

TMAP-SENSOR

Lens head screw M6X10

Distance piece air filter box

Air filter box

Retaining bracket, air filter

CONNECTING TUBE
