Description

Price

5

Brake line, ABS, front master

95842003000

$123.41

6

Brake line, front brake calipe

95842004000

$134.26

7

Brake line, ABS, rear master c

95842002000

$122.10

8

Brake line, rear brake caliper

95842001000

$174.28

2

COPPER GASKET

90113026000

$2.05

3

BANJO SCREW

90113013000

$3.08

4

Switch Brake

28111051000

$27.57

1

ABS modulator

95842031044

$1,718.33

9

SENSORRING ABS

93042020000

$5.23

15

SENSOR DISC REAR

90142021000

$8.13

11

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

14

SCREW FOR ABS

90142021001

$1.49

10

ABS SENSOR

90142125000

$70.21

19

brake hose clamp

93813024000

$1.49

20

HH COLLAR SCREW M6X20

J025060209

$1.49

22

CLAMP FOR BRAKE HOSE

93813147000

$1.49

21

CLAMP SENSOR CABLE

93813035000

$1.49

23

Retaining bracket

93041030020

$5.23

26

bolt-flanged-small

J025060082

$1.49

24

silentbloc M6

90135001001

$5.32

27

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

25

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

16

bolt-flange-kae st-f dia-06 l-

J000150601200

$1.49

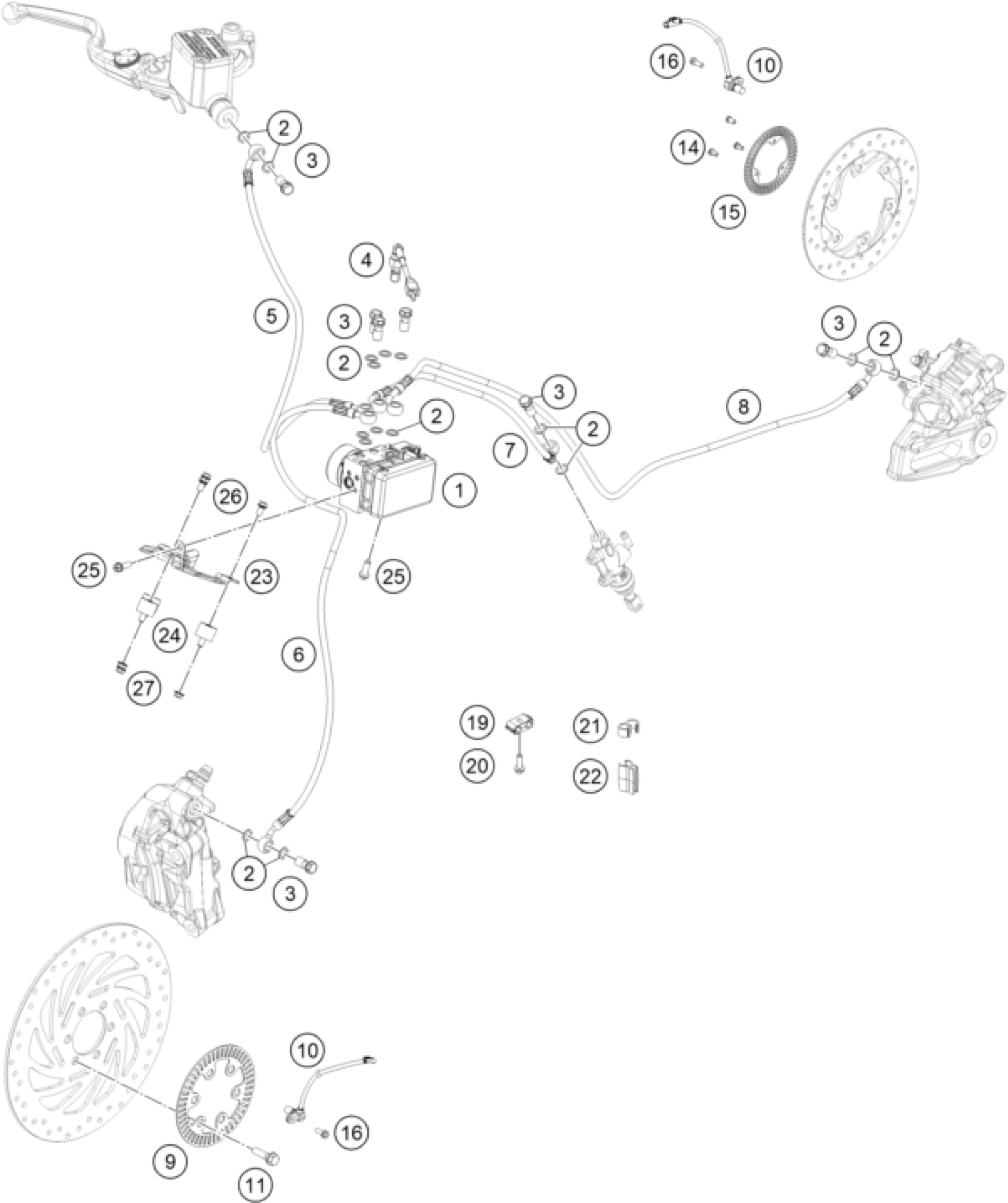

KTM 390 Adventure, orange 2020 ABS Diagram

Brake line, ABS, front master

Brake line, front brake calipe

Brake line, ABS, rear master c

Brake line, rear brake caliper

COPPER GASKET

BANJO SCREW

Switch Brake

ABS modulator

SENSORRING ABS

SENSOR DISC REAR

SPECIAL SCREW M8X25 SELF LOCK.

SCREW FOR ABS

ABS SENSOR

brake hose clamp

HH COLLAR SCREW M6X20

CLAMP FOR BRAKE HOSE

CLAMP SENSOR CABLE

Retaining bracket

bolt-flanged-small

silentbloc M6

FLANGED NUT M6 WS10 SELF LOCK.

HH-COLLAR SCREW M6X10 SW8

bolt-flange-kae st-f dia-06 l-
