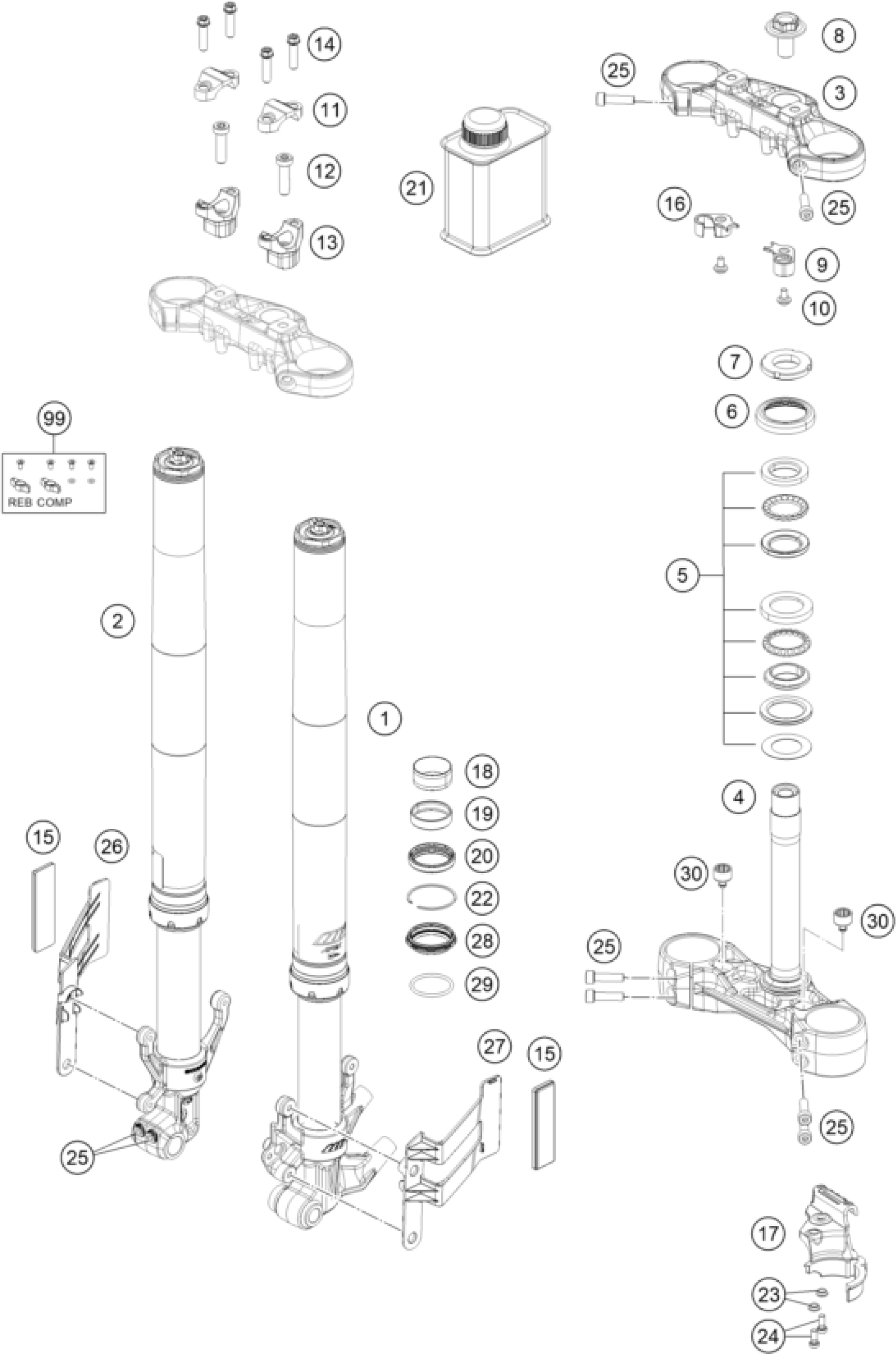

KTM 390 ADVENTURE, black 2024 FRONT FORK, TRIPLE CLAMP Diagram

Fork leg left

95801001000

$680.30

Fork leg right

95801002000

$680.30

Top triple clamp

95801034033

$245.62

assembly lower triple clamp GD

93001032133

$242.90

STEERING HEAD BEARING-KIT

90101080044

$33.65

protection cap

90101086000

$3.08

Adjusting ring steering head

90101036100

$5.23

steering head screw

90501044000

$13.92

Brake hose bracket left

95801070000

$1.49

Screw M6X1X9

93008020060

$2.05

HANDLE HOLDR UPPR JG151043 PC

95801038000C1

Unavailable

bolt socket-m10x1.25xl 30xbrig

J912100303

$2.05

Handlebar mount, 41 mm

95801039041

$8.59

Bolt socket-M8X1.25Xl 29Xblack

J912080293

$2.05

SIDE REFLECTOR FRONT

90512082000

$5.23

Clutch cable wire bracket righ

95801071000

$1.49

Hose clamp

93013055000

$3.08

GUIDE BUSH LOWER

43578014

$16.45

GUIDE BUSH UPPER

43578016

$16.35

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

FORK OIL SAE5 5L 2008

48600765S1

Unavailable

CIRCLIP

43578044

$4.11

sleeve for hose clamp

90113055010

$1.49

AH SCREW M6X15 10.9

J021060156

$1.49

AH SCREW M8X1.25X30

90501045000

$1.49

Reflector holder right

95812084000

$3.08

Reflector holder left

95812083000

$3.08

Dirt scarper SKF 43mm black

43570624

$16.73

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

Rubber bushing

93014015000

$1.49

Adjuster kit screw cap

RP10021

Unavailable
