Description

Price

1

BODY THROTTLE ASSEMBLY

95841001133

$493.20

2

FUEL INJECTOR

90241023000

$130.52

3

INJECTOR CLIP

90141001001

$3.08

5

Pressure sensor

93041085000

$65.16

6

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

7

Sleeve

93041029020

$1.49

8

DAMPER ECU

93541034000

$11.49

9

Hexagonal bolt M6x14

J933060146

$1.49

10

rubber band, ECU

93841036000

$22.99

11

Control unit bracket

93041029000

$7.38

12

Rubber cowl pad

93041030100

$2.05

13

Engine control unit

94341031000

$327.71

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

15

PIPE INTAKE

90241002000

$29.35

16

O-RING 53X2,4

J770053024

$4.11

17

Bump rubber ECU support

93011038000

$4.11

18

O-ring

55641023020

$10.56

19

O-ring

55641023010

$7.66

22

Oetiker clamp D=14

J300000701600

$2.05

20

Connecting piece, fuel line

95841037000

$1.49

23

Angle piece

28107028000

$13.64

21

PIPE FUEL

J600000823100

$17.48

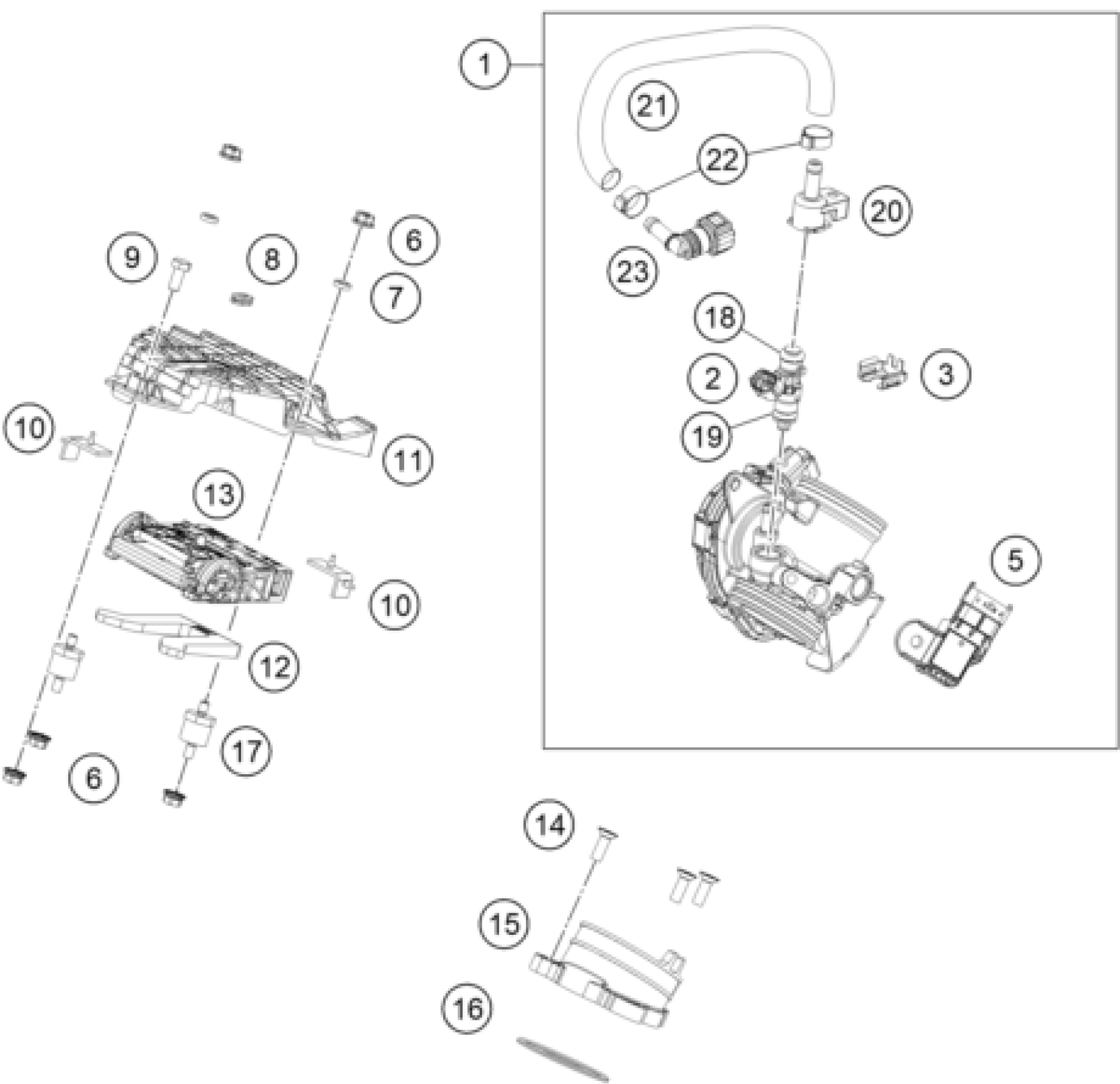

KTM 390 ADVENTURE, black 2022 THROTTLE BODY Diagram

BODY THROTTLE ASSEMBLY

FUEL INJECTOR

INJECTOR CLIP

Pressure sensor

FLANGED NUT M6 WS10 SELF LOCK.

Sleeve

DAMPER ECU

Hexagonal bolt M6x14

rubber band, ECU

Control unit bracket

Rubber cowl pad

Engine control unit

COUNTERSUNK SCREW M6X20

PIPE INTAKE

O-RING 53X2,4

Bump rubber ECU support

O-ring

O-ring

Oetiker clamp D=14

Connecting piece, fuel line

Angle piece

PIPE FUEL
