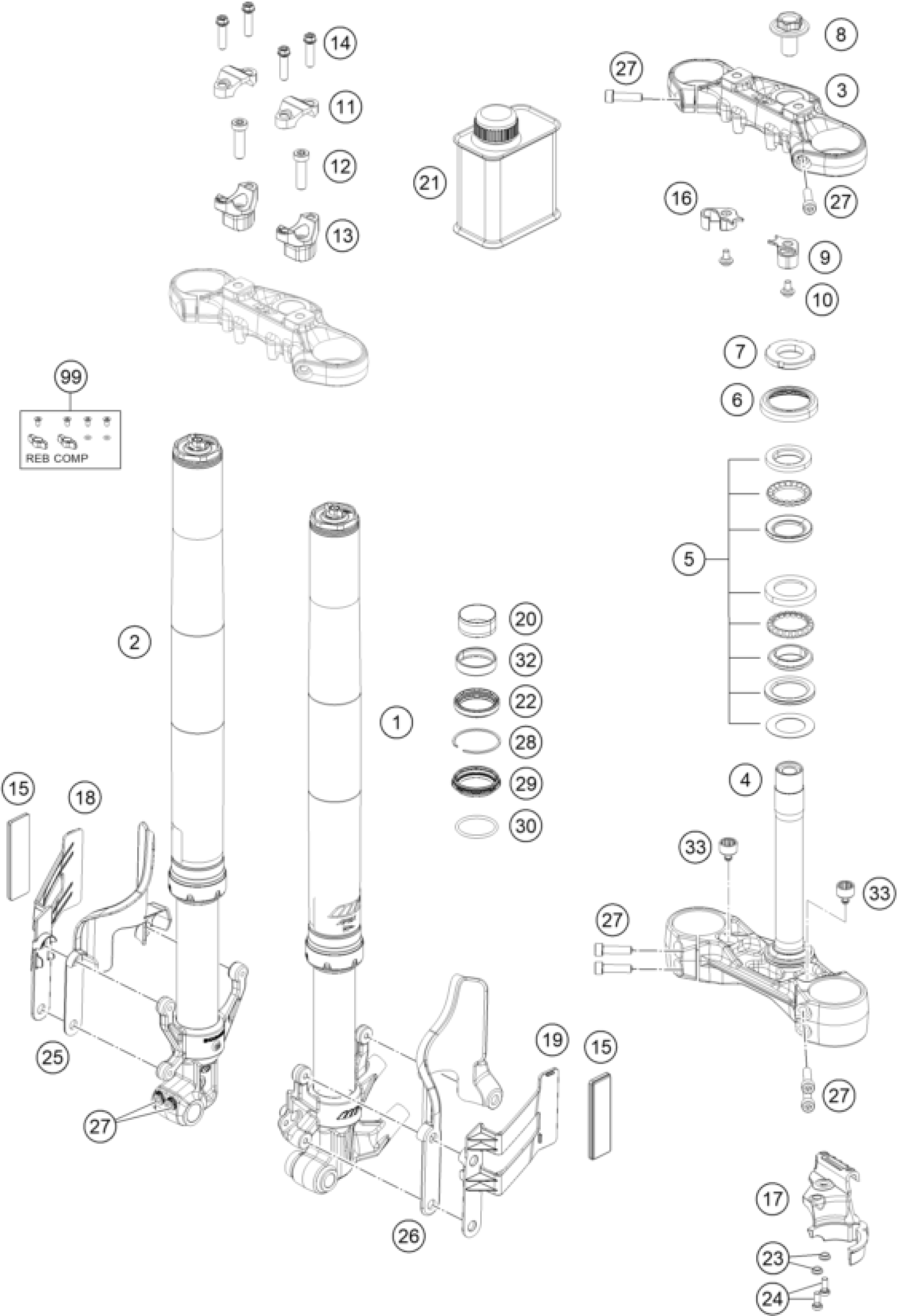

KTM 390 ADVENTURE, black 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

LEG ASSEMBLY LH

95801101000

Unavailable

2

LEG ASSEMBLY RH

95801102000

Unavailable

3

Top triple clamp

95801034033

Unavailable

4

assembly lower triple clamp GD

93001032133

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

Unavailable

7

Adjusting ring steering head

90101036100

Unavailable

8

steering head screw

90501044000

Unavailable

9

Brake hose bracket left

95801070000

Unavailable

10

Screw M6X1X9

93008020060

Unavailable

11

Handlebar clamp

95801038000

Unavailable

12

bolt socket-m10x1.25xl 30xbrig

J912100303

Unavailable

13

Handlebar mount, 41 mm

95801039041

Unavailable

14

Bolt socket-M8X1.25Xl 29Xblack

J912080293

Unavailable

15

SIDE REFLECTOR FRONT

90512082000

Unavailable

16

Clutch cable wire bracket righ

95801071000

Unavailable

17

Hose clamp

93013055000

Unavailable

18

Reflector holder right

95812084000

Unavailable

19

Reflector holder left

95812083000

Unavailable

20

GUIDE BUSH LOWER

43578014

Unavailable

21

FORK OIL SAE5 5L 2008

48600765S1

Unavailable

22

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

23

sleeve for hose clamp

90113055010

Unavailable

24

AH SCREW M6X15 10.9

J021060156

Unavailable

25

PROTECTOR FORK RH

95812084100

Unavailable

26

PROTECTOR FORK LH

95812083100

Unavailable

27

AH SCREW M8X1.25X30

90501045000

Unavailable

28

CIRCLIP

43578044

Unavailable

29

Dirt scarper SKF 43mm black

43570624

Unavailable

30

O-ring 40x2,5 VMQ70 red ISO 36

43578219

Unavailable

32

GUIDE BUSH UPPER

43578016

Unavailable

33

Rubber bushing

93014015000

Unavailable

99

Adjuster kit screw cap

RP10021

Unavailable
