Description

Price

1

ABS modulator

95842031044

$1,718.33

2

COPPER GASKET

90113026000

$2.05

3

BANJO SCREW

90113013000

$3.08

4

Switch Brake

28111051000

$27.57

5

Brake line, ABS, front master

95842003000

$123.41

6

Brake line, front brake calipe

95842004000

$134.26

7

Brake line, ABS, rear master c

95842002000

$122.10

8

Brake line, rear brake caliper

95842001000

$174.28

9

sensor disc front

95842020000

$10.65

10

ABS SENSOR

90142125000

$70.21

11

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

14

SCREW FOR ABS

90142021001

$1.49

15

SENSOR DISC REAR

90142021000

$8.13

16

bolt-flange-kae st-f dia-06 l-

J000150601200

$1.49

19

brake hose clamp

93813024000

$1.49

20

HH COLLAR SCREW M6X20

J025060209

$1.49

21

CLAMP SENSOR CABLE

93813035000

$1.49

22

CLAMP FOR BRAKE HOSE

93813147000

$1.49

23

Retaining bracket

93041030020

$5.23

24

silentbloc M6

90135001001

$5.32

25

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

26

bolt-flanged-small

J025060082

$1.49

27

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

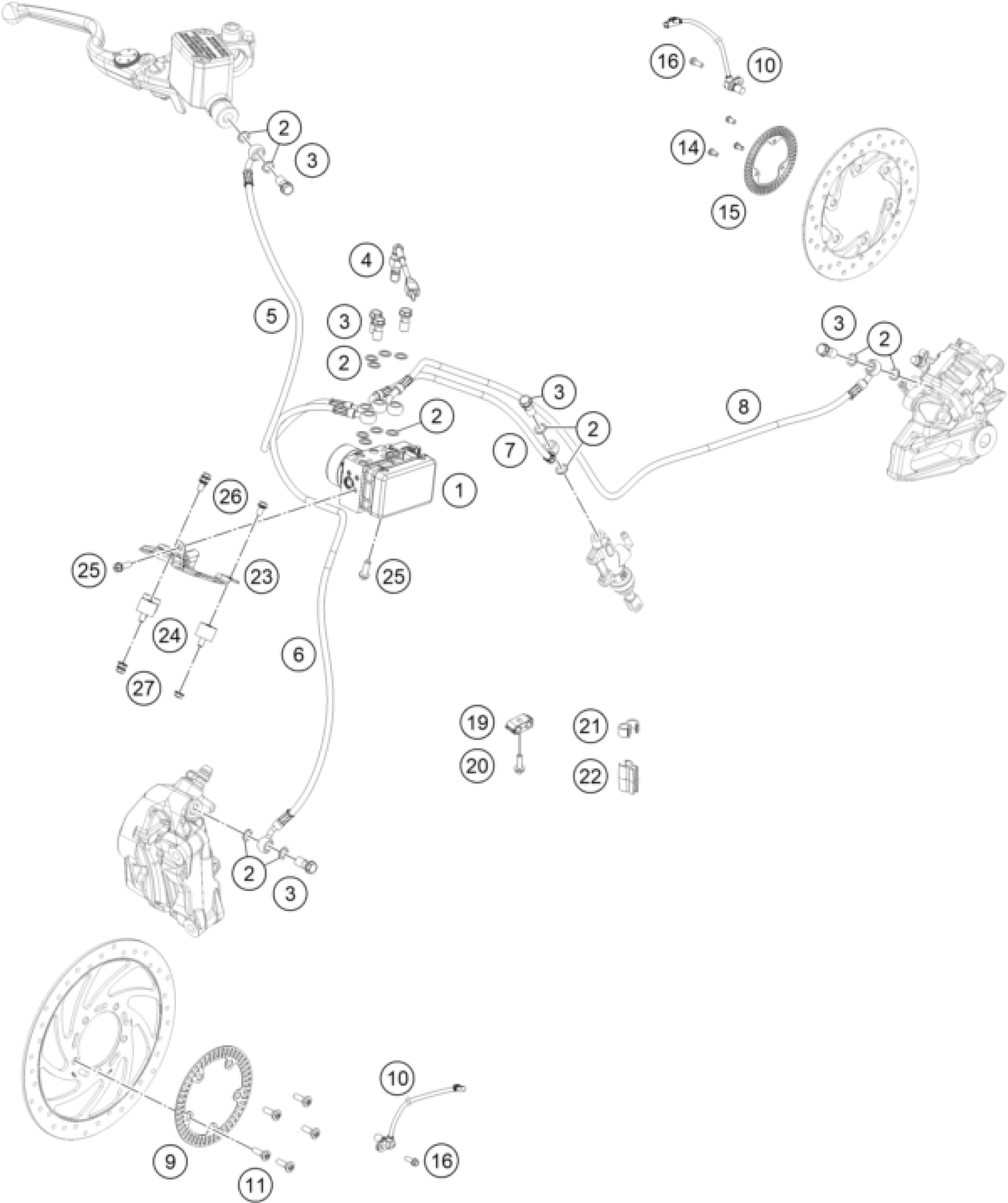

KTM 390 ADVENTURE, black 2022 ABS Diagram

ABS modulator

COPPER GASKET

BANJO SCREW

Switch Brake

Brake line, ABS, front master

Brake line, front brake calipe

Brake line, ABS, rear master c

Brake line, rear brake caliper

sensor disc front

ABS SENSOR

SPECIAL SCREW M8X25 SELF LOCK.

SCREW FOR ABS

SENSOR DISC REAR

bolt-flange-kae st-f dia-06 l-

brake hose clamp

HH COLLAR SCREW M6X20

CLAMP SENSOR CABLE

CLAMP FOR BRAKE HOSE

Retaining bracket

silentbloc M6

HH-COLLAR SCREW M6X10 SW8

bolt-flanged-small

FLANGED NUT M6 WS10 SELF LOCK.
