Description

Price

2

EXHAUST SILENCER 380 SX '98

54705079200

Unavailable

3

EXHAUST SILENCER 380 EXC EU'98

54705081100

Unavailable

4

EX.SILENCER 380 MXC,EXC USA'98

54705082100

Unavailable

5

EXHAUST SILENCER 380 EGS '98

54705083100

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

$2.05

9

RIVET 4,8X10,3 ALU

0011481030

$3.08

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

13

clip nut M6

54603048100

$4.11

14

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

16

% SILENCER CAP PLASTIC

54605379549

Unavailable

16

SILENCER END CAP ALU

54705179070

$29.62

17

SEAL RING VITON D=30MM'97

54605379030

$31.15

18

WASHER D=30MM

54705079047

$7.64

30

PLUG DIN0910-M 10X1

0910100003

$4.11

31

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

38

STUFFING YARN 120 GRAM

58005078120

$39.75

41

STUFFING YARN 340 GRAM

58005078340

$71.62

42

STUFFING YARN 410 GRAMM

58005078410

Unavailable

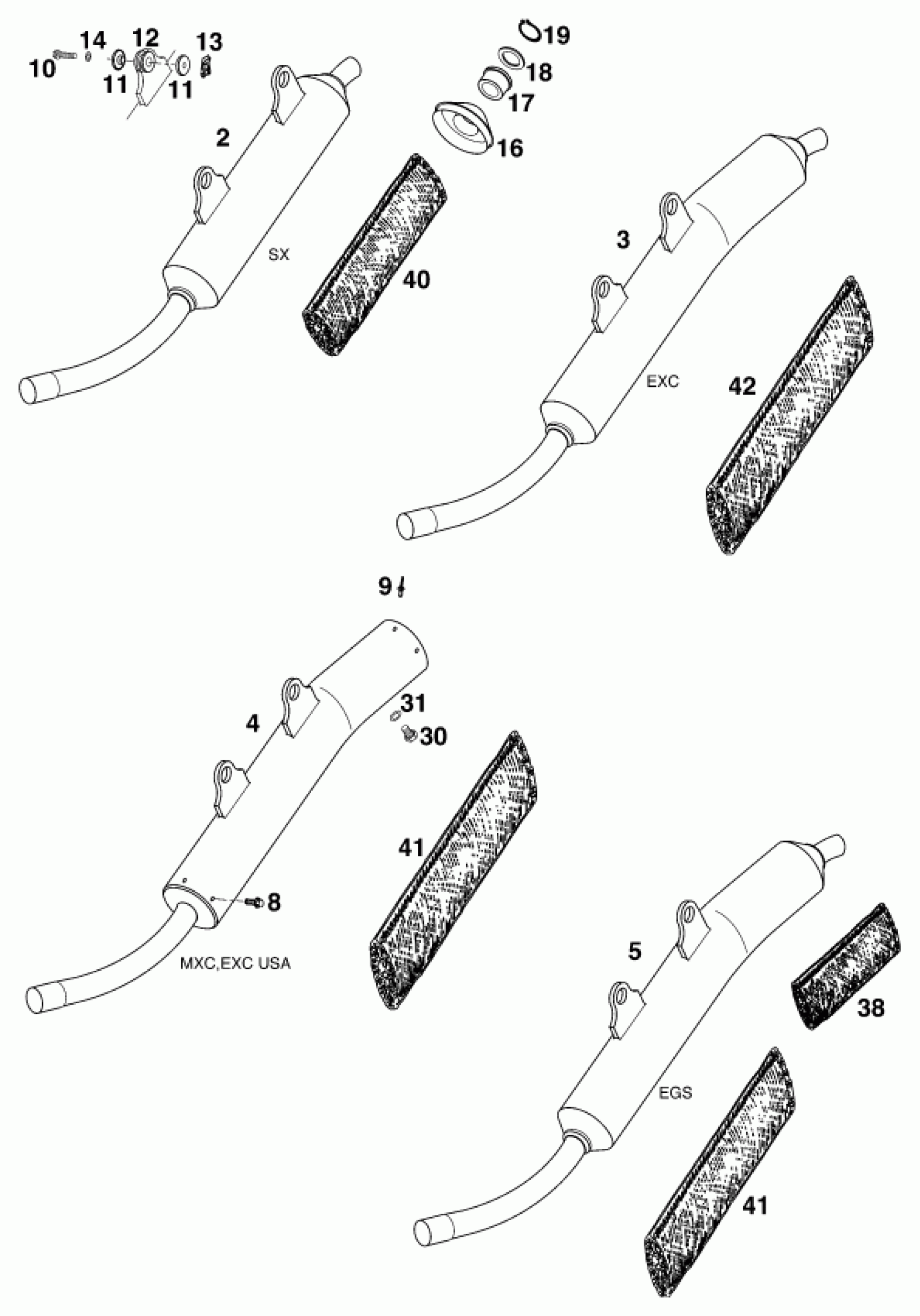

KTM 380 MXC 12lt <1998 MAIN SILENCER Diagram

EXHAUST SILENCER 380 SX '98

EXHAUST SILENCER 380 EXC EU'98

EX.SILENCER 380 MXC,EXC USA'98

EXHAUST SILENCER 380 EGS '98

SPECIAL SCREW M 5,0X10

RIVET 4,8X10,3 ALU

HH COLLAR SCREW M 6X30 SW=8

BUSHING 7,5X12X28X7,8 '96

EXHAUST BRACKET RUBBER BLACK

clip nut M6

SPRING WASHER DIN0137-B 6

% SILENCER CAP PLASTIC

SILENCER END CAP ALU

SEAL RING VITON D=30MM'97

WASHER D=30MM

PLUG DIN0910-M 10X1

CU-SEAL RING DIN7603-10X14X1

STUFFING YARN 120 GRAM

STUFFING YARN 340 GRAM

STUFFING YARN 410 GRAMM
