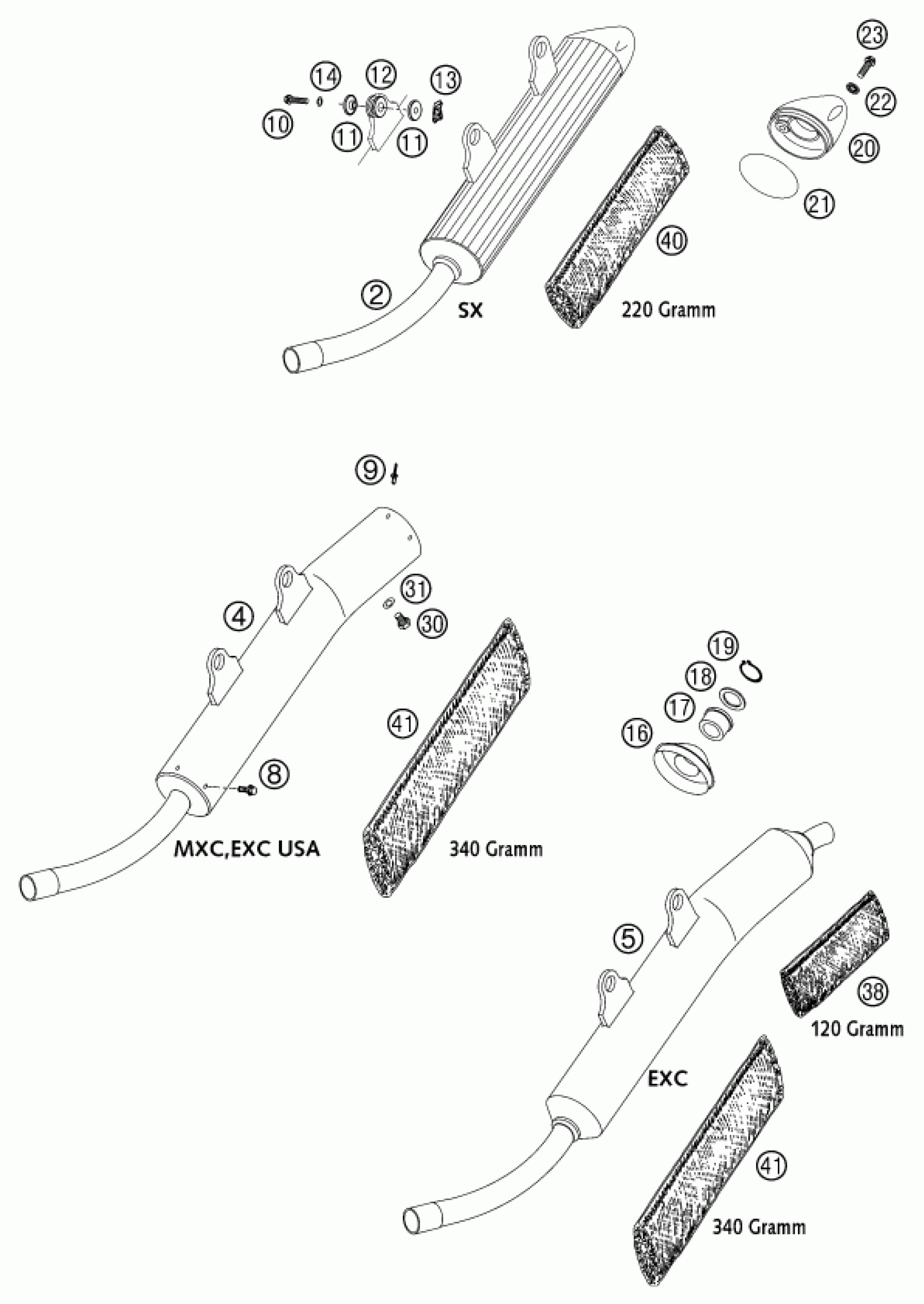

KTM 380 EXC 2002 MAIN SILENCER Diagram

#

Description
Price

2

* EXH. SILENCER 380SX ALU 2000

54705079300

Unavailable

4

EX.SILENCER 380 MXC,EXC USA'98

54705082100

Unavailable

5

EXHAUST SILENCER 380 EGS '98

54705083100

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

$2.05

9

RIVET 4,8X10,3 ALU

0011481030

$3.08

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

13

clip nut M6

54603048100

$4.11

14

spring washer DIN 137 B - 6

0137060003

$2.05

16

SILENCER END CAP ALU

54705179070

$29.62

16

% SILENCER CAP PLASTIC

54605379549

Unavailable

17

SEAL RING VITON D=30MM'97

54605379030

$31.15

18

WASHER D=30MM

54705079047

$7.64

19

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

$7.56

20

SILENCER ENDCAP SX REAR

50305079169

$41.79

21

0-RING 55,00X2,00 NBR70

0770055020

$2.05

22

Pair of washers M6 NORDLOCK

50233041000

$4.11

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

30

PLUG DIN0910-M 10X1

0910100003

$4.11

31

sealing ring DIN 7603 10x14x1

0603100141

$2.05

38

STUFFING YARN 120 GRAM

58005078120

$39.75

40

STUFFING YARN 220 GRAM

50305079220

Unavailable

41

STUFFING YARN 340 GRAM

58005078340

$71.62
