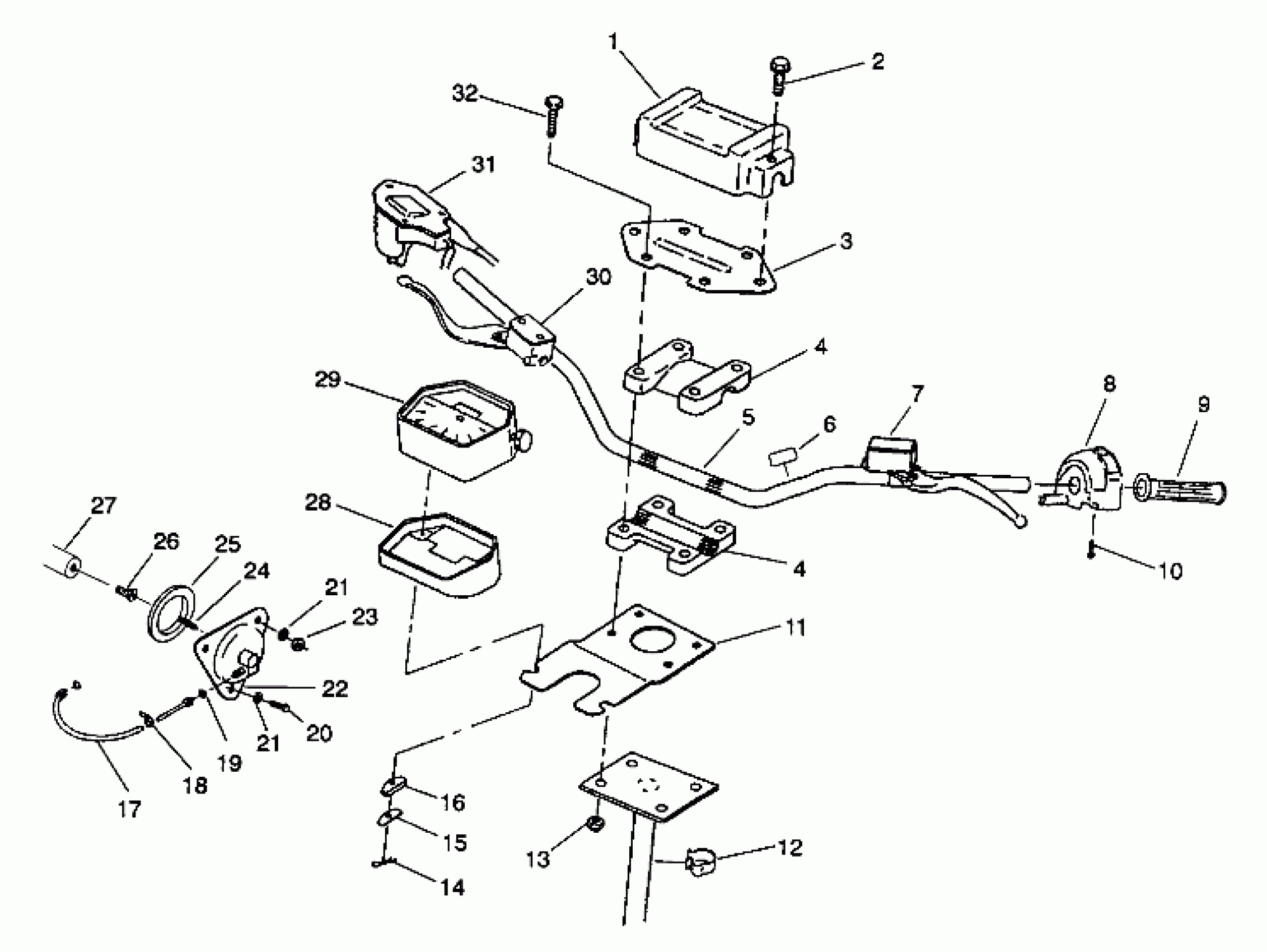

Polaris 350L 6X6 - W938739 STEERING - HANDLEBAR 6X6 350L W938739 (4924062406018A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR

5630187-067

$44.99

4

BLOCK,HANDLEBAR

5630187-067

$44.99

5

TUBE,H'BAR,BLK.

5224460-067

Unavailable

6

DECAL,O'RIDE SW.(4X4) Substituted by 7076273

7072827

Unavailable

7

MASTER CYL.ASM. Substituted by 2050073 (See Controls - Master Cylinder/Brake Line Pg.22)

2050062

$235.51

8

SWITCH,HI-LO-START.

4110149

Unavailable

9

GRIP, HANDLEBAR

5431030

$24.27

10

SCREW

2010055

Unavailable

11

BRACKET,SPEEDO

5222269-067

$15.67

12

CLIP(10)

7080278

$2.63

13

NUT-LOCK(10)

7542122

$1.49

14

HAIRPIN, COTTER(10)

7660701

$1.99

15

PLATE,MTG,(SPEEDO)

5211189

$12.99

16

SPACER,SPEEDO.MTG.

5810442

$10.99

17

CABLE, SPEEDOMETER Substituted by 3280184

3280130

Unavailable

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

SEAL, SPEEDO.CABLE

3280132

Unavailable

20

BOLT(10)

7515378

$1.98

21

WASHER(10)

7555725

Unavailable

21

WASHER(10)

7555725

Unavailable

22

ADAPTER,DRIVE,(1:1.2),ATV Substituted by 3280219

3280128

Unavailable

23

NUT-5/16-18 NYLOK-Y

7542324

$1.49

24

KEY,SPEEDO.DRIVE

3280165

$18.23

25

SEAL,ANGLE DRIVE

3280164

Unavailable

26

BUSHING METAL SPEEDO NOTE: Order part number 5020741 for a screw in bushing.

3280019

$11.99

27

Shaft, Output (See Gearcase Assembly Pg.40, Ref.55)

-------

Unavailable

28

MOUNT, SPEEDOMETER

5410546

Unavailable

29

SPEEDOMETER, ATV

3280129

Unavailable

30

Asm., Master Cylinder, RH (See Controls - RH Master Cylinder/Brake Line Pg.23, Ref 3)

-------

Unavailable

31

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg.21, Ref.5)

-------

Unavailable

32

BOLT,(10)

7512265

$3.99
