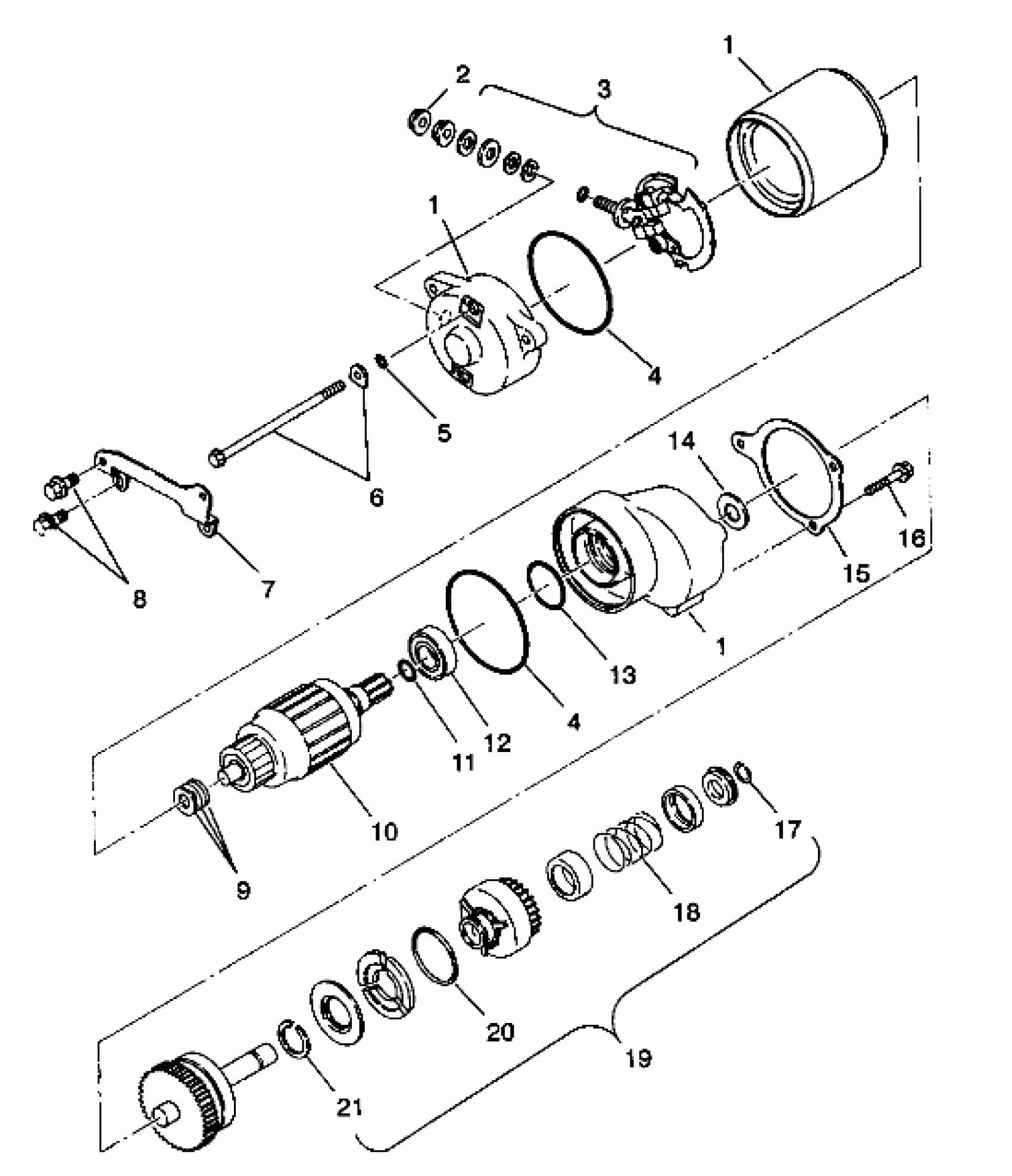

Polaris 350L 6X6 - W938739 STARTING MOTOR 6X6 350L W938739 (4924062406049A) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8, 10, 12, 13, 15, 16)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8, 10, 12, 13, 15, 16)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8, 10, 12, 13, 15, 16)

3084403

Unavailable

2

NUT, FLANGE(10)

3083649

$3.97

3

BRUSH,COMPL.2-POLE *

3084406

$125.46

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

O-RING

3084408

Unavailable

6

Bolt, Through

3084407

Unavailable

7

BRACKET Substituted by 3086780

3084214

Unavailable

8

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.97

9

Washer Set

3083754

$2.38

10

ARMATURE ASM. * (Incl. 11, 12)

3084404

$142.99

11

O RING

3083934

Unavailable

12

BALL BEARING

3083777

$31.75

13

O RING

3083741

$9.37

14

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

15

GASKET

3083835

Unavailable

16

BOLT, FLANGE Substituted by 3086781

3084215

$4.76

17

CLIP

3084409

$7.14

18

SPRING, RETURN

3084410

Unavailable

19

GEAR SHAFT ASM. Substituted by 3085394 (Incl.14, 17-21)

3083647

$271.10

20

SPRING, WEIGHT

3084411

$15.56

21

CLIP

3084412

$9.52
