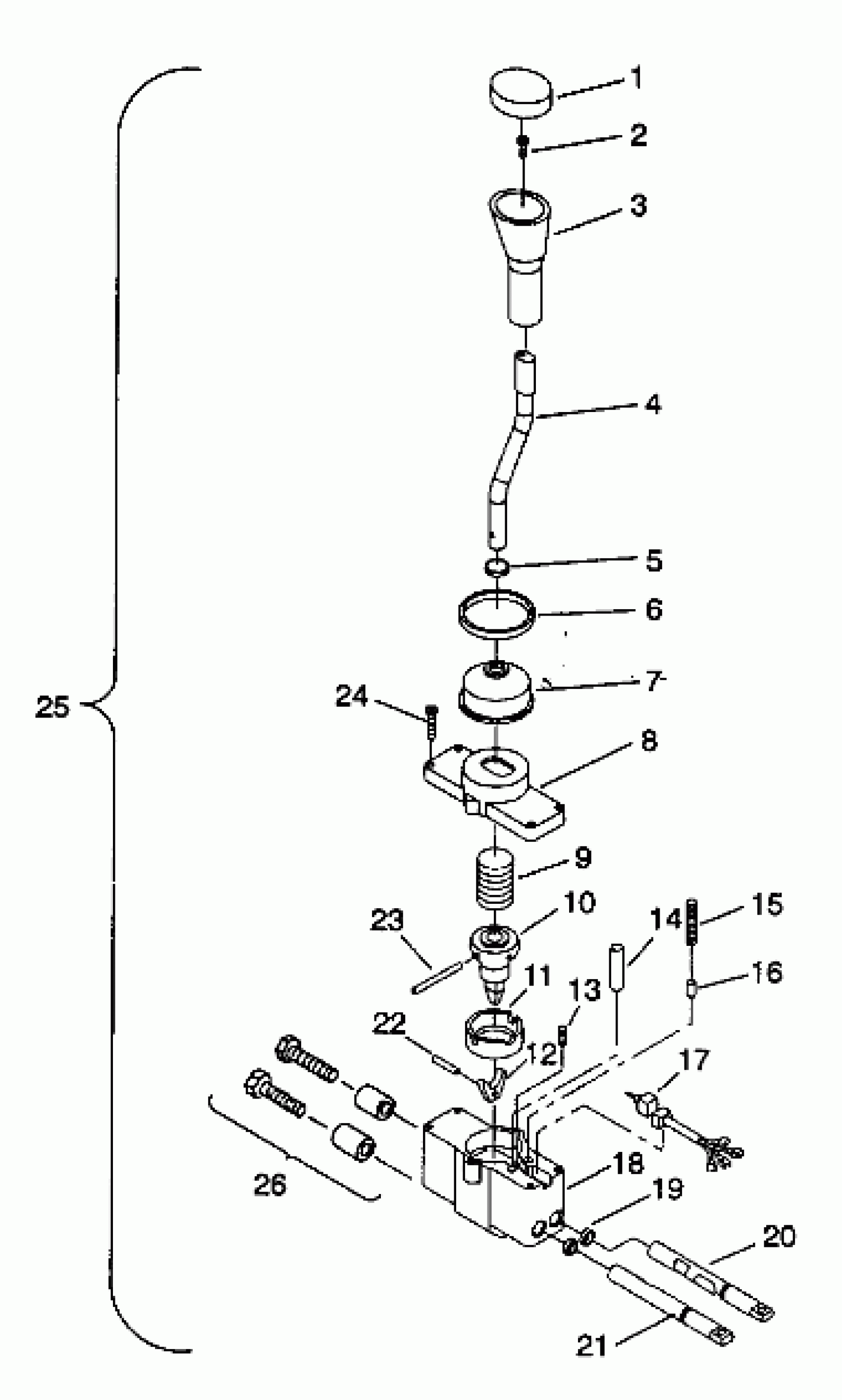

Polaris 350L 6X6 - W938739 SHIFT LINKAGE ASSEMBLY 6X6 350L W938739 (4924062406038A) Diagram

#

Description
Price

1

COVER,SHIFT KNOB

3233078

$6.63

2

SCREW

3233079

Unavailable

3

KNOB,SHIFT

3233077

Unavailable

4

ROD,GEAR SELECTOR

3233066

$30.55

5

STRAP, WIRE

3233073

Unavailable

6

CLAMP,NARROW BAND

3233074

Unavailable

7

BOOT,GEAR SELECTOR Substituted by 3233368

3233075

$74.04

8

COVER,GEAR SELECTOR

3233056

Unavailable

9

SPRING,HOLDING

3233065

$10.71

10

STRIKER Substituted by 3233197

3233061

Unavailable

11

CUP,BEARING

3233063

$15.99

12

INTERLOCK,BUTTERFLY

3233059

Unavailable

13

SPRING,CENTERING

3233058

Unavailable

14

PIN, STOP

3233062

Unavailable

15

SPRING,DETENT

3233069

Unavailable

16

BULLET,DETENT

3233060

$64.99

17

SWITCH,GEAR SELECTOR Substituted by 3233371

3233068

$309.99

18

BODY,GEAR SELECTOR

3233057

$87.19

19

O-RING

3233076

$6.39

20

SLIDE,HIGH/REV.

3233071

$45.59

21

SLIDE,LOW

3233072

$40.79

22

PIN,INTERLOCK

3233070

Unavailable

23

PIN,GROOVE

3233067

Unavailable

24

SCREW Substituted by 3233494

3233064

$1.83

25

SELECTOR ASM,GEAR Substituted by 2200523 (Incl.1-24)

3233080

Unavailable

26

KIT,350-6X6 GEAR SELECTOR CONV. (Incl. Bolts, Spacers & 25) NOTE: You will need to order the Gear Selector Conversion kit when ordering the Gear Selector Assembly for machines with serial numbers 2103

2200523

Unavailable
