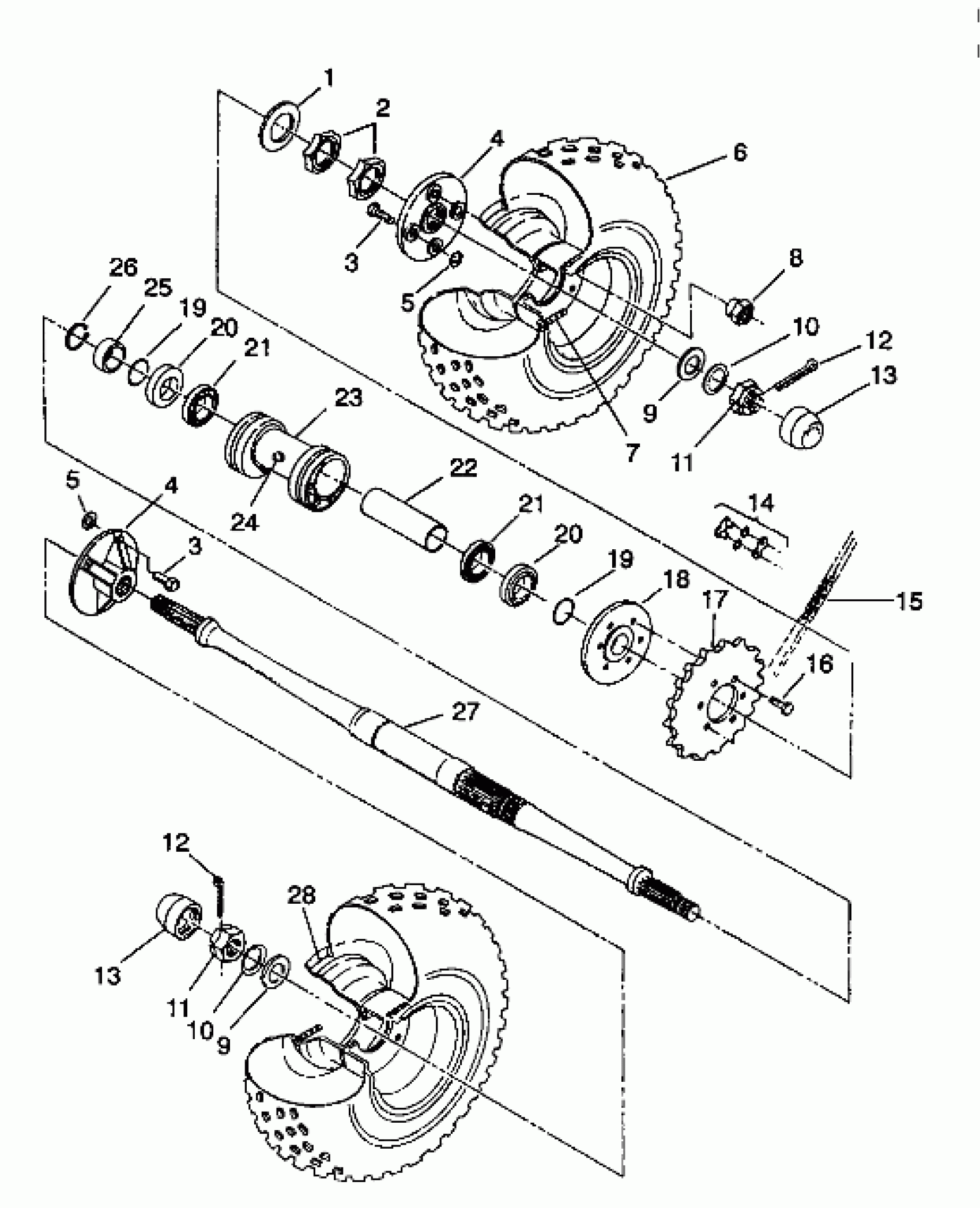

Polaris 350L 6X6 - W938739 REAR WHEEL DRIVE ASSEMBLY 6X6 350L W938739 (4924062406036A) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

KIT, MACH.HUB (Incl.10)

2200341

$93.08

4

KIT, MACH.HUB (Incl.10)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.97

5

PUSHNUT, BOLT(10)

7670081

$3.97

6

TIRE,R(25X12-10) Substituted by 5411408 (25x12-10)

5410566

Unavailable

7

VALVE-RIM

1525017

$6.46

8

NUT, WHEEL(10)

7542714

$1.59

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

WASHER, CONE(10)

7555796

$7.94

10

WASHER, CONE(10)

7555796

$7.94

11

NUT, CASTLE(10)

7543005

Unavailable

11

NUT, CASTLE(10)

7543005

Unavailable

12

PIN, COTTER(10)

7661404

$4.76

12

PIN, COTTER(10)

7661404

$4.76

13

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

13

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

14

CONNECTOR LINK

3225024

$24.27

15

DRIVECHAIN ASM, 116P

3224055

$275.49

16

BOLT(10)

7515488

Unavailable

17

SPROCKET, 30T

3222047

$189.99

18

HUB,SPKT,EXT.BLK. Substituted by 1380026

1380026-067

Unavailable

19

O RING, 1 5/16(10)

5410415

Unavailable

19

O RING, 1 5/16(10)

5410415

Unavailable

20

SEAL, REAR AXLE

3610013

Unavailable

20

SEAL, REAR AXLE

3610013

Unavailable

21

Bearing, Ball

3515501

$27.78

21

Bearing, Ball

3515501

$27.78

22

TUBE,BEARING SPACER

5010204

Unavailable

23

HOUSING, AXLE

5130663

Unavailable

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

25

SPACER,BEARING

5010206

Unavailable

26

RING, SNAP(10)

7710405

$4.76

27

AXLE, REAR

5020504

$239.99

28

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable
