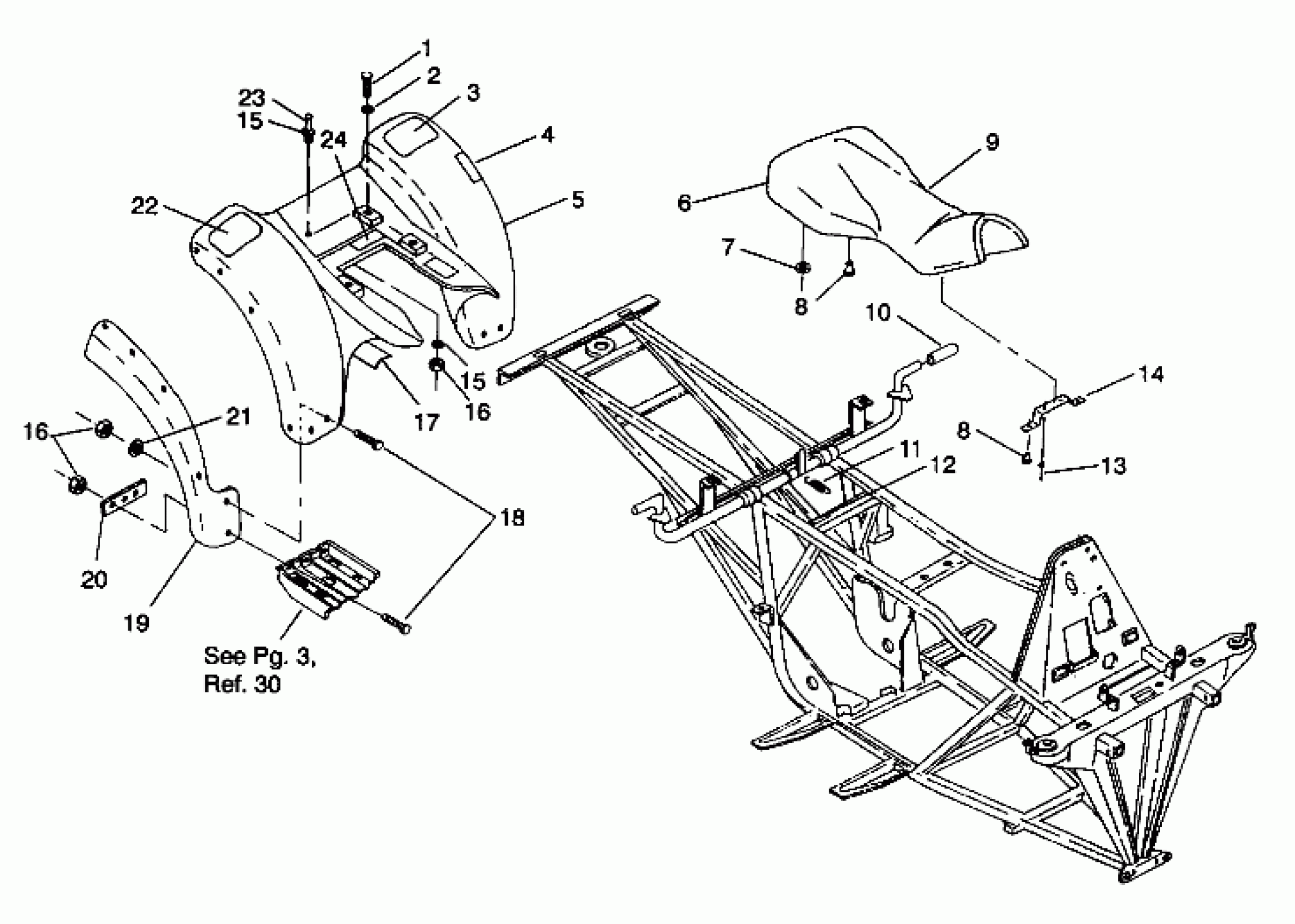

Polaris 350L 6X6 - W938739 REAR CAB ASSEMBLY 6X6 350L W938739 (4924062406002A) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

3

DECAL,LOAD DIST.(350-6X6)

7074109

Unavailable

4

DECAL,TIRE PRESSURE(350-6X6)

7074112

Unavailable

5

CAB,REAR,RED,(LIQ.6WHL) (Incl. 3, 22)

2631557-136

Unavailable

6

COVER,SEAT,STL.GRY.

2681730-132

Unavailable

7

Grommet, Rubber

5410774

Unavailable

8

Bumper, Rubber

5410414

$3.19

8

Bumper, Rubber

5410414

$3.19

9

SEAT ASM,(ATV),STL.GRY. (Incl. 6-8)

2681729-132

Unavailable

10

GRIP

5431097

Unavailable

11

SPRING,LATCH,RETURN

7042032

Unavailable

12

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

13

BLIND RIVET(50)

7621403

$1.49

14

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

15

WASHER(10)

7558301

$1.49

15

WASHER(10)

7558301

$1.49

16

NUT-LOCK(10)

7542122

$1.49

16

NUT-LOCK(10)

7542122

$1.49

17

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

17

TAPE, FOIL

5810424

Unavailable

18

BOLT, BLACK(10)

7512282

$1.49

19

MUDFLAP,LH REAR

5850103

$23.19

19

MUDFLAP,RH,R.LOWER

5850109

Unavailable

20

BRKT, LH MUD FLAP

5211131-067

Unavailable

21

WASHER, FLAT(10)

7555859

$1.49

22

DECAL(CPSC),OPER.WRN. [No Longer Available]

7072715

Unavailable

23

PIN, SEAT LATCH

5020663

Unavailable

24

DECAL,CARB.INFO.

7073761

Unavailable
