GEARCASE ASSEMBLY 6X6 350L / X938739 (49240624060026)

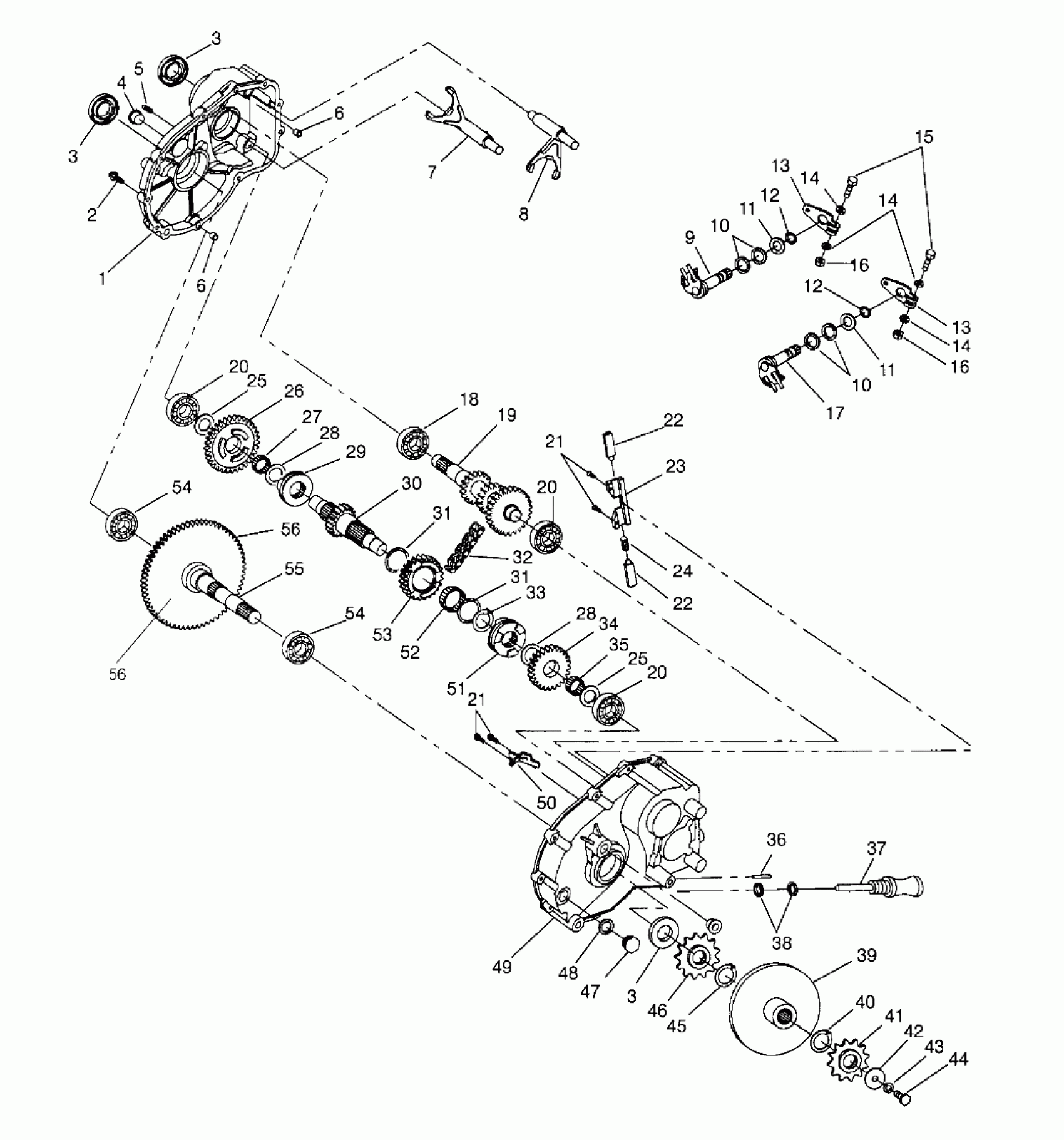

Polaris 350L 6X6 - W938739 GEARCASE ASSEMBLY 6X6 350L / X938739 (49240624060026) Diagram
#
-
GEARCASE ASM, Substituted by 1341123 (Incl. 1 - 55)
3233001
Unavailable
1
CASE, LH
3233002
Unavailable
2
Screw
3233026
$6.46
3
SEAL,OIL Substituted by 3233097
3233027
Unavailable
3
SEAL,OIL Substituted by 3233097
3233027
Unavailable
3
SEAL,OIL Substituted by 3233097
3233027
Unavailable
4
BUSHING,PIVOT
3233024
Unavailable
5
STUD
3233025
Unavailable
6
PIPE, KNOCK
3233021
Unavailable
6
PIPE, KNOCK
3233021
Unavailable
7
SHIFTRAIL,LOW
3233022
Unavailable
8
SHIFTRAIL,HIGH/REV.
3233023
Unavailable
9
SHAFT,LOW SHIFT
3233038
Unavailable
10
O-RING Substituted by 3233548
3233044
Unavailable
10
O-RING Substituted by 3233548
3233044
Unavailable
11
Washer
3233040
$9.59
11
Washer
3233040
$9.59
12
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
12
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
13
BELL,CRANK Substituted by 3233153
3233041
$27.02
13
BELL,CRANK Substituted by 3233153
3233041
$27.02
14
Washer
3233054
$6.46
14
Washer
3233054
$6.46
14
Washer
3233054
$6.46
15
SCREW [No Longer Available]
3233042
Unavailable
16
Nut
3233055
Unavailable
16
Nut
3233055
Unavailable
17
SHAFT,HI/REV,SHIFT
3233039
Unavailable
18
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
19
SHAFT,INPUT
3233004
Unavailable
20
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
20
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
20
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
21
SCREW Substituted by 3233747
3233033
Unavailable
21
SCREW Substituted by 3233747
3233033
Unavailable
22
PIN
3233031
$32.11
22
PIN
3233031
$32.11
23
BRACKET
3233030
$21.43
24
Spring
3233032
$12.94
25
WASHER
3233007
Unavailable
25
WASHER
3233007
Unavailable
26
GEAR, 33T (33T)
3233008
Unavailable
27
BEARING,NEEDLE
3233009
$39.99
28
Washer
3233010
Unavailable
28
Washer
3233010
Unavailable
29
DOG,LOW,ENGAGEMENT
3233011
$74.39
30
SHAFT,REVERSE
3233006
Unavailable
31
WASHER
3233012
Unavailable
31
WASHER
3233012
Unavailable
32
CHAIN,SILENT,34P
3233036
Unavailable
33
RING,RETAINING
3233029
$5.59
34
GEAR, 25T Substituted by 2201315
3233016
Unavailable
35
BEARING,NEEDLE
3233017
$35.99
36
Vent
3233037
Unavailable
37
DIPSTICK Substituted by 3233115
3233034
Unavailable
38
O-RING
3233053
Unavailable
39
DISC,BRAKE,WELD. Substituted by 1910177
1910121
Unavailable
40
RING,RETAINING(10) Substituted by 7710433
3233048
$4.62
41
SPKT, 11T
3221058
$74.99
42
WASHER(10) Substituted by 7555701
3233050
Unavailable
43
WASHER Substituted by 7552901
3233051
Unavailable
44
BOLT Substituted by 7515321
3233052
Unavailable
45
RING,RETAINING(10) Substituted by 7710434
3233047
Unavailable
46
SPROCKET,13T Substituted by 3221041
3233046
$42.46
47
PLUG,OIL DRAIN Substituted by 3233448
3233028
$23.81
48
Washer
3233035
Unavailable
49
CASE, RH
3233003
Unavailable
50
DEFLECTOR,OIL
3233043
$13.19
51
DOG,HI/REV,ENGAGEMENT Substituted by 2201315
3233015
Unavailable
52
BEARING, NEEDLE
3233014
$43.99
53
SPROCKET, 24T Substituted by 2201315
3233013
Unavailable
54
BEARING
3233020
$47.99
54
BEARING
3233020
$47.99
55
SHAFT,OUTPUT
3233005
Unavailable
56
GEAR, 66T
3233092
$238.08
56
GEAR, 66T
3233092
$238.08
