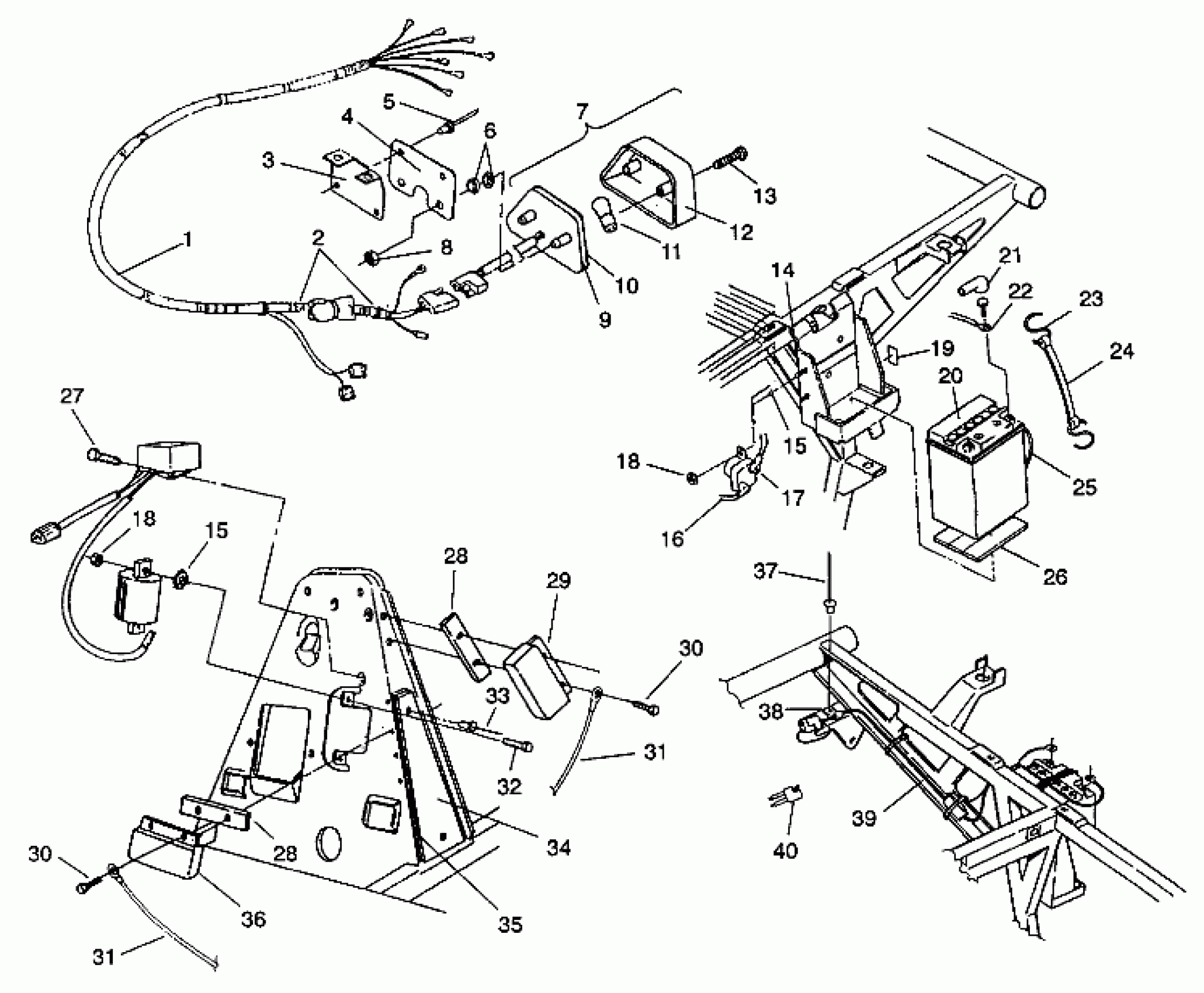

Polaris 350L 6X6 - W938739 ELECTRICAL/TAILLIGHT ASSEMBLY 6X6 350L W938739 (4924062406041A) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE(350-6X6)

2460432

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

BRACKET,T/L MOUNT

5240244-067

Unavailable

4

ISOLATOR,TAILLIGHT

5211391-067

$13.39

5

RIVET(50)

7621470

$3.17

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

7

TAIL LIGHT ASM.

2432034

$55.99

8

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

9

BACKING,TAILLIGHT

4032064

$83.99

10

GASKET,TAILLIGHT

4032045

$4.03

11

BULB,TAILLIGHT

4030043

$6.46

12

LENS,TAILLIGHT

4032046

$32.37

13

Screw, Taillight

4032029

$4.79

14

SCREW(10)

7512027

$1.49

15

WASHER(10)

7571602

$4.79

15

WASHER(10)

7571602

$4.79

16

CABLE,SOLENOID/STARTER

4010064

Unavailable

17

CABLE,SOLENOID-STRTR.

4010075

Unavailable

18

NUT(10)

7541925

$1.49

18

NUT(10)

7541925

$1.49

19

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

20

Battery

4140006

$99.99

21

INSULATOR-CABLE

5410346

$6.39

22

CABLE,BATTERY-SOLENOID

4010076

Unavailable

23

HOOK-BATT.H/D(10)

7010032

$1.59

24

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

25

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

26

PAD-BATTERY

5810290

$7.27

27

BOLT(10)

7512232

$1.49

28

HEAT SINK

5210650

Unavailable

28

HEAT SINK

5210650

Unavailable

29

REGULATOR,LOAD,LR-33

4060102

Unavailable

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

31

WIRE,JUMPER,18 GA.

4010092

Unavailable

31

WIRE,JUMPER,18 GA.

4010092

Unavailable

32

SCREW(10)

7512007

$3.99

33

RIVET, POP(50)

7621322

$0.56

34

BOARD,TERMINAL

4040022

Unavailable

35

SHIELD,TERM.BOARD

5431152

Unavailable

36

LIMITER,REV.SPEED

4060085

Unavailable

37

RIVET,(50)

7621336

$1.59

38

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

39

PIGTAIL, POWER

2460442

$12.39

40

POWERPLUG ASM,12V.

2410023

$28.95
