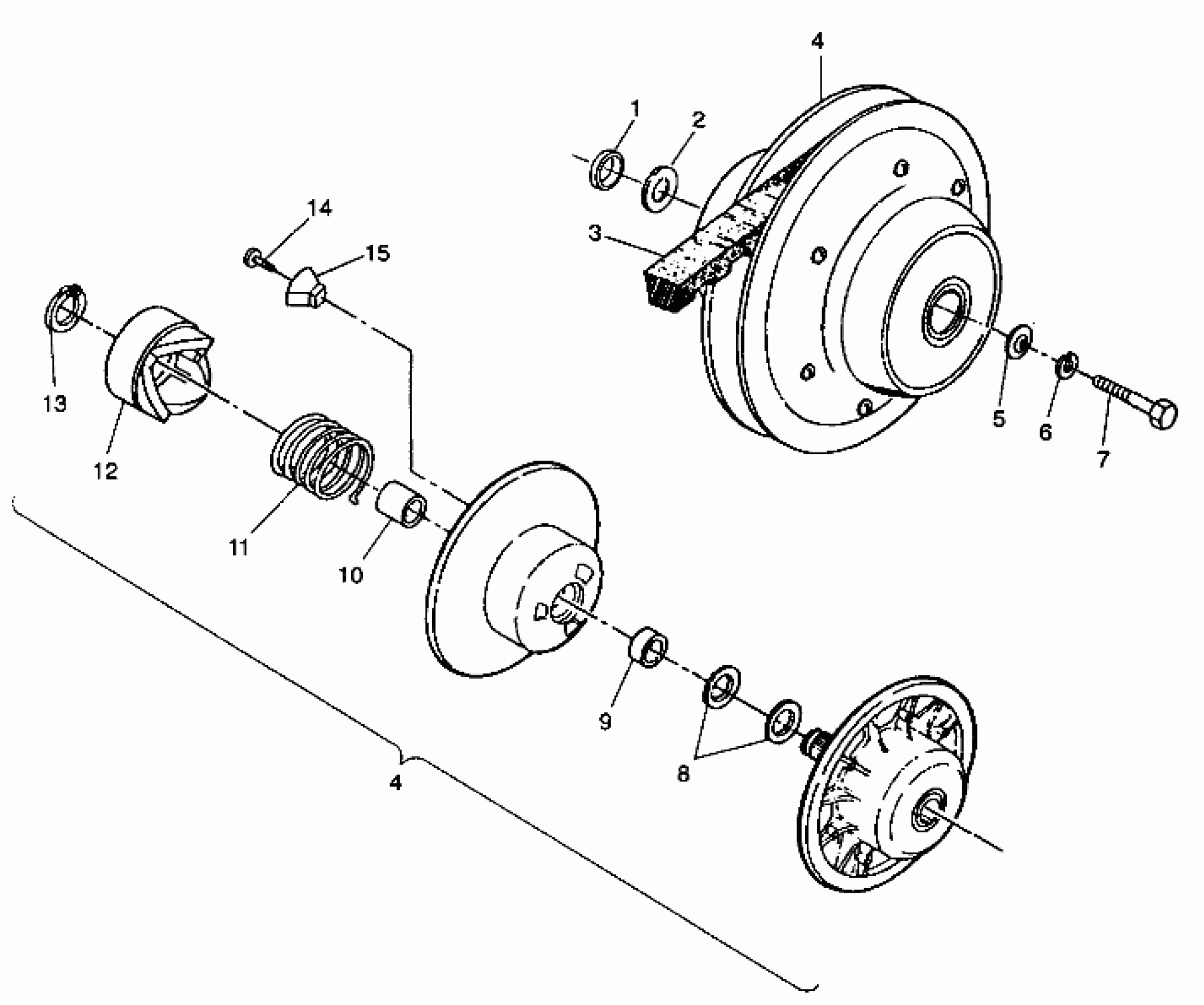

Polaris 350L 6X6 - W938739 DRIVEN CLUTCH ASSEMBLY 6X6 350L W938739 (4924062406032A) Diagram

#

Description
Price

1

SPACER Substituted by 5010379

5010266

Unavailable

2

BUSHING(10)

7556401

Unavailable

3

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

4

CLUTCH, DRIVEN Substituted by 1322180

1322158

Unavailable

4

CLUTCH, DRIVEN Substituted by 1322180

1322158

Unavailable

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

8

WASHER(10)

7556804

$1.49

9

BUSHING, DRIVEN

3576504

$23.99

10

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

11

SPRING,CLUTCH,(RED)

7041198

$52.60

12

RAMP, STATIONARY

5130738

Unavailable

13

RETAINING RING(10)

7714401

$2.63

14

BOLT(10)

7511854

$1.49

15

BUTTON,RAMP

5430766

Unavailable
