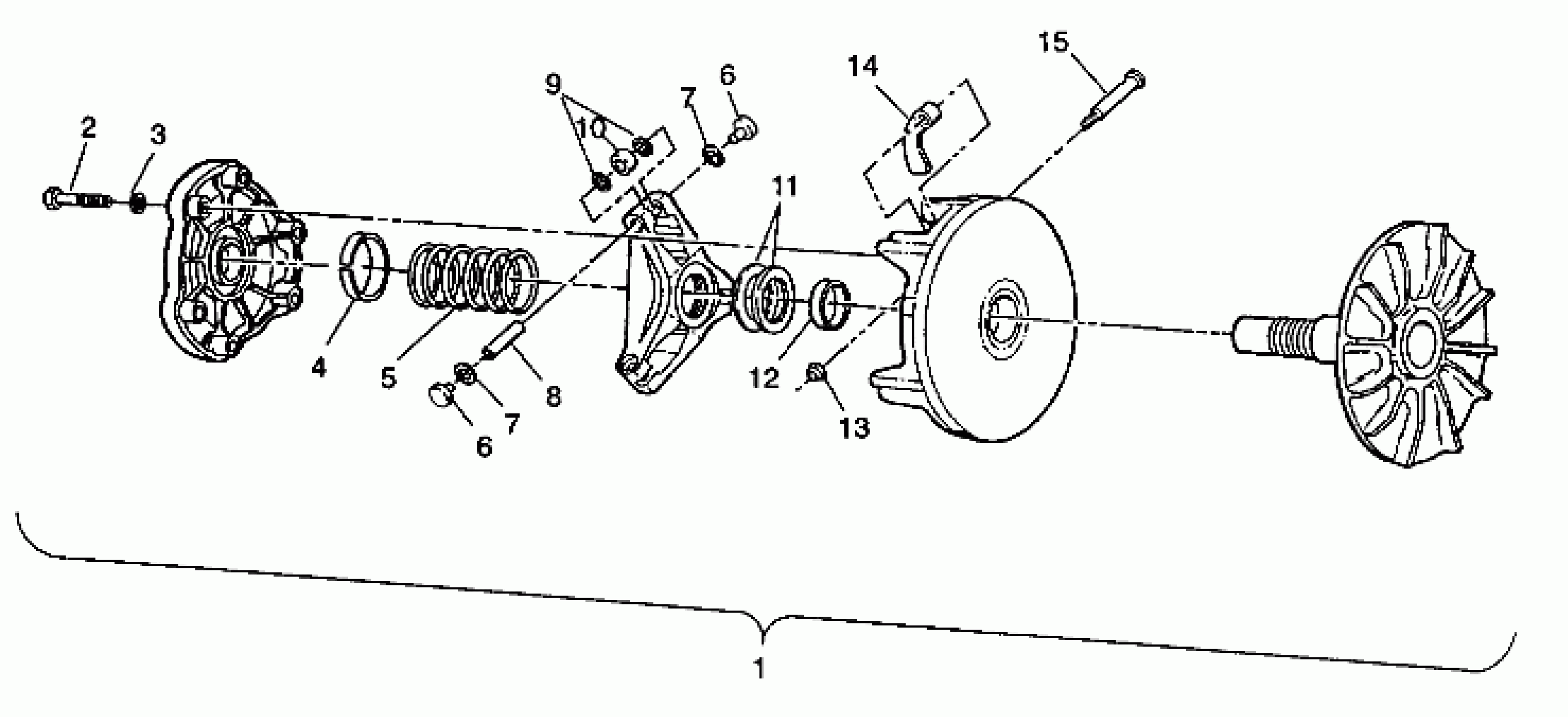

Polaris 350L 6X6 - W938739 DRIVE CLUTCH ASSEMBLY 6X6 350L W938739 (4924062406031A) Diagram

#

Description
Price

1

CLUTCH,DRIVE,ATV-05 Substituted by 1321633 (Less 5, 14)

1321618

$697.13

2

BOLT(10) Substituted by 7512163

7512176

Unavailable

3

LOCK WASHER(10)

7552801

$1.59

4

BEARING, COVER,(10)

3576510

$9.59

5

SPRING,CLUTCH

7041157

$47.99

6

BUTTON,GUIDE

5431688

Unavailable

6

BUTTON,GUIDE

5431688

Unavailable

7

O RING(10)

5410610

$5.59

7

O RING(10)

5410610

$5.59

8

PIN,SPIDER (.950)

5020678

Unavailable

9

WASHER,MULTILUBE

5430945

$1.59

10

ASM-ROLLER AND BUSHING

1321457

$40.46

11

SPACER(10)

5210754

Unavailable

11

SPACER(10)

5210752

Unavailable

11

SPACER(10)

5210753

Unavailable

12

BUSHING, DRIVEN

3576504

$23.99

13

NUT FLEX LOC(10)

7541906

$3.19

14

WT.,CLUTCH,16(6) (16)

5630279

$31.99

15

BOLT,SPECIAL(10)

7512266

$3.19
