CRANKCASE and CYLINDER 6X6 350L W938739 (4924062406043A)

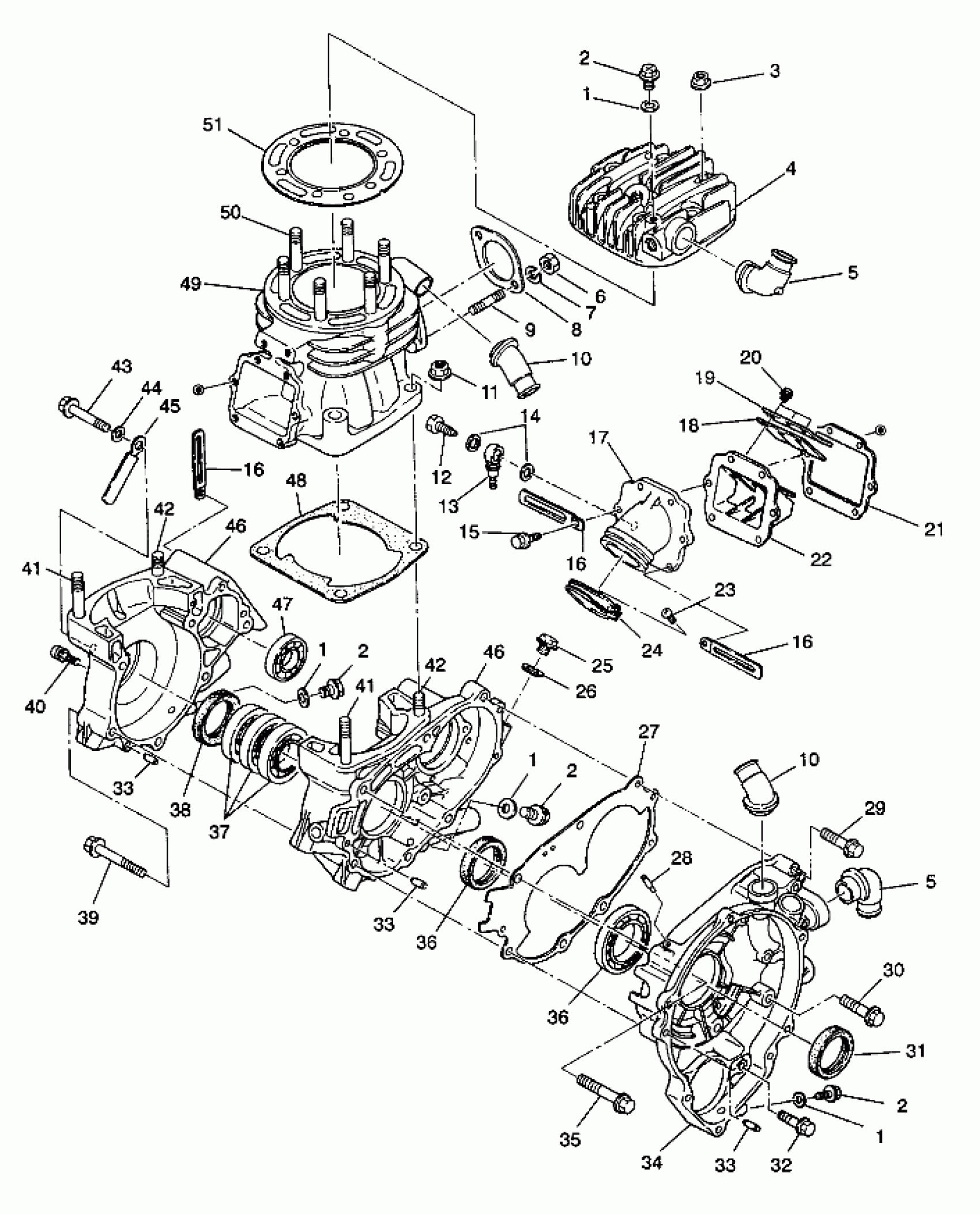

Polaris 350L 6X6 - W938739 CRANKCASE and CYLINDER 6X6 350L W938739 (4924062406043A) Diagram
#
1
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
1
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
1
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
1
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
2
PLUG, DRAIN
3083767
Unavailable
2
PLUG, DRAIN
3083767
Unavailable
2
PLUG, DRAIN
3083767
Unavailable
2
PLUG, DRAIN
3083767
Unavailable
3
NUT-FLANGE(10)
3082910
$2.39
4
HEAD, CYLINDER
3084141
$440.86
5
PIPE, 2 ELBOW Substituted by 3086747 (Elbow)
3084130
Unavailable
5
PIPE, 2 ELBOW Substituted by 3086747 (Elbow)
3084130
Unavailable
6
NUT(10)
3080285
Unavailable
7
WASHER LOCK ,(10)
3080530
$3.19
8
GASKET, EXHAUST
3083770
Unavailable
9
STUD (10)
3080016
$5.75
10
PIPE, 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Unavailable
10
PIPE, 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Unavailable
11
NUT-FLANGE(10)
3082911
$1.99
12
BOLT-BANJO
3083137
Unavailable
13
VALVE, CHECK
3083894
Unavailable
14
WASHER(10) Substituted by 7555998
3083138
Unavailable
15
BOLT, FLANGE Substituted by 3086759 (Adapter)
3084145
Unavailable
16
Clamp
3083590
$3.99
16
Clamp
3083590
$3.99
16
Clamp
3083590
$3.99
17
ADAPTER
3084143
Unavailable
18
VALVE, REED(10)
3240064
Unavailable
19
Stopper
3240065
Unavailable
20
SCREW&WASHER Substituted by 3084565
3240066
Unavailable
21
GASKET, REED VALVE,(10)
3084148
Unavailable
22
VALVE ASM., REED
3084147
Unavailable
23
SCREW,(10)
3081497
$2.39
24
BAND ASM. (Adapter) (Incl.23)
3084144
Unavailable
25
PLUG Substituted by 3086749
3083453
Unavailable
26
GASKET
3082956
$4.84
27
GASKET, CASE 3 (Case 3)
3084133
Unavailable
28
Pipe, Breather
3084128
Unavailable
29
BOLT, FLANGE Substituted by 3086751
3084177
Unavailable
30
BOLT, FLANGE
3084135
Unavailable
31
Seal, Oil
3084120
Unavailable
32
Bolt, Flange
3084126
Unavailable
33
PIN, DOWEL Substituted by 3086838
3080103
$7.14
33
PIN, DOWEL Substituted by 3086838
3080103
$7.14
33
PIN, DOWEL Substituted by 3086838
3080103
$7.14
34
CRANKCASE #3 (Incl. 1, 2, 10, 31, 33, 36)
3084127
Unavailable
35
Bolt, Flange
3084134
Unavailable
36
Bearing, Ball
3084131
Unavailable
36
Bearing, Ball
3084131
Unavailable
37
Bearing, Ball
3084121
$39.99
38
SEAL,OIL
3084122
Unavailable
39
BOLT, FLANGE Substituted by 3086742
3084125
Unavailable
40
SCREW & WASHER(10)
3084205
$3.99
41
Stud
3084118
Unavailable
41
Stud
3084118
Unavailable
42
Stud
3084119
$9.59
42
Stud
3084119
$9.59
43
Bolt, Flange
3084124
$6.23
44
WASHER(10)
3080142
$3.99
45
Clamp
3083384
Unavailable
46
CRANKCASE ASM. (Incl. 32, 34, 36-39, 41-43, 47)
3084117
Unavailable
46
CRANKCASE ASM. (Incl. 32, 34, 36-39, 41-43, 47)
3084117
Unavailable
47
Bearing, Ball
3084123
Unavailable
48
GASKET, CYLINDER
3084140
Unavailable
49
CYLINDER (Incl. 9, 10, 50)
3084137
Unavailable
50
Stud
3084138
Unavailable
51
GASKET,HEAD(350L) * (Head) Non-Asbestos
3084517
Unavailable
