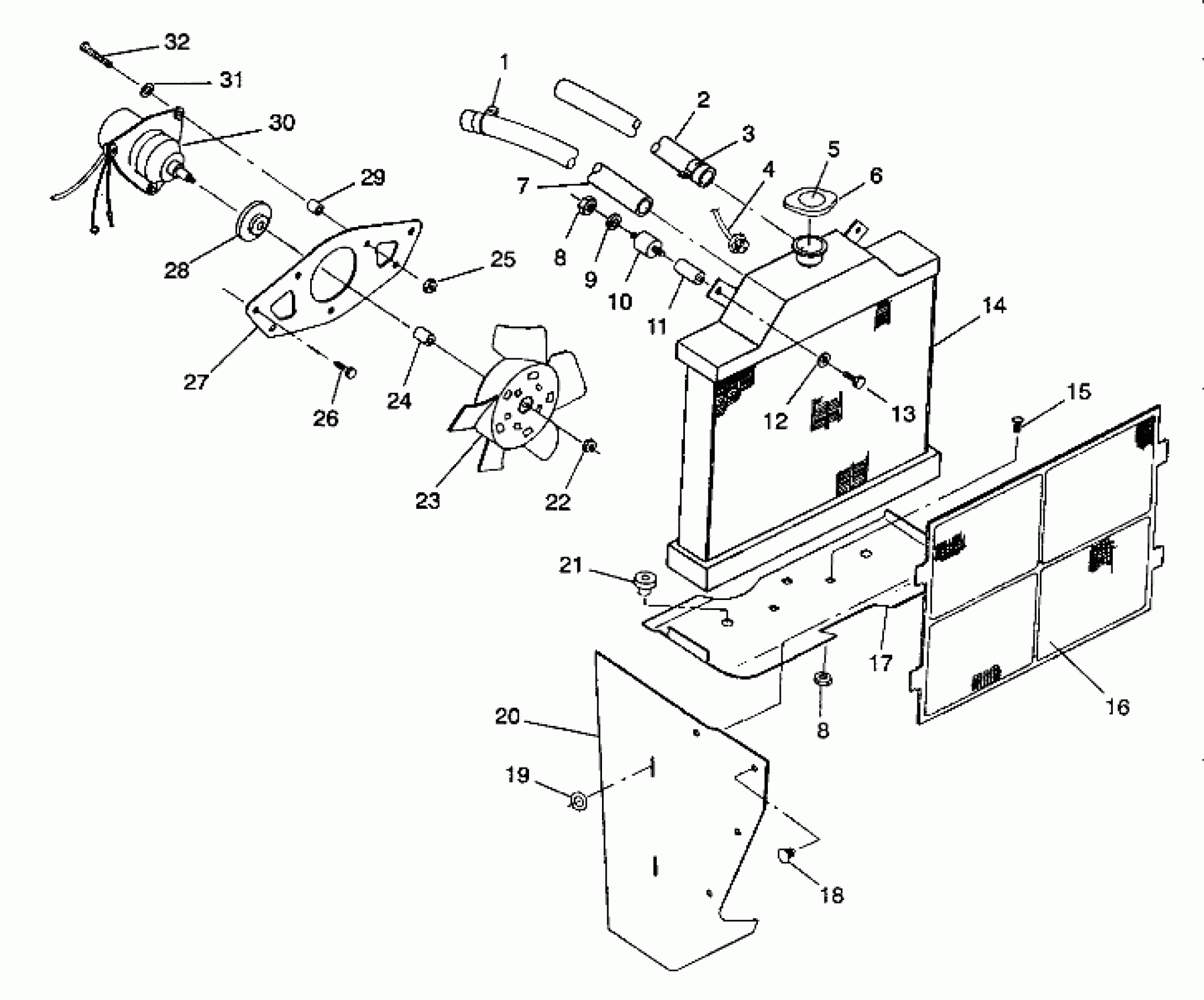

Polaris 350L 6X6 - W938739 COOLING SYSTEM 6X6 350L W938739 (4924062406006A) Diagram

#

Description
Price

1

CLAMP-HOSE,(10) Substituted by 7080475

7080233

$10.32

2

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$88.79

3

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

4

SWITCH,RADIATOR THERMO.

4110099

Unavailable

5

DECAL(CPSC),RAD.CAP

7073068

Unavailable

6

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

7

HOSE,ENG,UPPER

5410570

$44.51

8

NUT-LOCK(10)

7542122

$1.49

8

NUT-LOCK(10)

7542122

$1.49

9

WASHER(10)

7558301

$1.49

10

Mount, Rubber

3110032

$7.99

11

Spacer, Mount

5020572

$8.79

12

WASHER(10)

7552605

$5.27

13

SCREW(10)

7512113

$3.99

14

RADIATOR

1240006

Unavailable

15

BOLT(10)

7512193

$2.39

16

COVER,RADIATOR,W/MESH

5431610

Unavailable

17

GUARD,LOW.RADIATOR

5222547-067

Unavailable

18

CLIP,PLASTIC DART(10)

7670078

$3.19

19

O RING

5410607

$5.99

20

SHIELD,LH RADIATOR

5431188

Unavailable

20

SHIELD,RH RADIATOR

5431189

Unavailable

21

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

22

NUT

3083952

Unavailable

23

BLADE, FAN Substituted by 5240822

5431262

$57.14

24

BUSHING

3083950

Unavailable

25

NUT(10)

7541915

Unavailable

26

SCREW(10)

7512252

Unavailable

27

BRKT,COOLING FAN Substituted by 5224741-067

5222559-067

Unavailable

28

COVER

3083951

Unavailable

29

SPACER, FAN BRKT.

5333073

$3.83

30

MOTOR, FAN Substituted by 4170009

3084266

Unavailable

31

WASHER, FLAT(10)

7558201

$5.79

32

SCREW(10)

7511874

Unavailable
