Partiron

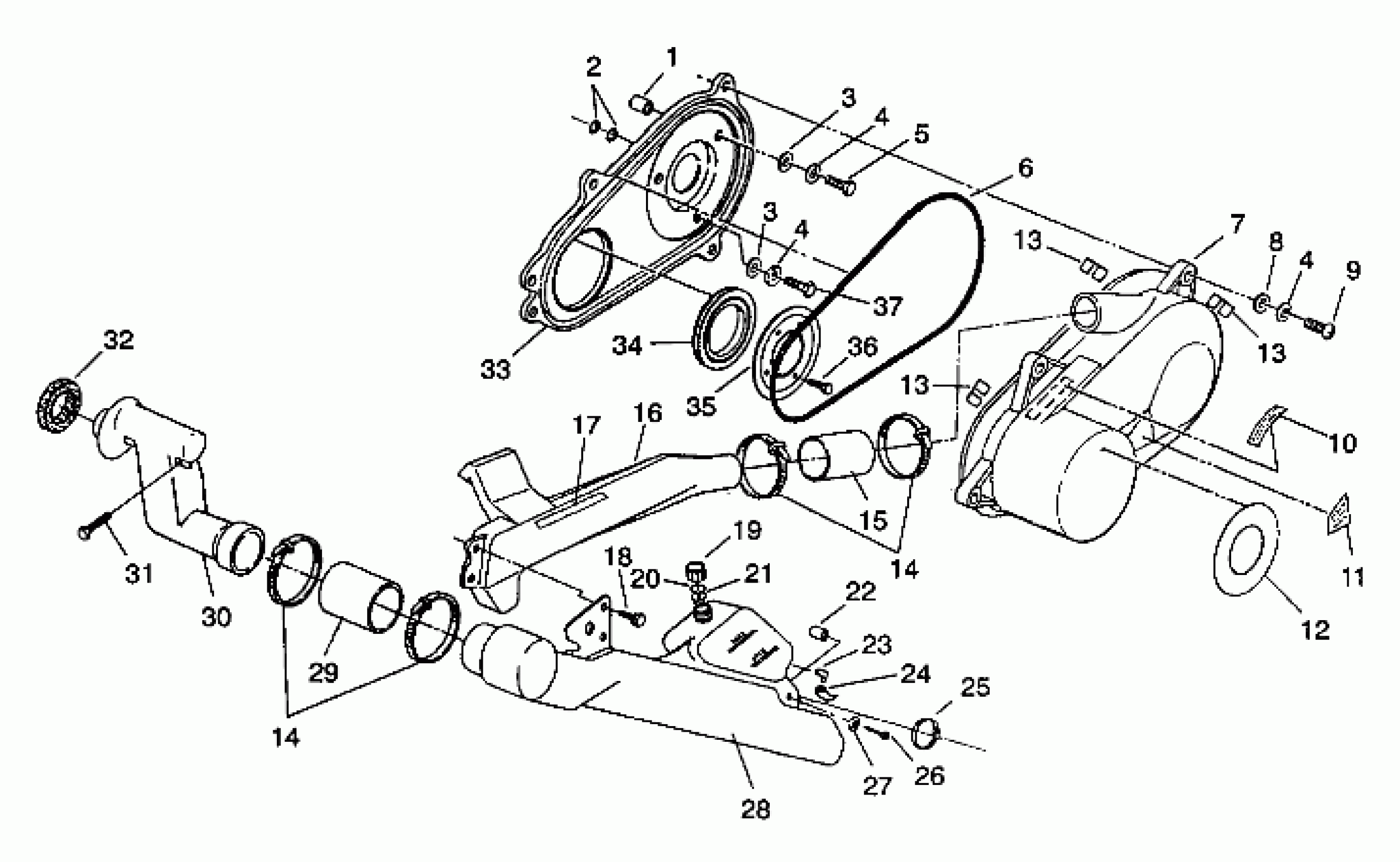

Polaris 350L 6X6 - W938739 CLUTCH COVER ASSEMBLY 6X6 350L W938739 (4924062406030A) Diagram

#

Description
Price

1

SPACER

5333062

Unavailable

2

SEAL,COVER CASE

5410489

$13.59

3

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

WASHER(10)

7552605

$5.27

4

WASHER(10)

7552605

$5.27

4

WASHER(10)

7552605

$5.27

5

BOLT(10)

7512277

$4.79

6

SEAL,CLUTCHCOVER

5521301

$30.88

7

COVER, CLUTCH,FRONT

5430771

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

BOLT(10)

7512281

$3.99

10

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL, PVT [No Longer Available]

7072386

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

$2.99

13

CLIP,CLUTCH COVER(10)

7670051

$2.99

13

CLIP,CLUTCH COVER(10)

7670051

$2.99

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.19

16

DUCT, AIR OUTLET

5431010

Unavailable

17

DECAL,'DEMAND-DRIVE'

7073454

Unavailable

18

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

19

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

20

GASKET-OVERFLOW CAP

5810279

$2.41

21

PLUG, OVERFLOW,(10)

5431096

$2.02

22

SPACER

5020577

Unavailable

23

FITTING,90 DEGREE

7052065

$7.19

24

FUEL LINE-68 CENTIMETERS

8450003-68

Unavailable

25

CLAMP, NARROW BAND(10)

7080511

$4.79

26

SCREW(10)

7512025

$4.79

27

WASHER(10)

7555783

$3.99

28

DOWNTUBE,DUAL INLET Substituted by 5432336

5431185

$119.68

29

BOOT, INTAKE

5410509

$7.99

30

DUCT, INLET, TOP

5431261

$49.59

31

SCREW(10)

7512017

$4.79

32

SEAL, INTAKE

5810480

Unavailable

33

COVER&SEAL ASM,REAR [No Longer Available]

2620062

Unavailable

34

Seal, Cover Case

5410575

Unavailable

35

BRKT,RETAINER,SEAL

5222446-067

Unavailable

36

SCREW & WASHER(10)

3084205

$3.99

37

BOLT(10)

7512278

Unavailable
