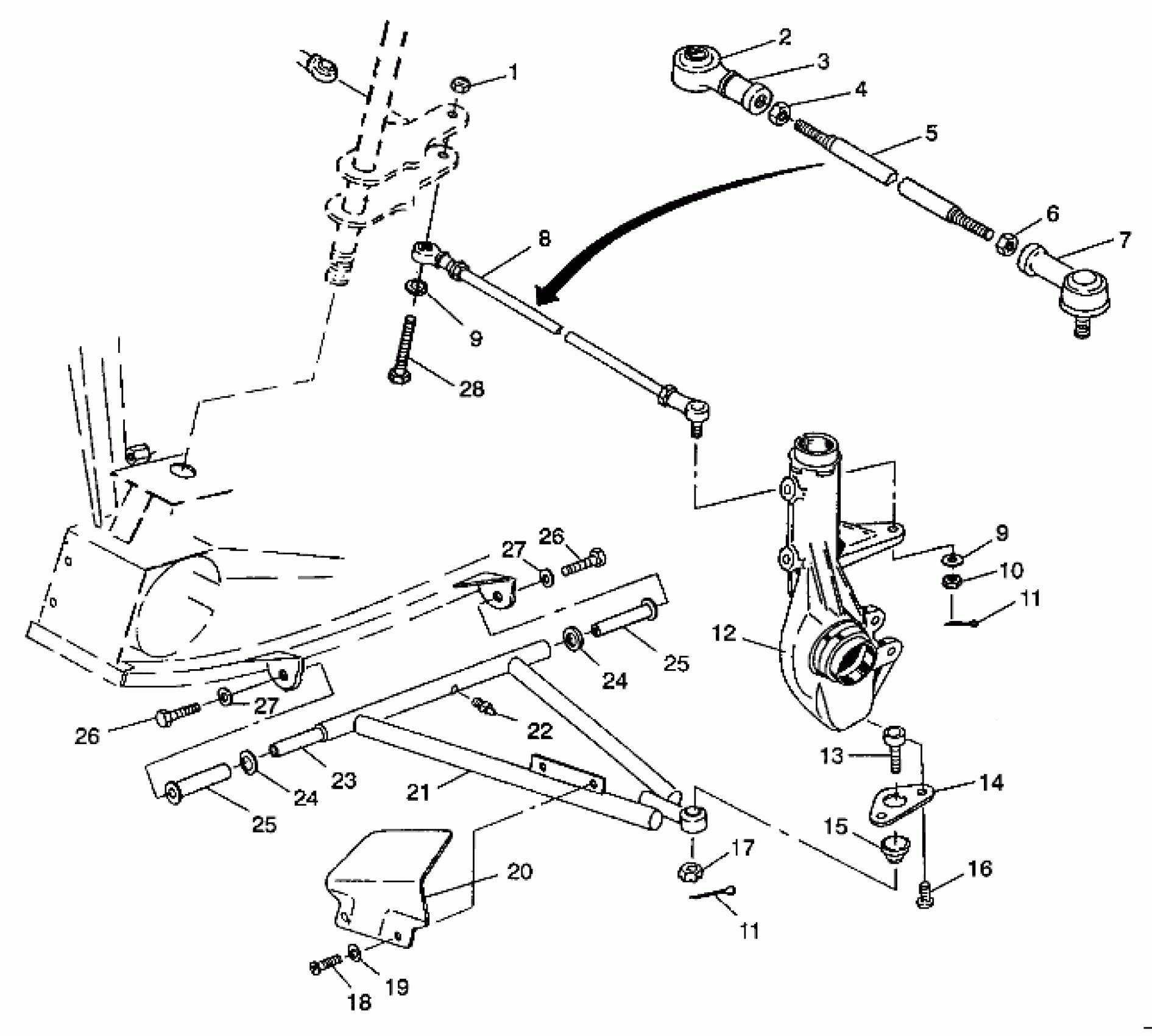

Polaris 350L 6X6 - W938739 A-ARM/STRUT MOUNTING 6X6 350L W938739 (4924062406020A) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BOOT, SEAL, ROD END

5410540

$7.19

3

ROD END, RH Substituted by 1822179

7060149

Unavailable

4

NUT HEX(10)

7542401

$2.39

5

TIE ROD

5020528

Unavailable

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END

7060147

$56.65

8

TIE ROD ASM. Substituted by 1822310

1822081

Unavailable

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

10

NUT, CASTLE(10)

7546904

$4.79

11

PIN COTTER(10)

7661203

$1.49

11

PIN COTTER(10)

7661203

$1.49

12

Asm., Hub Strut, RH (See Front Strut Asm. Pg., Ref.15)

-------

Unavailable

12

Asm., Hub Strut, LH (See Front Strut Asm. Pg., Ref.15)

-------

Unavailable

13

BALL JOINT Substituted by 7080673

7080364

Unavailable

14

BRACKET-BALL JOINT

5211121

$31.99

15

Boot, Rubber

5410548

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

SCREW(10)

7512017

$4.79

19

WASHER(10)

7555792

$4.79

20

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

20

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

21

A-FRAME,LH,BLK(350-6X6,93) Substituted by 2200483

1580068-067

$113.32

21

A-FRAME,RH,BLK(350-6X6,93) Substituted by 2200484

1580069-067

$109.11

22

ZERK,FITTING,THREADED(10)

7080433

$1.49

23

Shaft, A-Arm

5020681

Unavailable

24

BUSHING,A-ARM SPACER(10)

5020677

$10.39

24

BUSHING,A-ARM SPACER(10)

5020677

$10.39

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

26

BOLT(10) Substituted by 7512492

7515458

Unavailable

26

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

WASHER(10)

7552603

$1.49

27

WASHER(10)

7552603

$1.49

28

KIT,A-FRAME,LH (Incl.21, 22, 24-27)

2200483

$113.32

28

KIT,A-FRAME,RH (Incl.21, 22, 24-27)

2200484

$109.11

28

BOLT(10) Substituted by 7515554

7515507

Unavailable
